SKU: X2-20-WHT

X2-Series LED Light Bar - 20" - White Housing

Sale price$529.95

Size: 20"
Housing Color: White
Bar Design: Straight
In stock

X2-Series LED Light Bar!    The Best Light Bar for Center Console Boats & Air Boats!  Isolated Dissimilar Metals. Amazing Beam Pattern with Minimum Reflection on Bow. Pressed Fit Assembly = Less Fasteners. Extended Power Wire for Easy Installation.

FEATURES

  • Optimal Beam Pattern to Reduce Bow Reflection
  • Integrated Temperature Control System (TCS)
  • Combination Beam Pattern
  • 16,800 Lumens
  • 40 X 5W OSRAM CSHP LEDS
  • 200W MAX
  • 8.6A @ 12VDC  /  4.2A @ 24VDC
  • 9~32VDC Input
  • IP67 Rated
  • High Lux - High Output
  • Durable Scratch Resistant High Impact Polycarbonate Lens
  • 9FT Power Wire
  • 6000K (Cool White)
  • New Design to Improve Aerodynamics (Noise Reducers are Not Required)
  • Chrome Coated Stainless Hardware to Eliminate Dissimilar Metal
  • Max Distance 5,938FT
  • Blacked Out Design
  • Extruded 6063 Aluminum Body
  • 50,000 Hours or 5 Years of Continuous Use
  • Over / Under and Reverse Polarity Protection
  • VHF and AIS Safe
  • Protected Against Electromagnetic (EMC) & Radio Frequency Interference (RFI)
  • Operating Temp: -40°F- +145°F
  • MIL810-STD 8.6G Vibration Compliant



INCLUDES

  • (2) Chrome Coated Mounting Brackets
  • Chrome Coated Stainless Steel Hardware
  • Copper Tinned Marine Grade Extended Power Wire - 9ft

DIMENSIONS

X2 Series Light Bar Dimensions

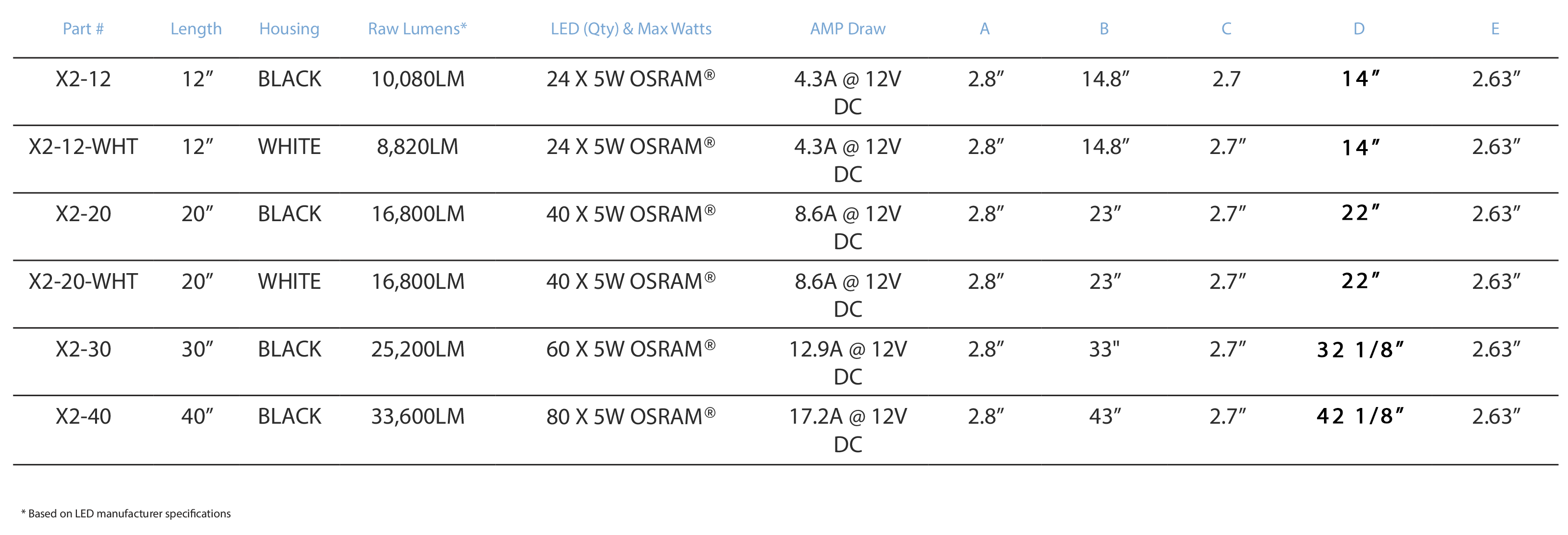

X2 Series Light Bar Dimensions Table



X2-Series 20" Beam Pattern

PRODUCT SPECIFICATION SHEETS
