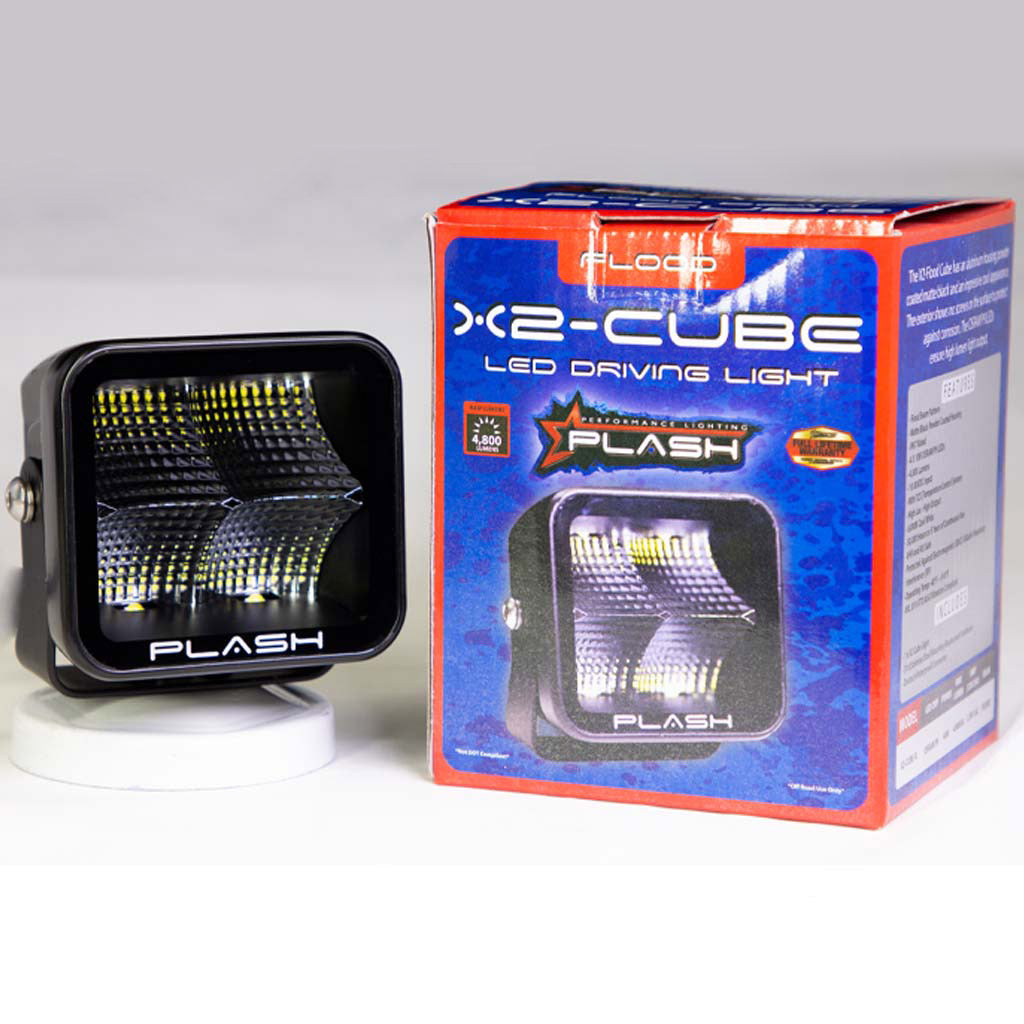

X2-CUBE-FL

X2 Cube - 40W - 160° Flood

Quantity

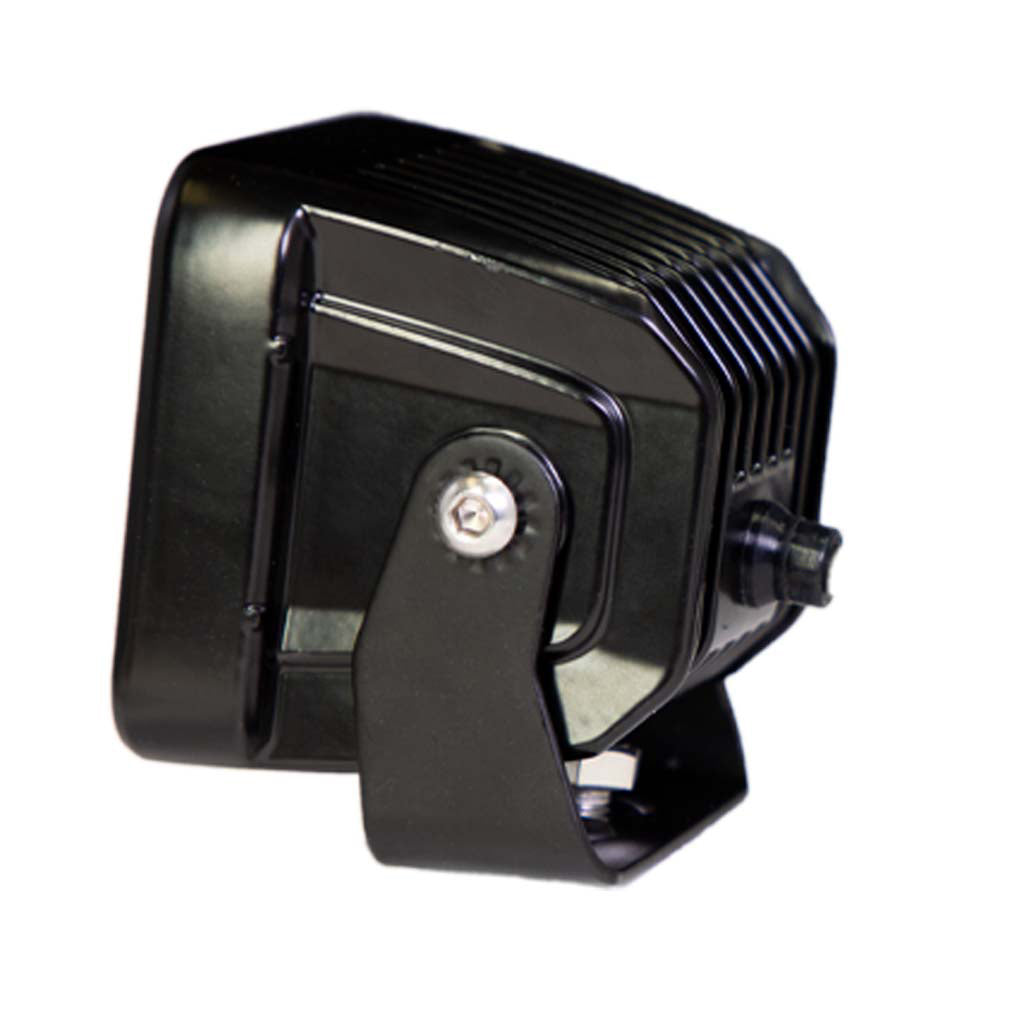

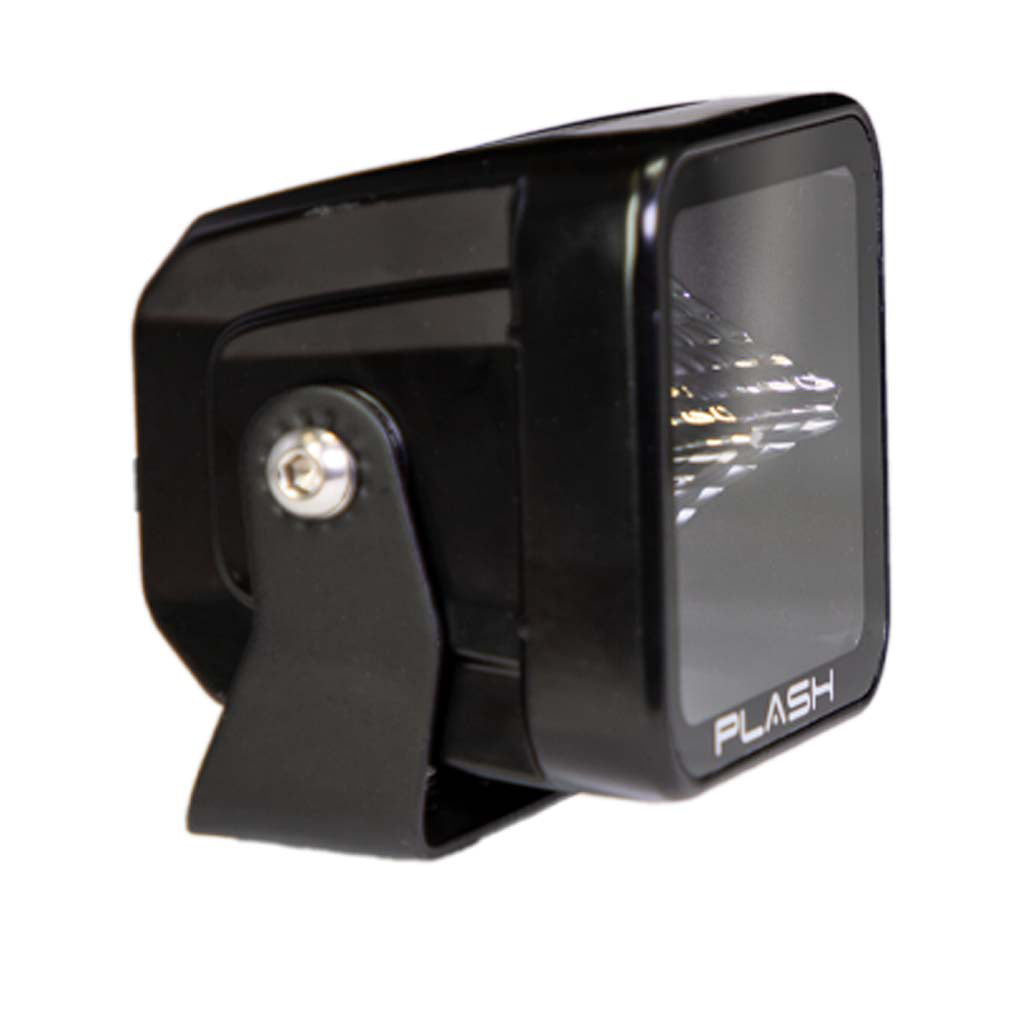

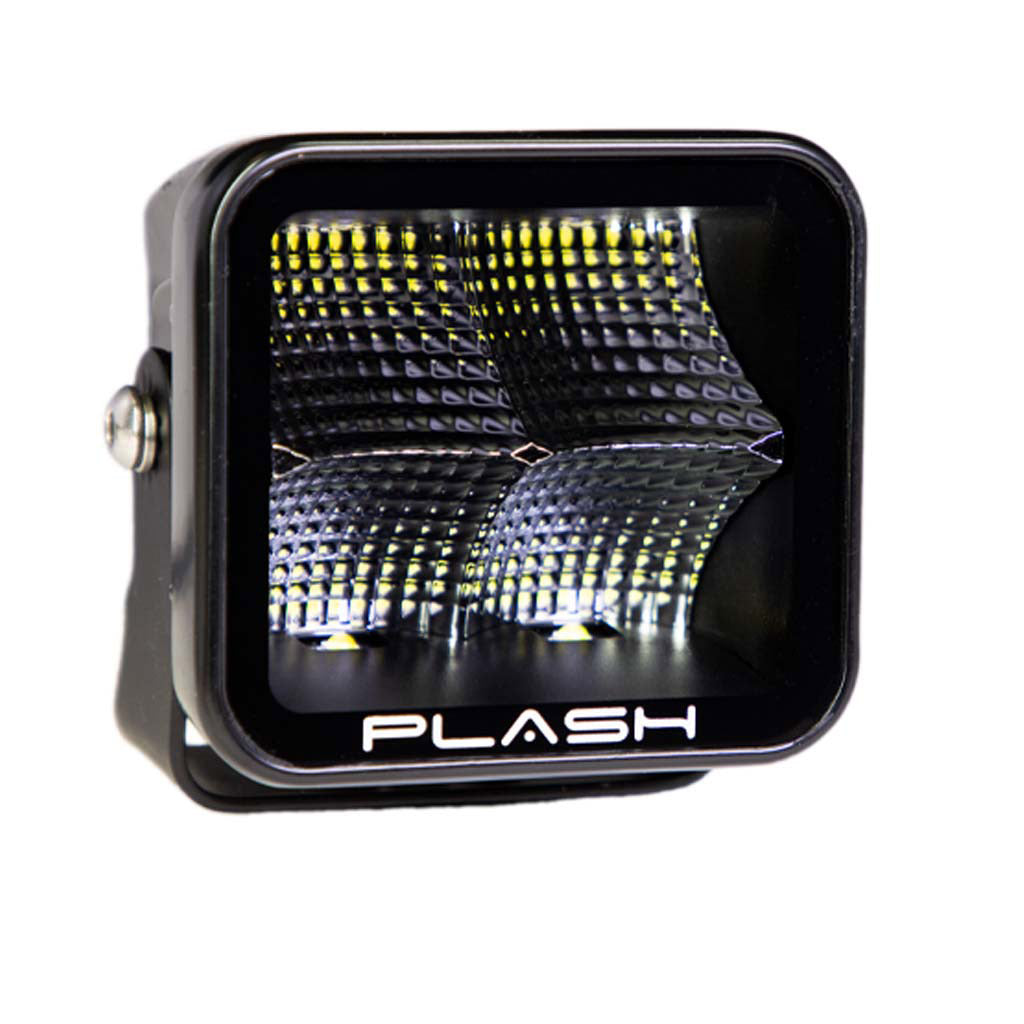

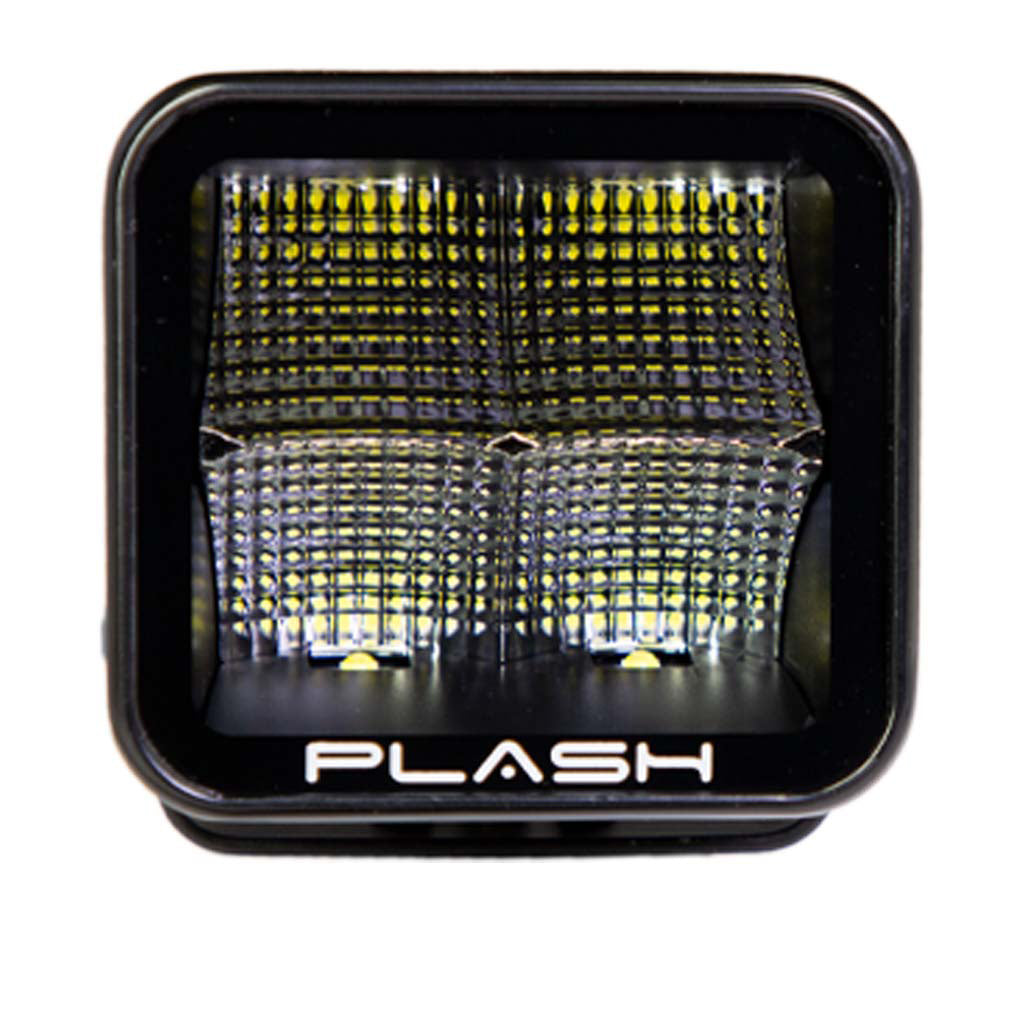

The X2-Cube with the wide 160° flood beam and a matte black powder coated housing has a unique and impressive appearance. The exterior shows no screws on the surface to protect against corrosion as this light housing is cast monolithically as one unit.  This also prevents moisture intrusion over time with the potential loosening of bolts that may occur in other two-part lights. The OSRAM P9 LEDs ensure high lumen performance and the textured reflector being used as the light diffuser is much higher in efficiency when compared to a diffused lens. This wide flood beam is perfect as a work or rear light for SXS's, tractors, heavy equipment, etc.  This light is also ideal as a spreader light.

FEATURES:

  • Wide 160° Flood Beam Pattern
  • Matte Black Powder Coated Housing
  • IP67 Rated
  • 4 X 10W OSRAM P9 LEDs
  • 4,800 Lumens  (each)
  • High Lux - High Output
  • 6,000K Cool White
  • 50,000 hours or 5 years of continuous use
  • Max Distance 348 ft
  • Blacked Out Design
  • VHF and AIS Safe
  • Protected Against Electromagnetic (EMC) & Radio Frequency Interference (RFI)
  • Operating Temp: -40°F- +145°F
  • MIL810-STD 8.6G Vibration Compliant
  • Dual Leg Wiring Harness(Included with the Pair only - Single light has no wiring harness)


INCLUDES:

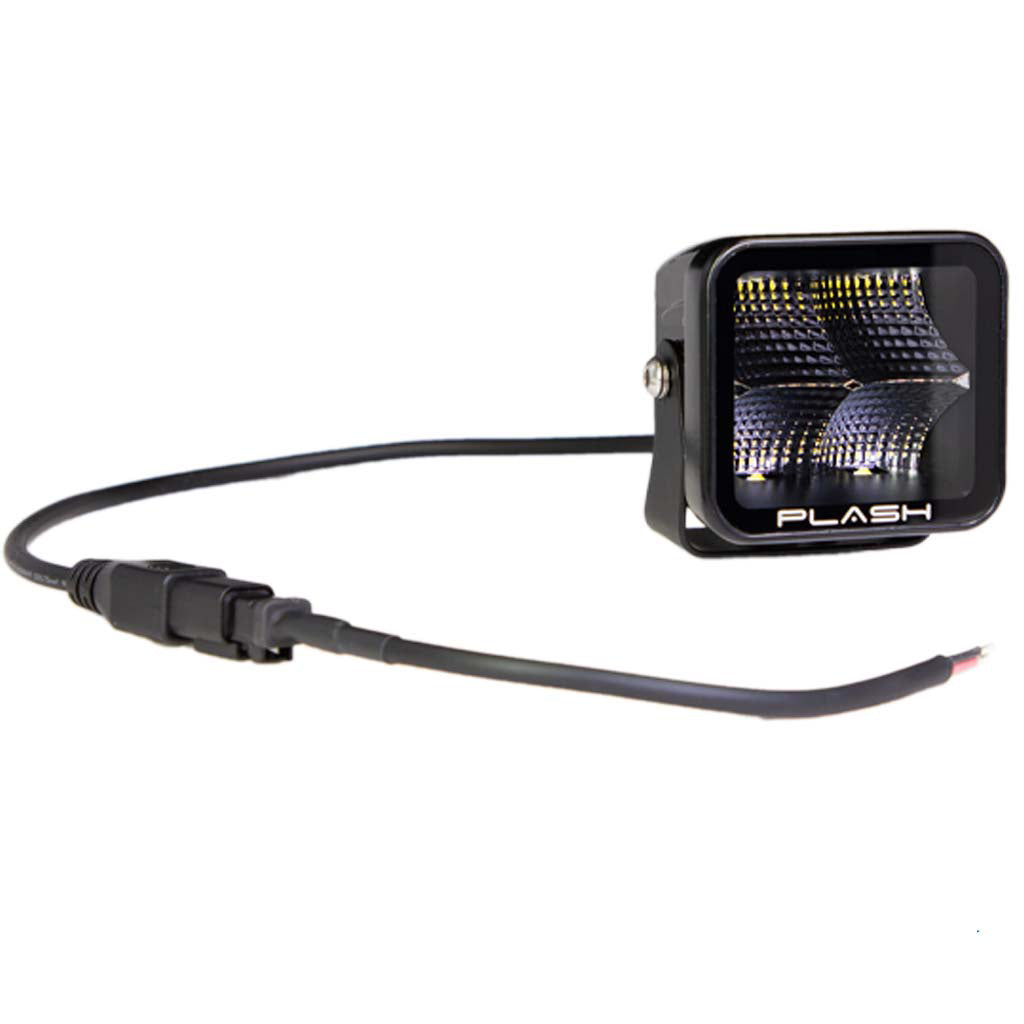

SINGLE LIGHT:

- (1) Cube Light with Bracket
- Mounting Hardware
- Deutsch Connector
- (1) Male Pigtail

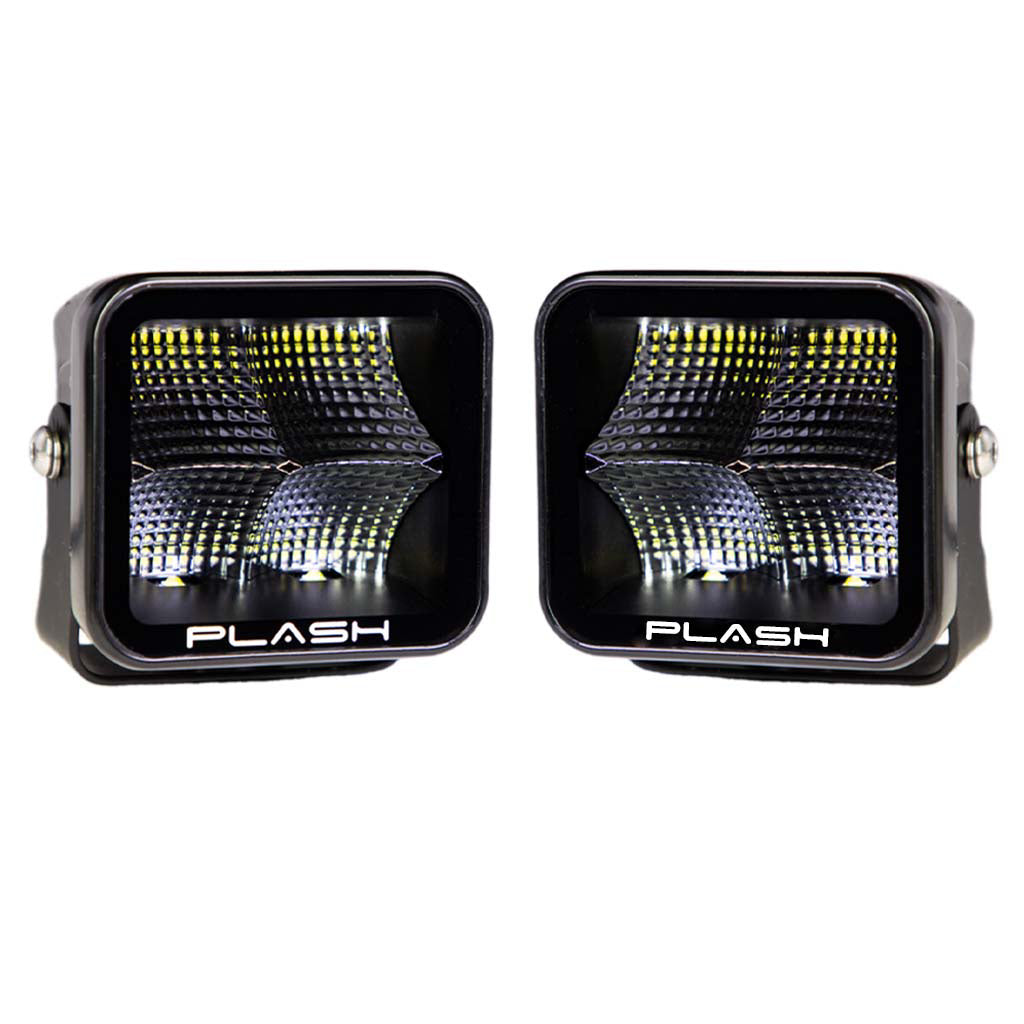

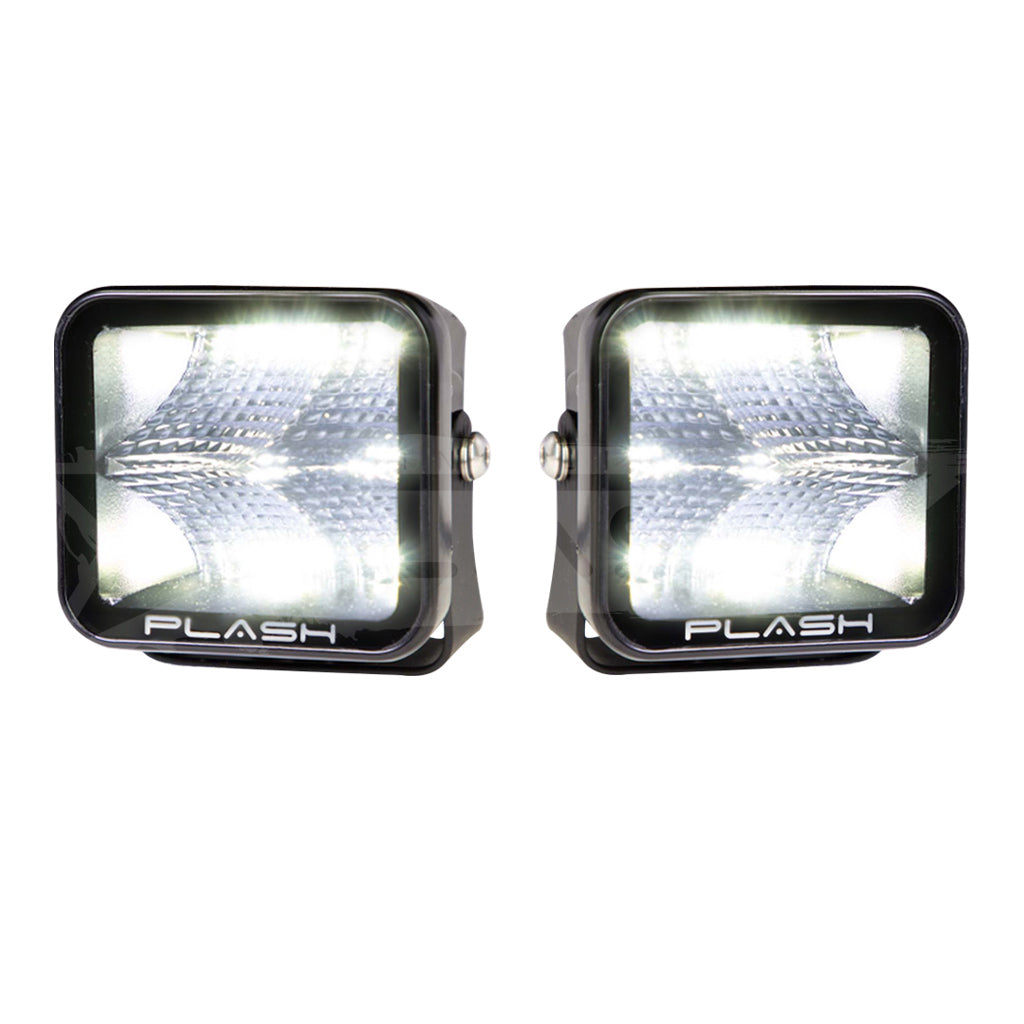

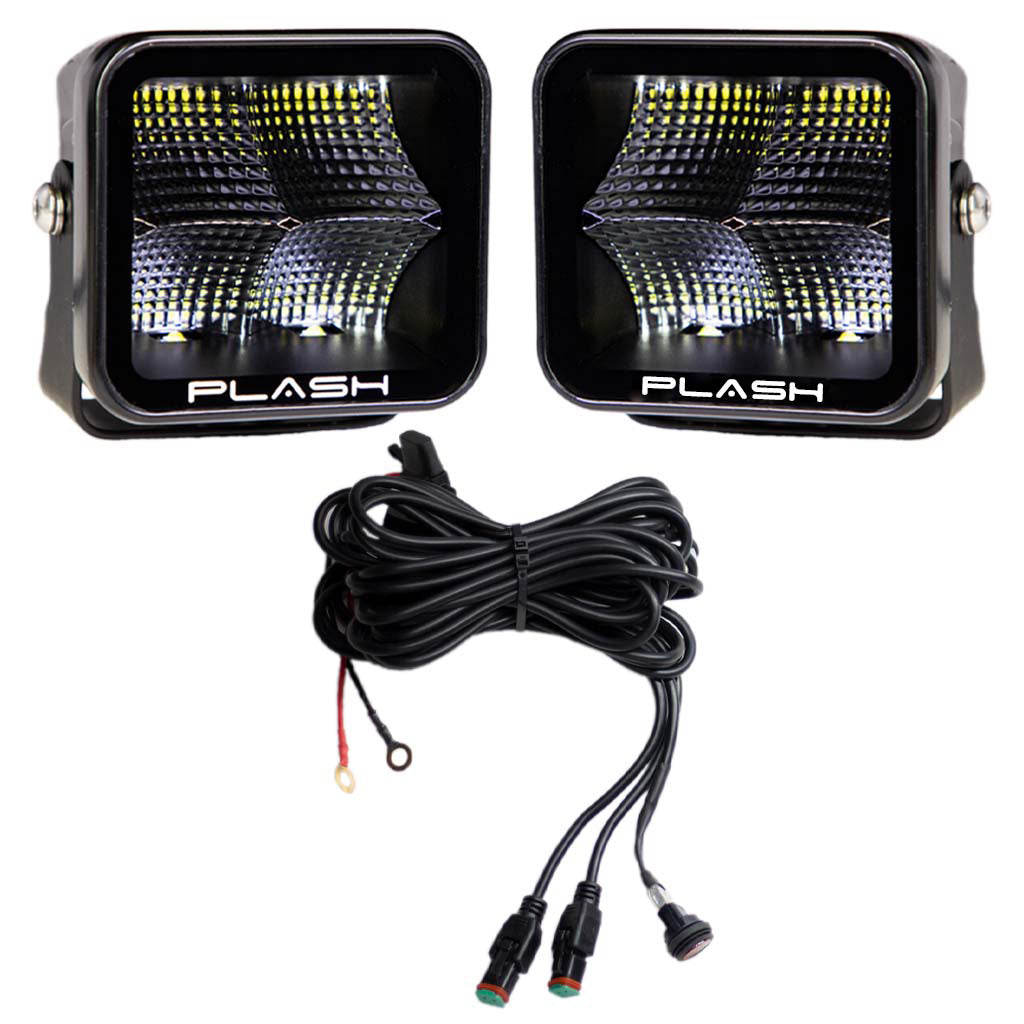

PAIR:

- (2) Cube Lights with Brackets
- Mounting Hardware
- Deutsch Connector on each light
- (2) Male Pigtails + Dual Leg Wiring Harness w/ switch, relay, inline waterproof fuse





SPECIFICATIONS:

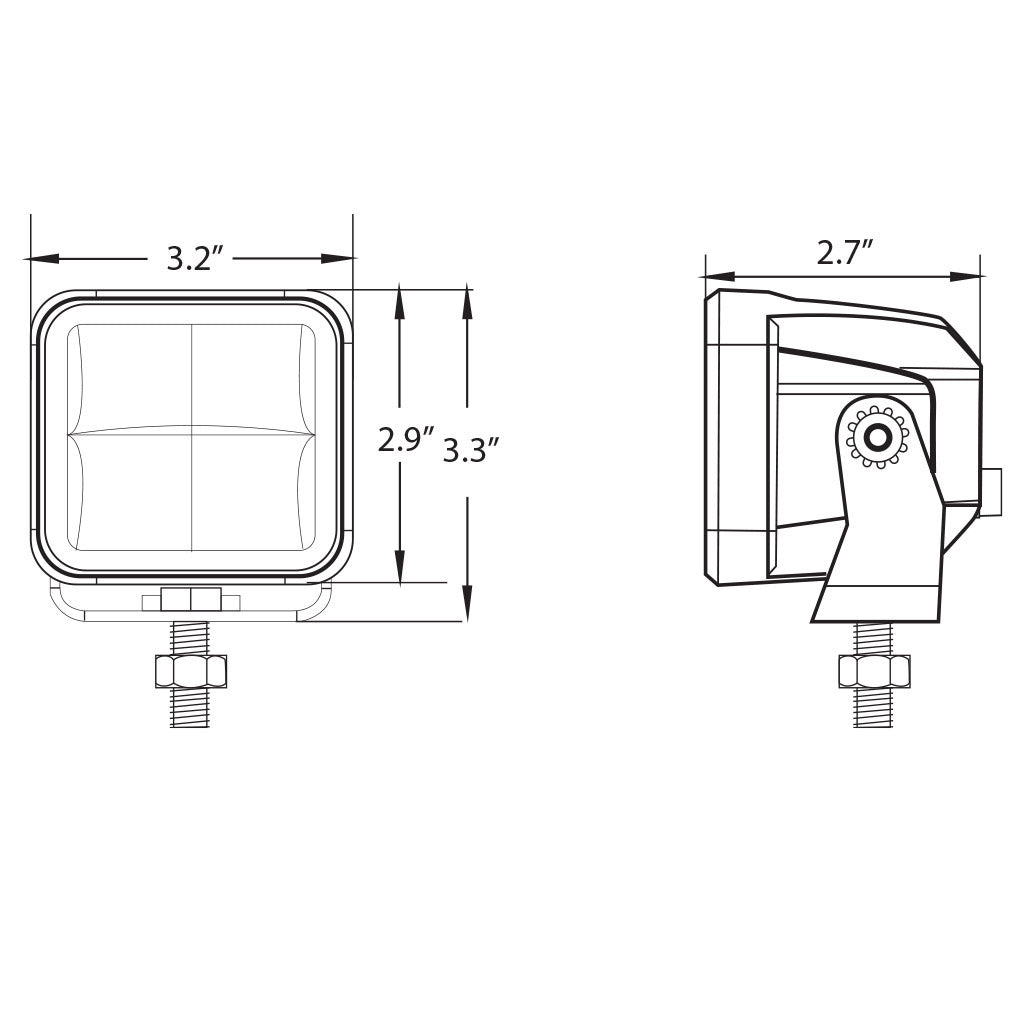

DIMENSIONS:



BEAM PATTERN - FLOOD BEAM:
