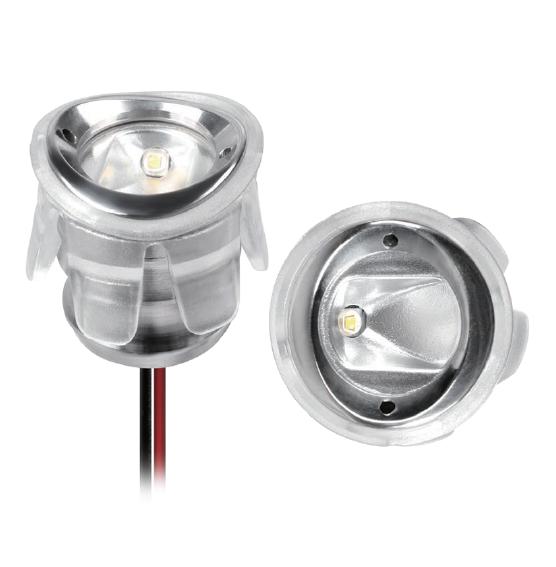

LED Handrail Light

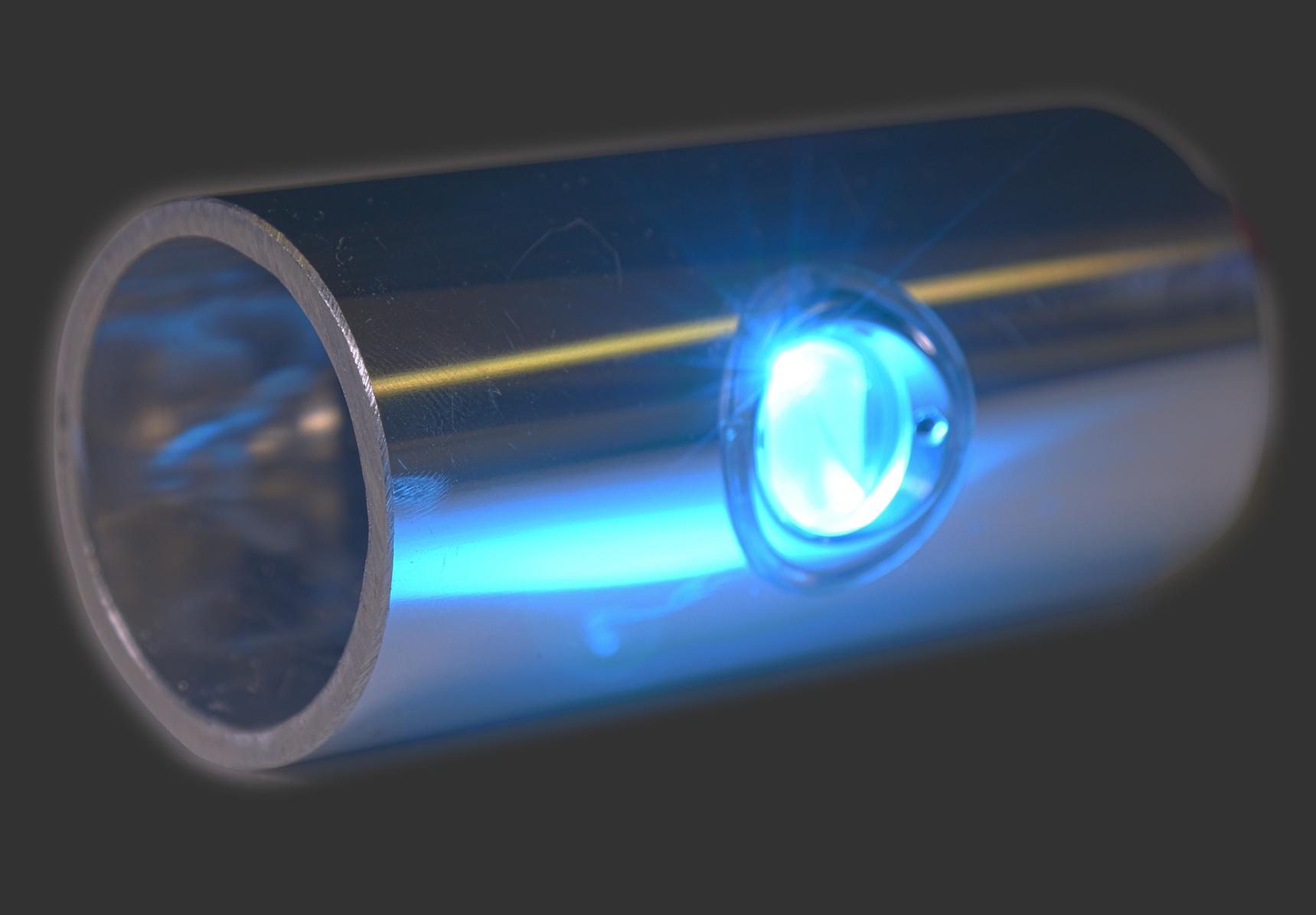

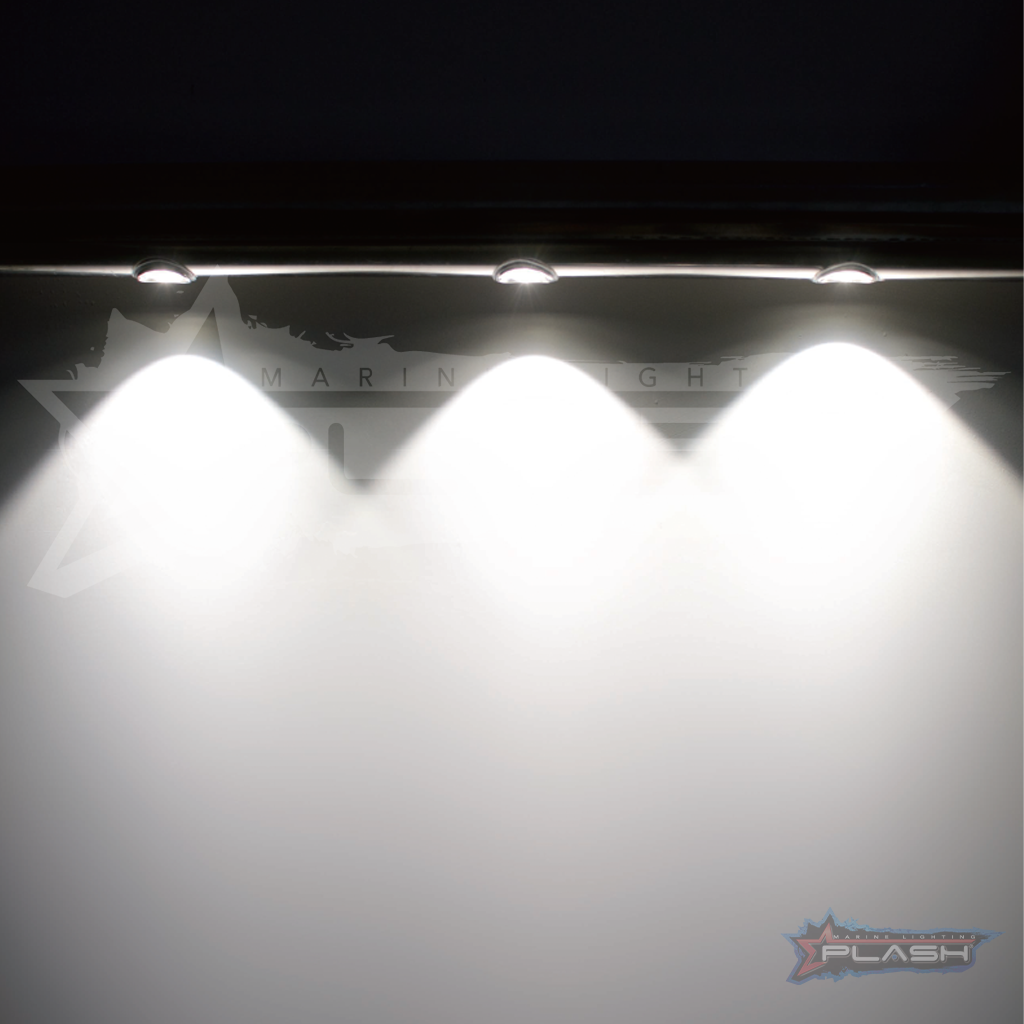

Powerful, yet small & unobtrusive each CREE LED module provide an oval shaped beam with a sharp cut-off designed to obtain non-overbearing illumination with a high degree of uniformity, minimal glare, nil light spill. The rail lights can be installed in new handrail or retrofitted into existing ones. Eliminating the need to light an entire area, the lit handrail helps to increase safety & security at minimal cost.

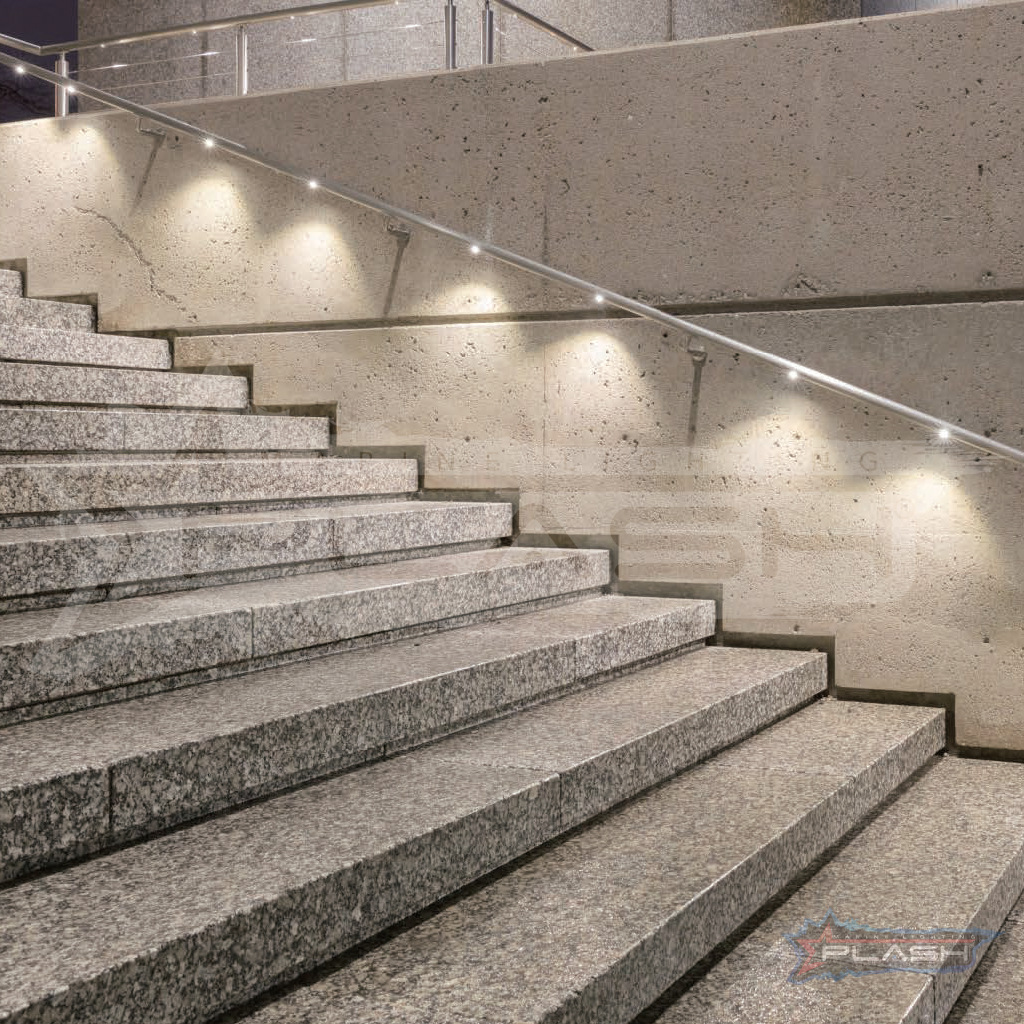

With stainless steel body & IP67, it is well-suited for Interior/ Exterior staircase, Marine T-Tops and pipe, Docks, Outdoor bars and Walkways. It provides decorative lighting when incorporated into the structure, enhancing aesthetics and increasing visibility.

FEATURES

• 95 Lumens Max

• Power:1.5W

• Input:24VDC

• IP67 Rated

• Beam Angle: 30° (Tilt & Pan) / 60°

• Material: Stainless Steel 304

• Available Color: Red, Blue, 6000k Cool White, 3000k Warm White , and 2700k Warm White.  Some colors may only be available by special order.

• Teflon Cable

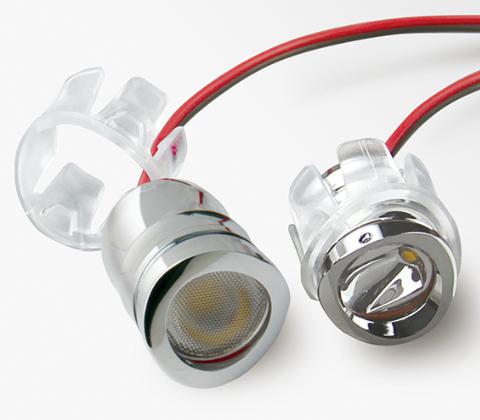

• PC Spring for Recessed Installation and Isolation of Dissimilar Metals

• SS304 clip for easy removal

• O-Ring PMQ Silicone Seal

• 242.5 lbs Max Weight Capacity

• VHF & AIS Safe

• Ce and RoHS Certifies

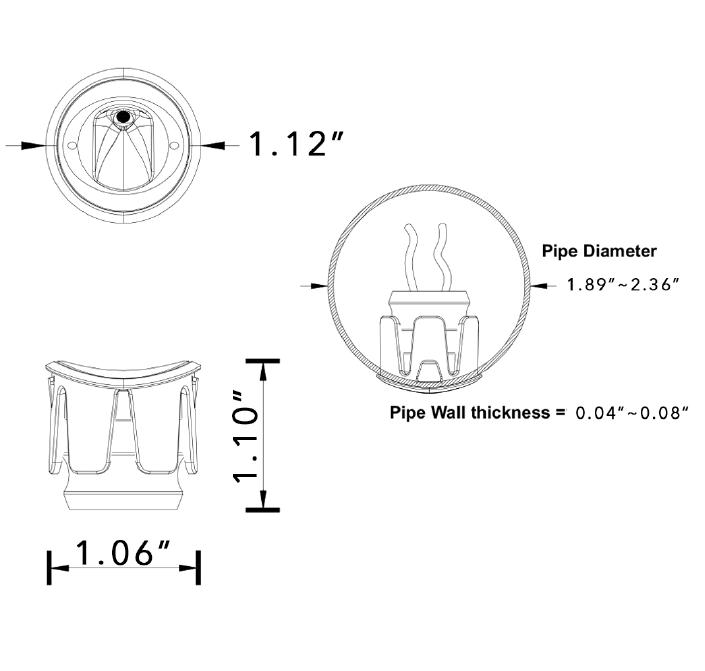

SPECIFICATIONS

PRODUCT SPECIFICATION SHEET
