SRX2-20-WHT

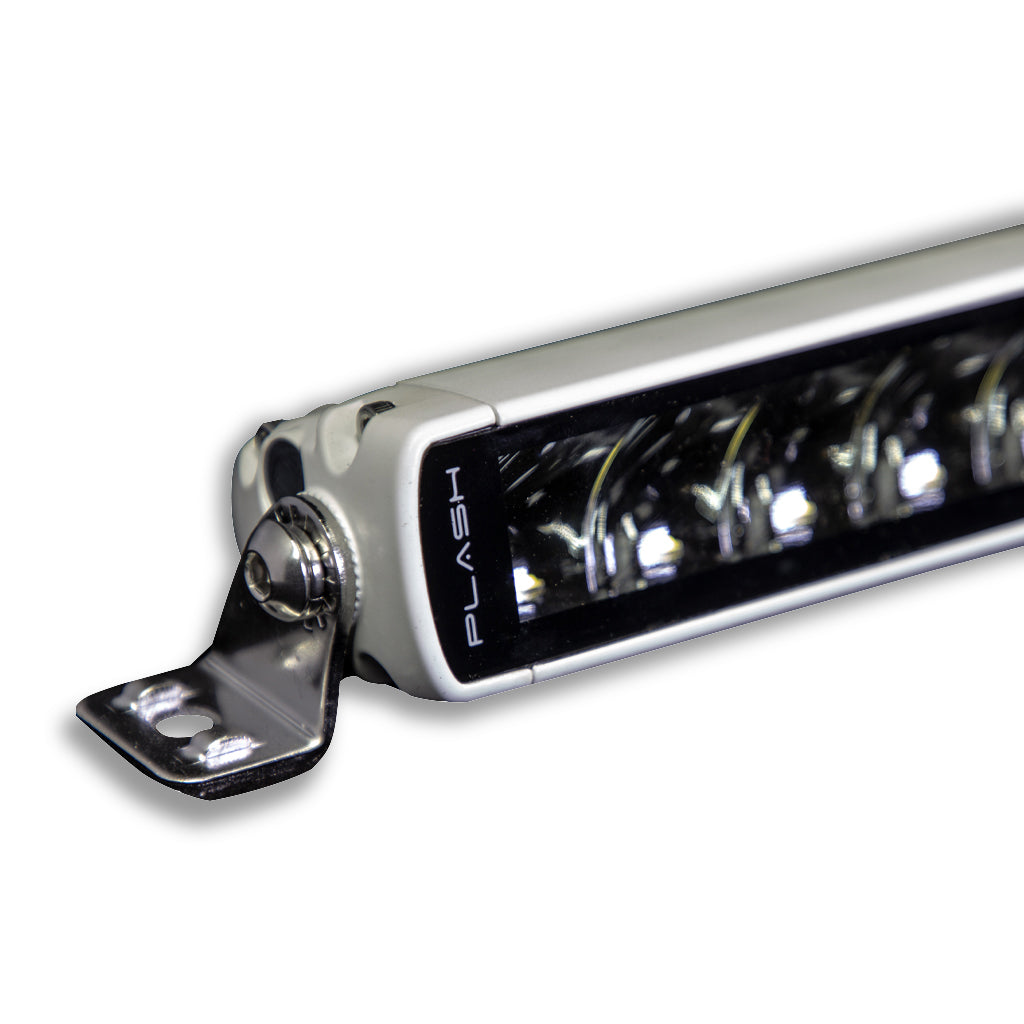

20" - SRX2-Series Single Row LED Light Bar - White Housing

Size
Housing Color
White
Bar Design

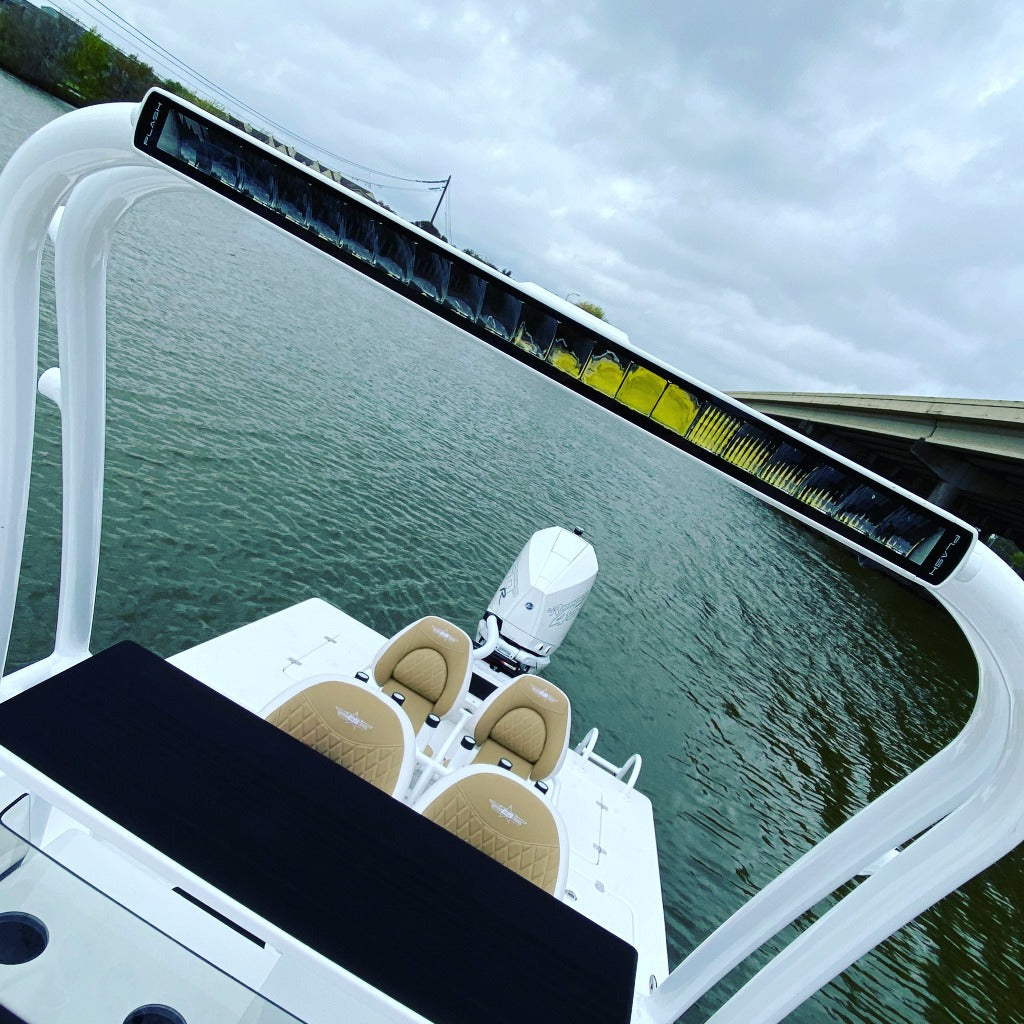

 The Best Light Bar for Center Console Boats. Specifically made to project the light on the horizon and not on the bow of your boat.  There is a crisp cut off line where no light shines down from the bottom of the light bar.  Efficiency is the key here.  The light is where you need it and not where you don't.

Isolated Dissimilar Metals. Amazing Beam Pattern with Minimum Reflection on Bow. Pressed Fit Assembly = Less Fasteners. Extended Power Wire for Easy Installation.

FEATURES:

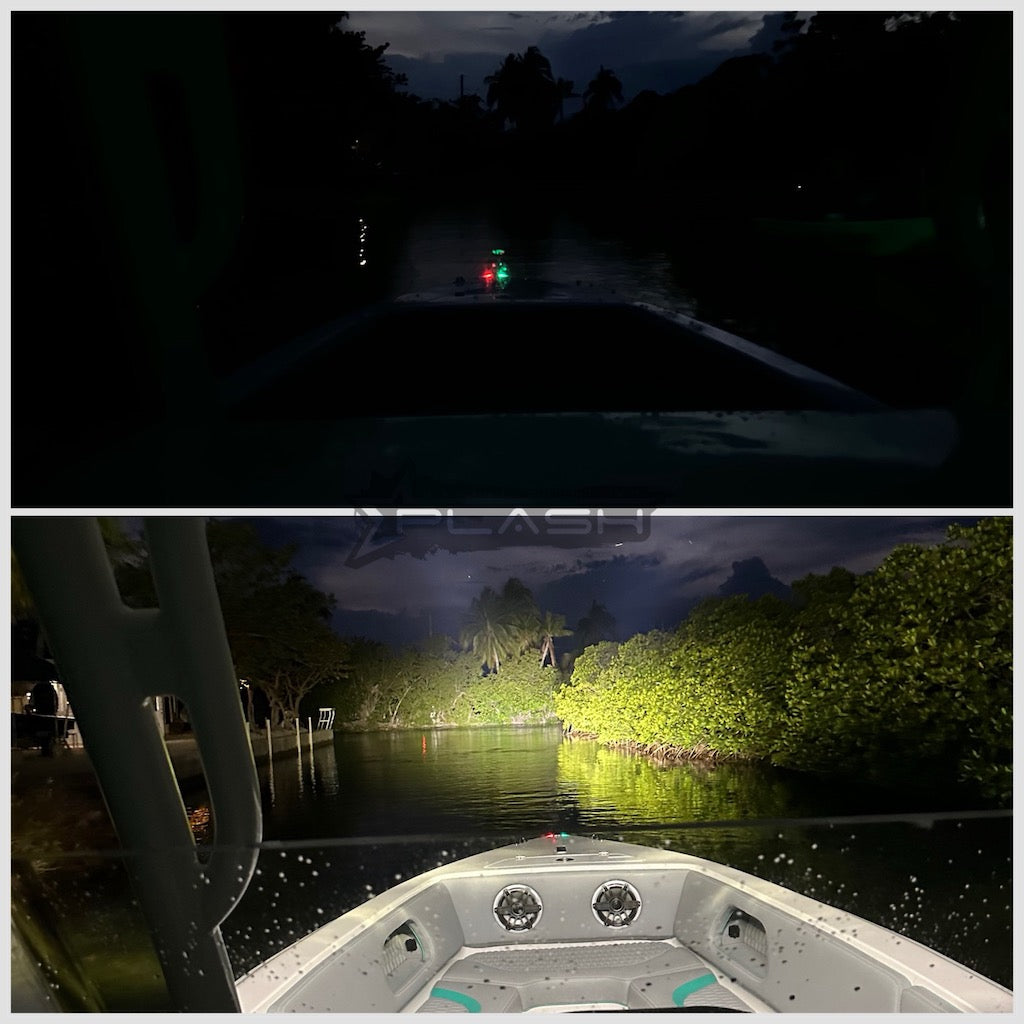

  • Optimal Beam Pattern to Reduce Bow Reflection
  • Combination Beam Pattern
  • Integrated Temperature Control System (TCS)
  • 21 X 5W OSRAM LEDS
  • 7.9A @ 12VDC  /  3.9A @ 24VDC
  • 9~32VDC Input
  • High Lux - High Output
  • 8,820 Lumens
  • 105W MAX
  • Durable Scratch Resistant High Impact Polycarbonate Lens
  • IP67 Rated
  • 9FT Power Wire
  • 6000K (Cool White)
  • New Design to Improve Aerodynamics (Noise Reducers are Not Required)
  • Chrome Coated Stainless Hardware to Eliminate Dissimilar Metal
  • Max Distance 4,183FT
  • Blacked Out Design
  • Extruded 6063 Aluminum Body
  • 50,000 Hours or 5 Years of Continuous Use
  • Over / Under and Reverse Polarity Protection
  • VHF and AIS Safe
  • Protected Against Electromagnetic (EMC) & Radio Frequency Interference (RFI)
  • Operating Temp: -40°F- +145°F
  • MIL 810-STD 8.6G Vibration Compliant
  •

    INCLUDES:

  • (2) Chrome Coated Mounting Brackets
  • Chrome Coated Stainless Steel Hardware

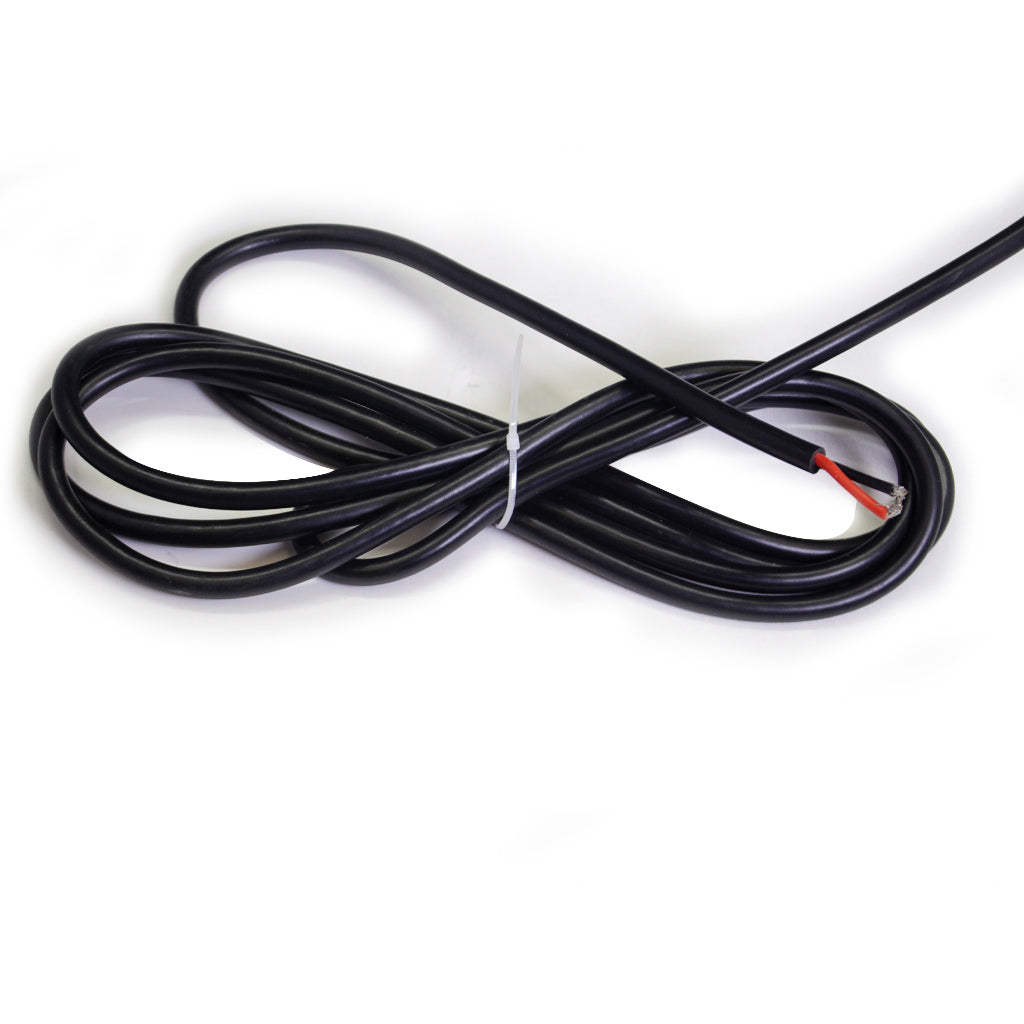

  • Copper Tinned Marine Grade Extended Power Wire - 9ft

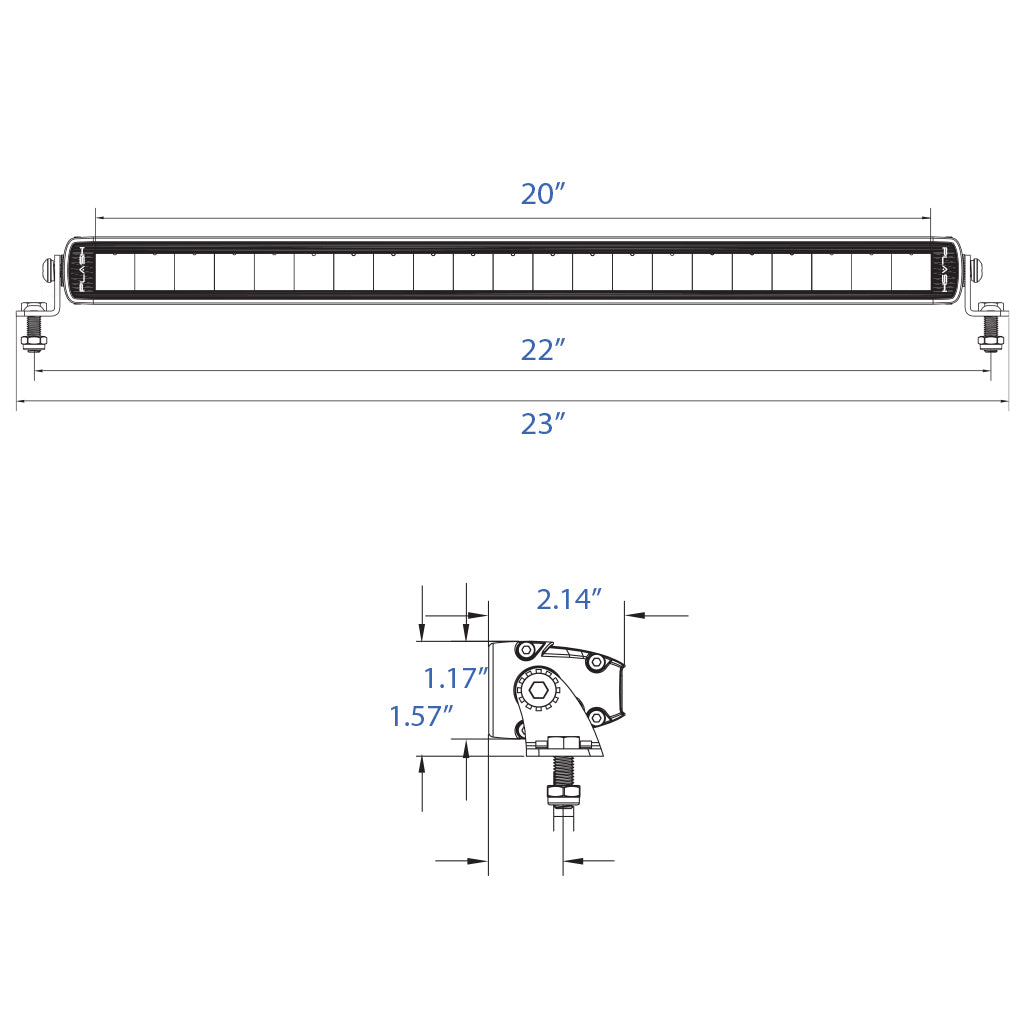

  • SRX2-Series 20" Dimensions

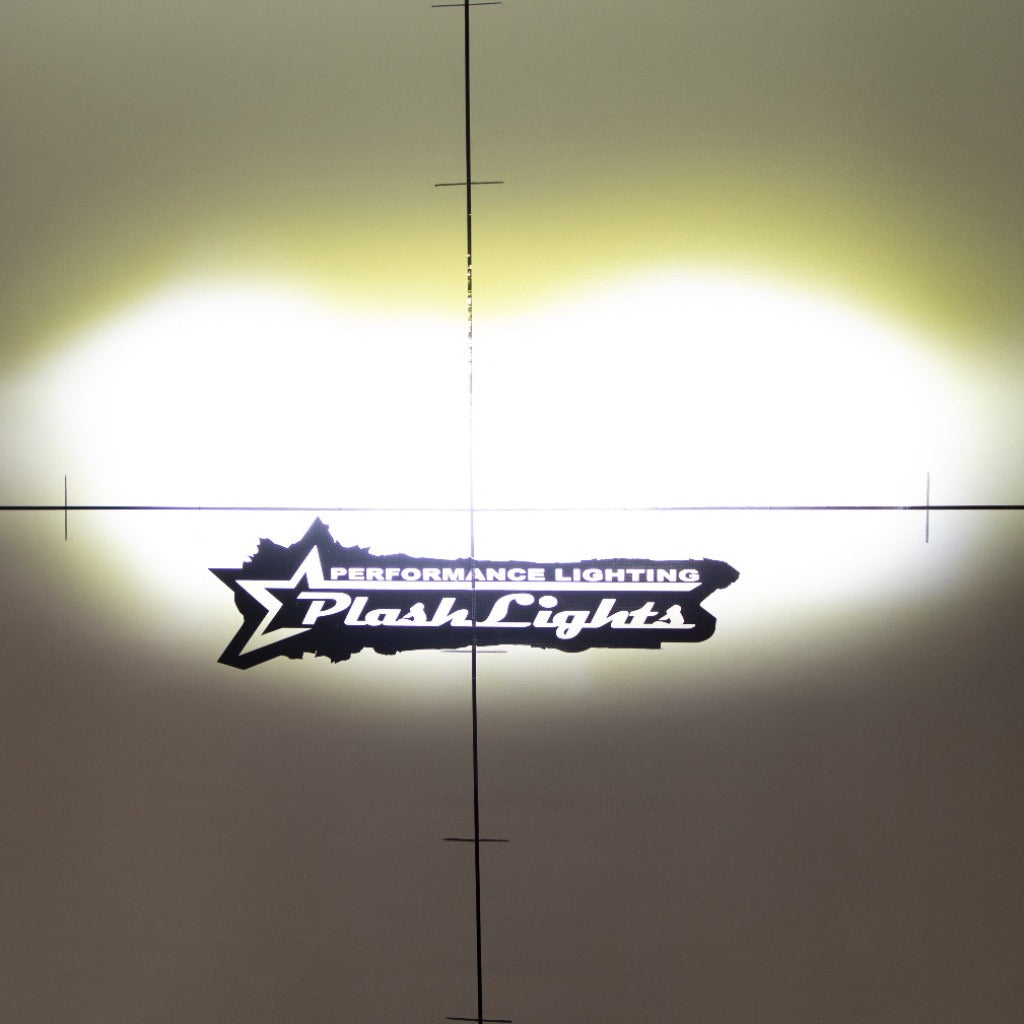

    SRX2-Series 20" Beam Pattern
    SRX2-Series 20" Specs Graph
