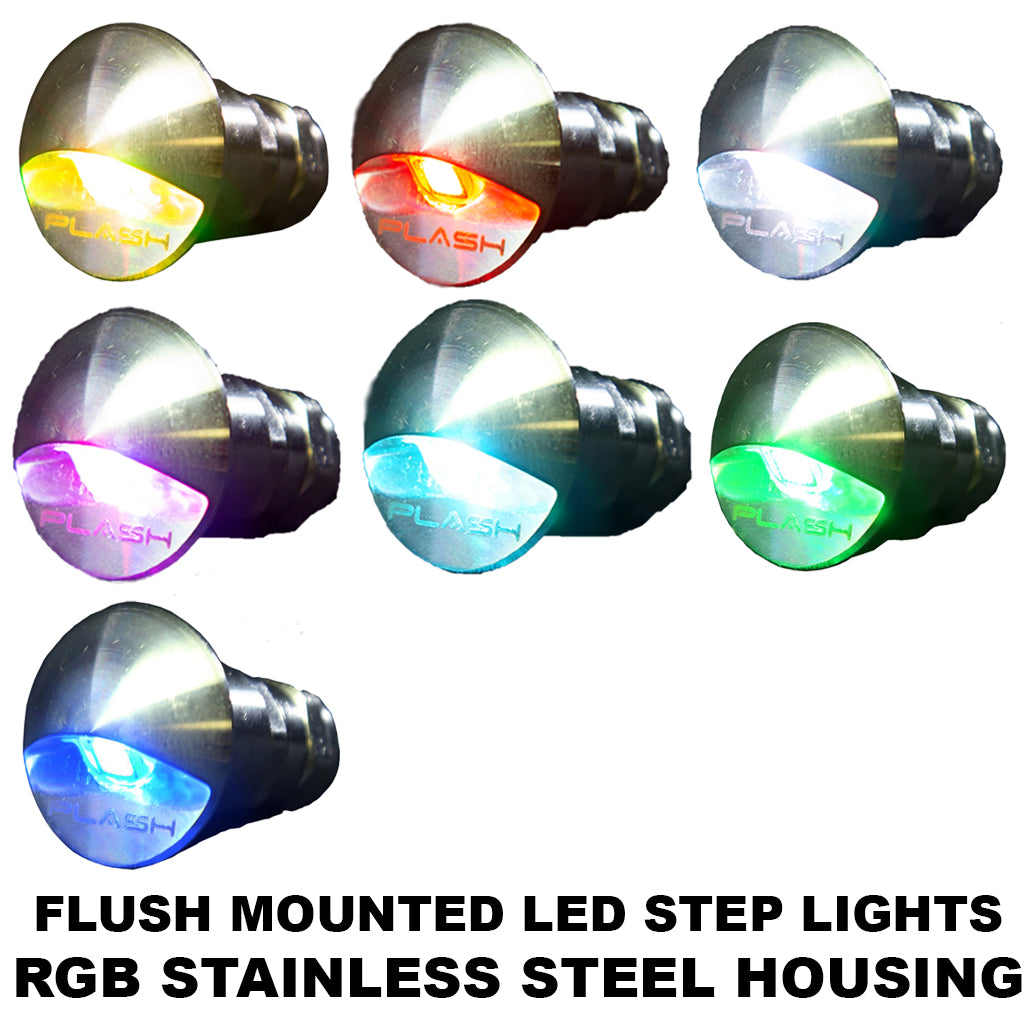

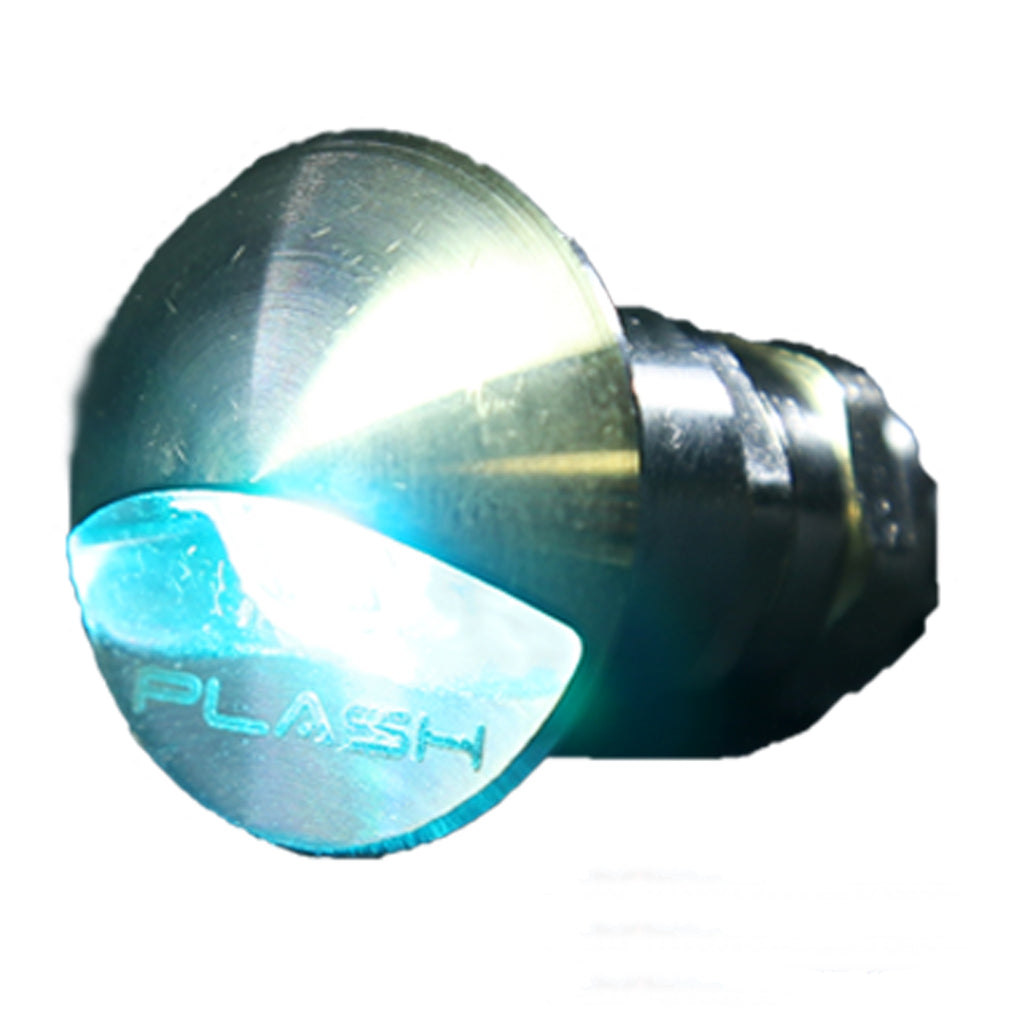

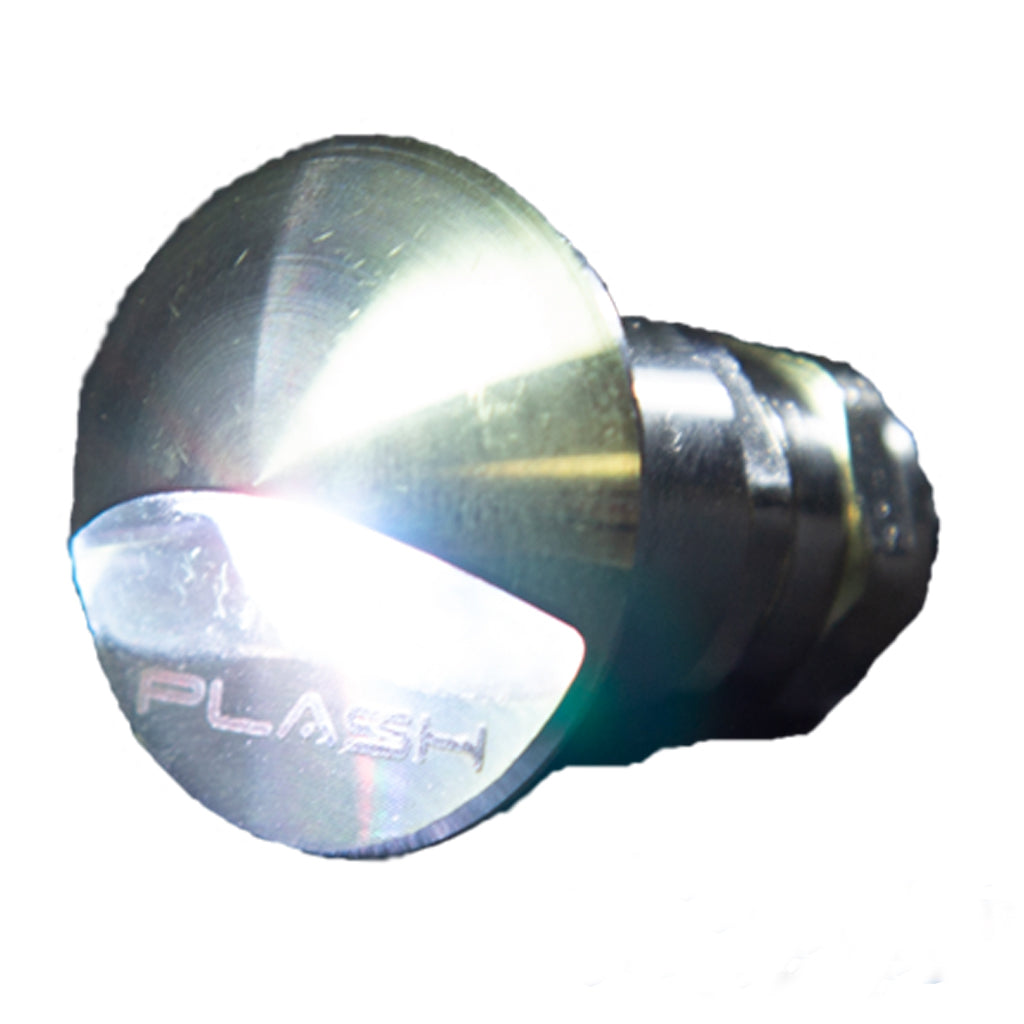

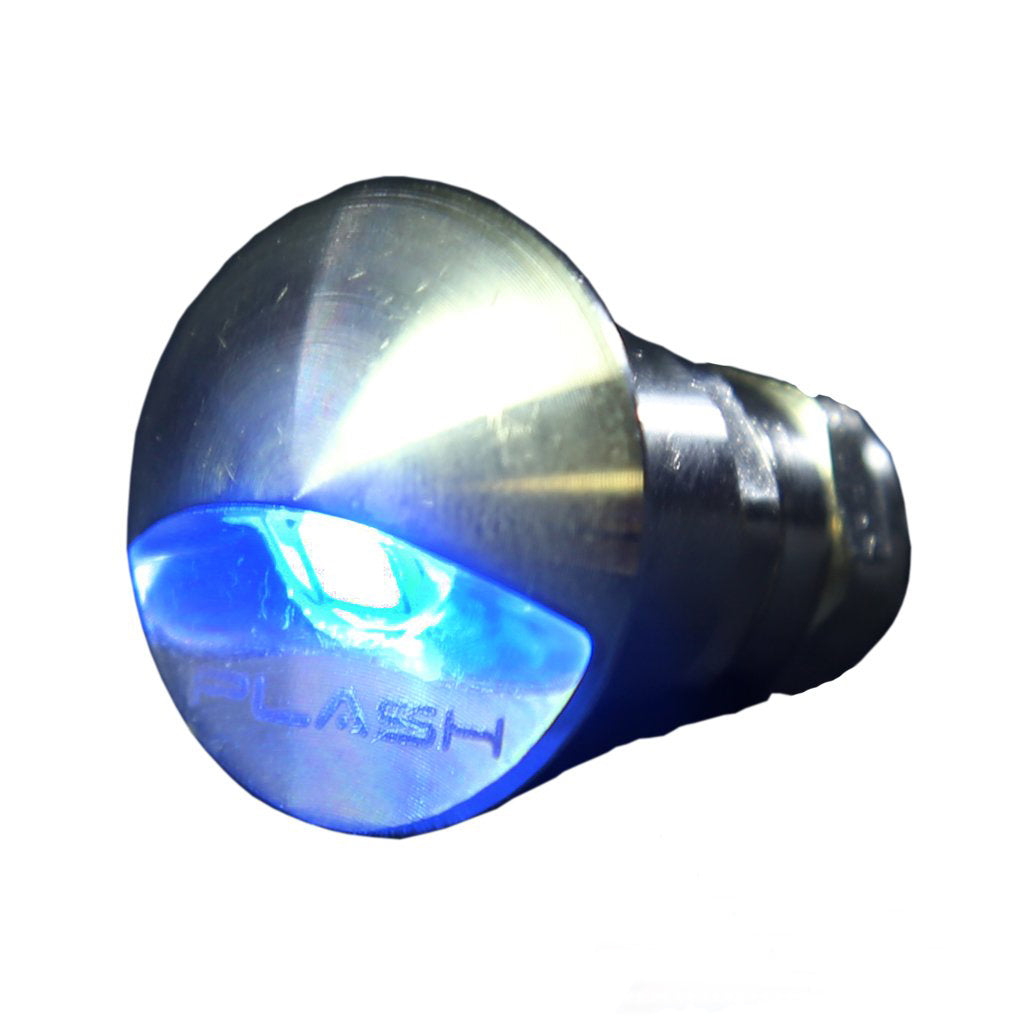

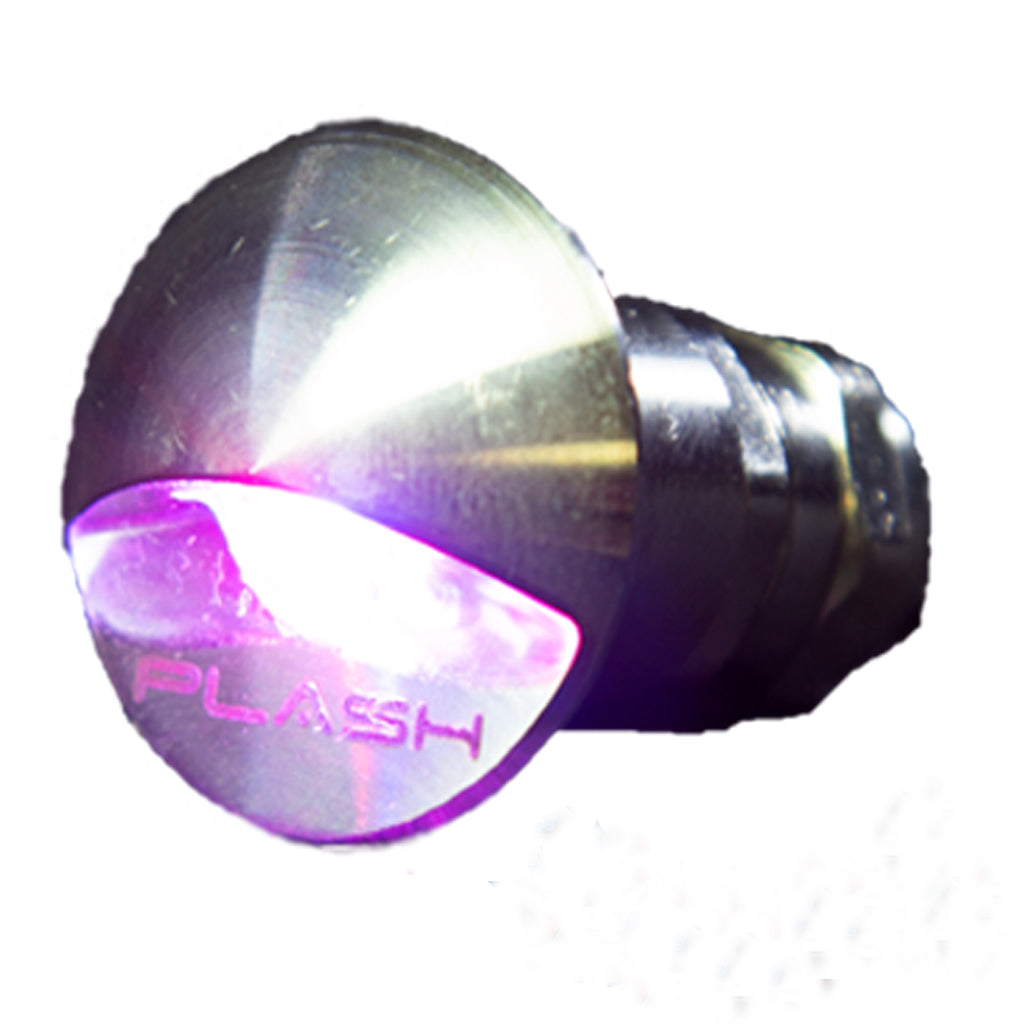

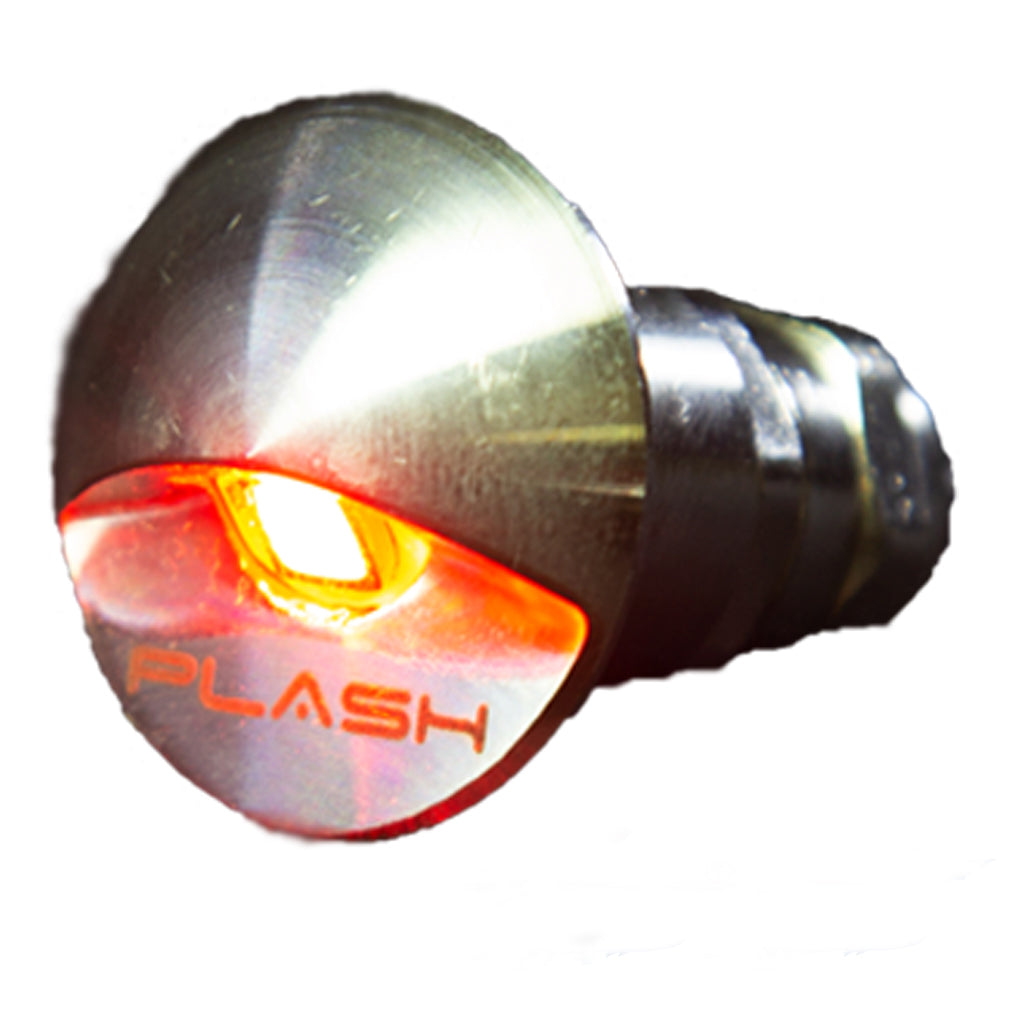

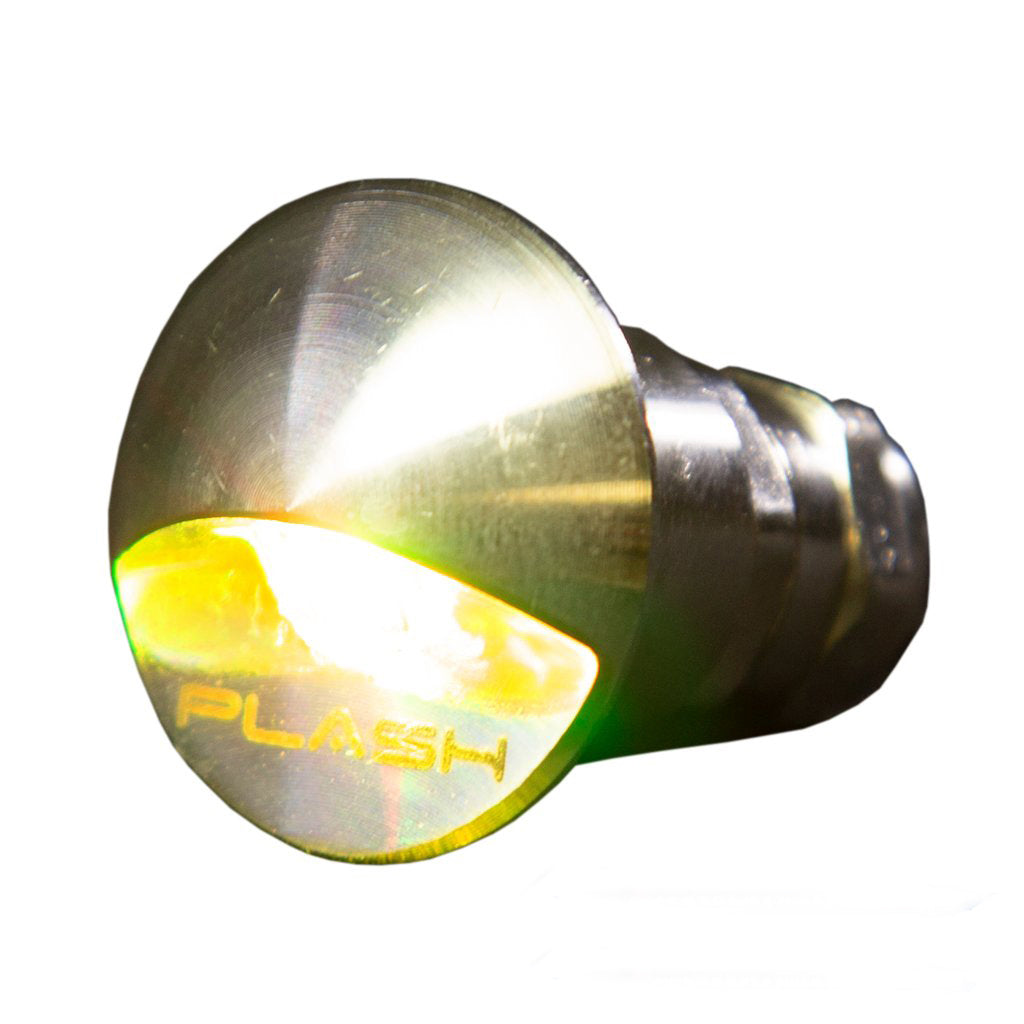

Flush Mounted LED Step Light - Stainless Steel Housing

Super compact and indirect, yet bright and efficient lighting for passageways, steps, or compartments make these LED lights ideal. The curved reflector design directs light downward, therefore eliminating any glare effect and maximizing your illumination while only protruding 3/8”.

FEATURES

• 32 Lumens Max
• Voltage: 12VDC
• IP68 Rated
• Light Style:  Step Light
• Housing Material:  Aluminum
• Draw: 140mA @ 12VDC
• Viewable Angle: 150°
• Fixture Dimensions: 7/8” dia.
• Mounting Style: Press fit
• Required Cutout: 5/8” dia. (with 1-1/4” bulkhead clearance)
• Finished Clearance: 3/8”

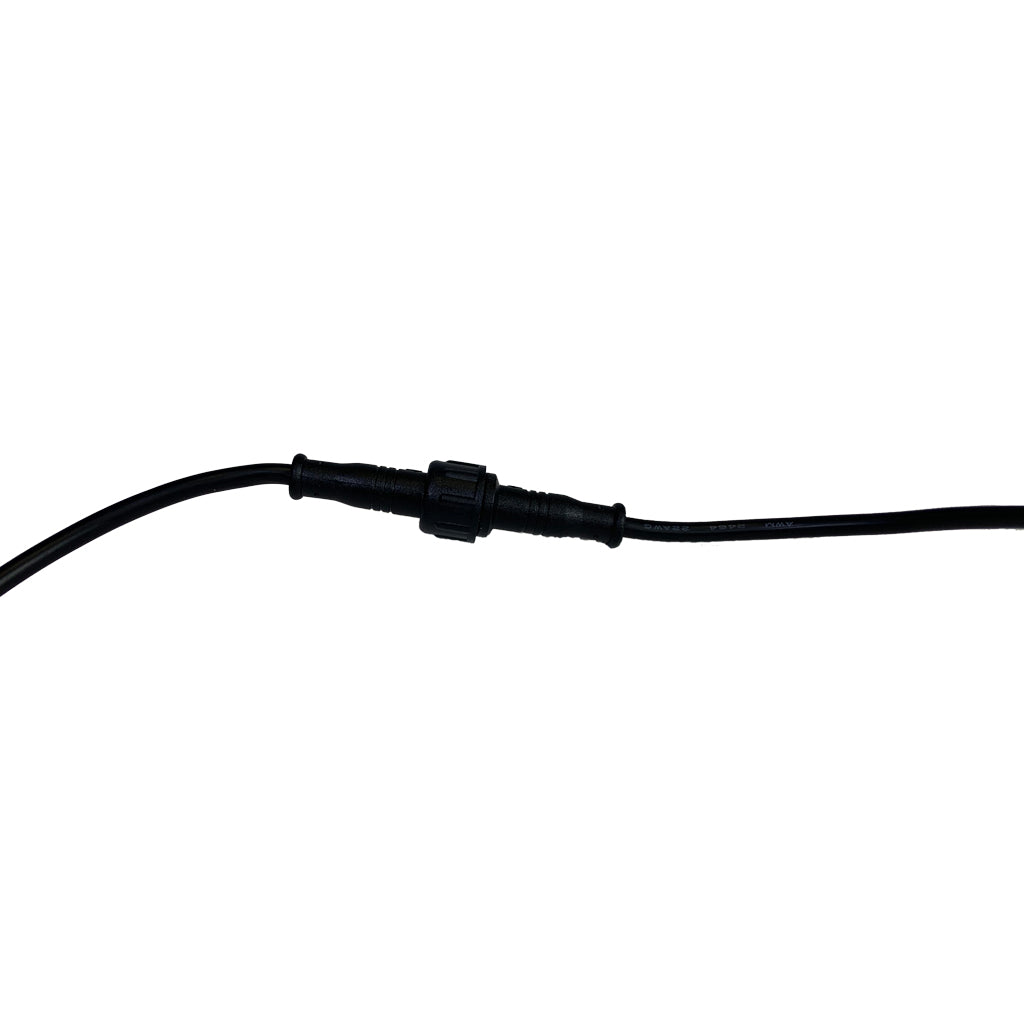

• Wiring: 2 conductor (single color) / 4 conductor (RGB), 22-gauge marine grade (9ft. cable supplied)
• Warranty: Limited Lifetime

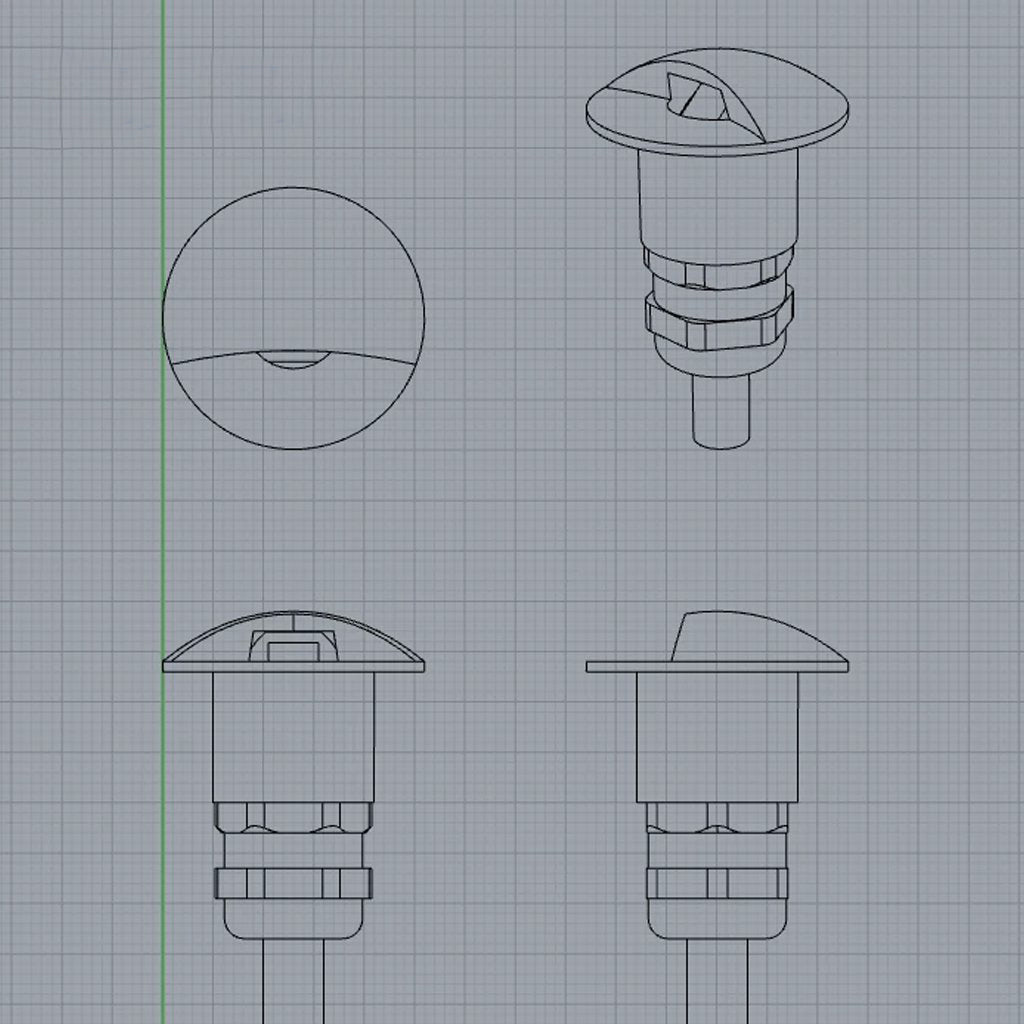

DIMENSIONS/ BEAM PATTERN

SPECIFICATIONS

PRODUCT SPECIFICATION SHEETS
