SRX2-20

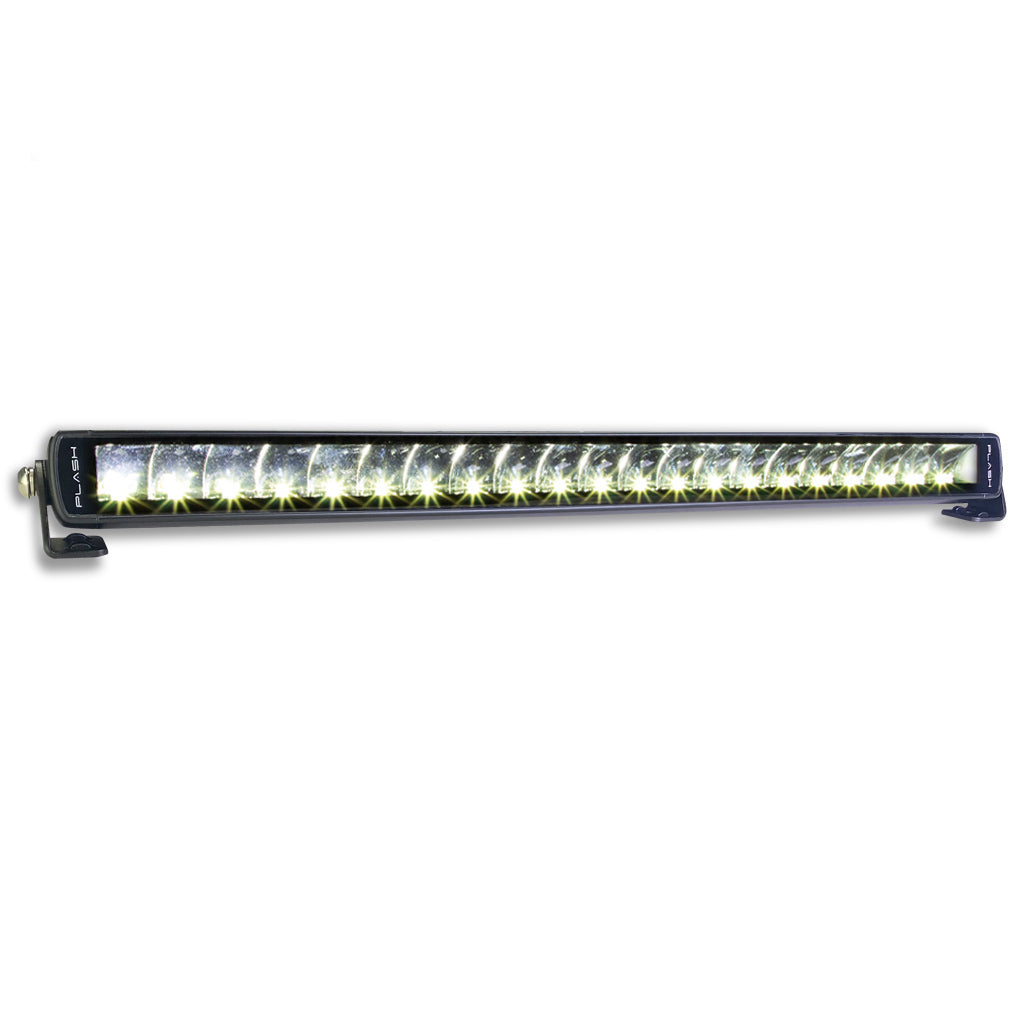

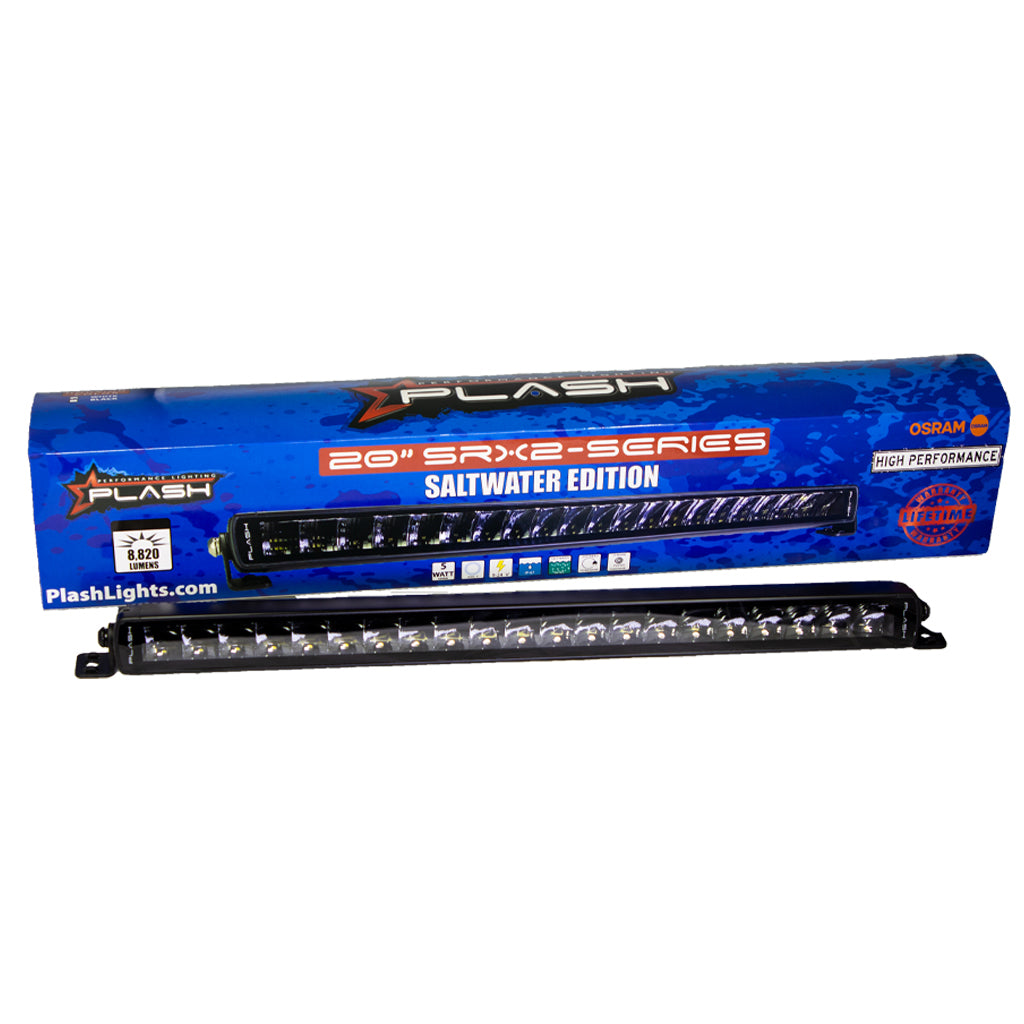

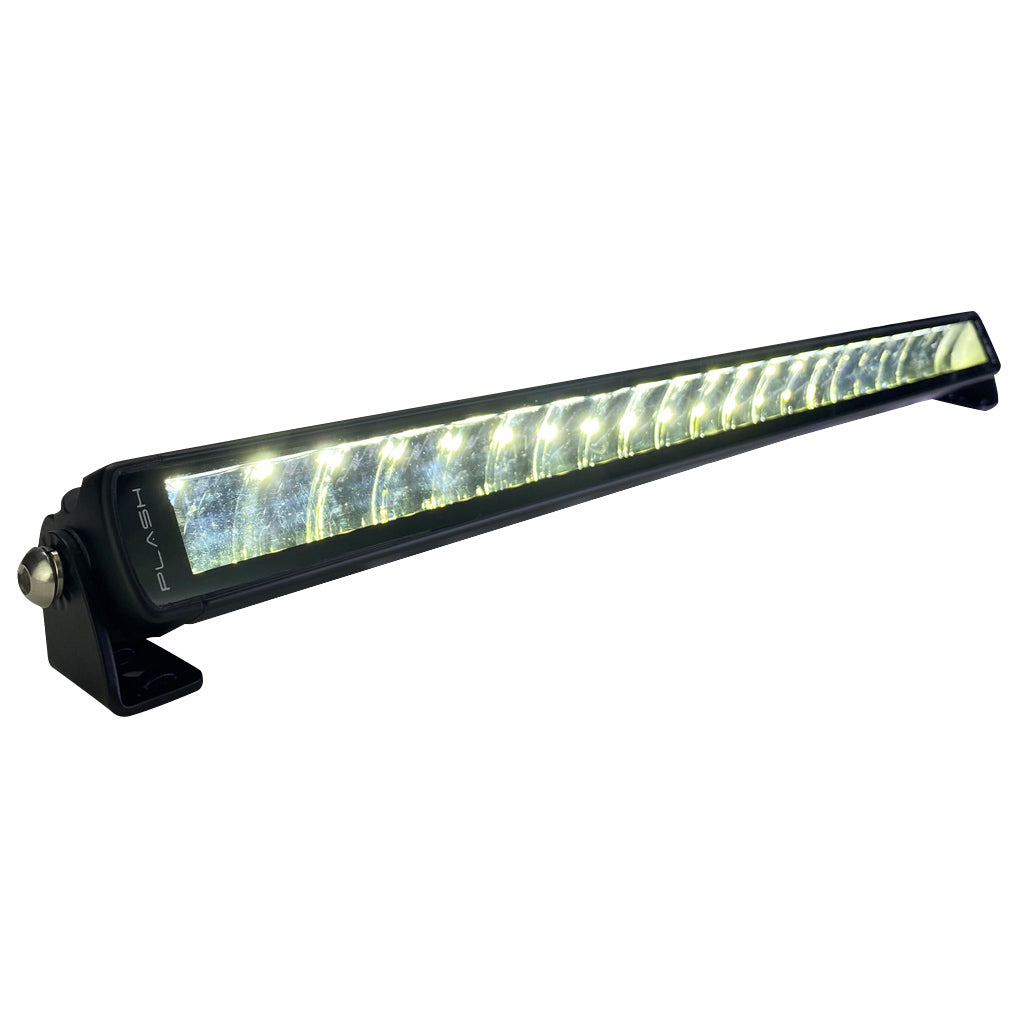

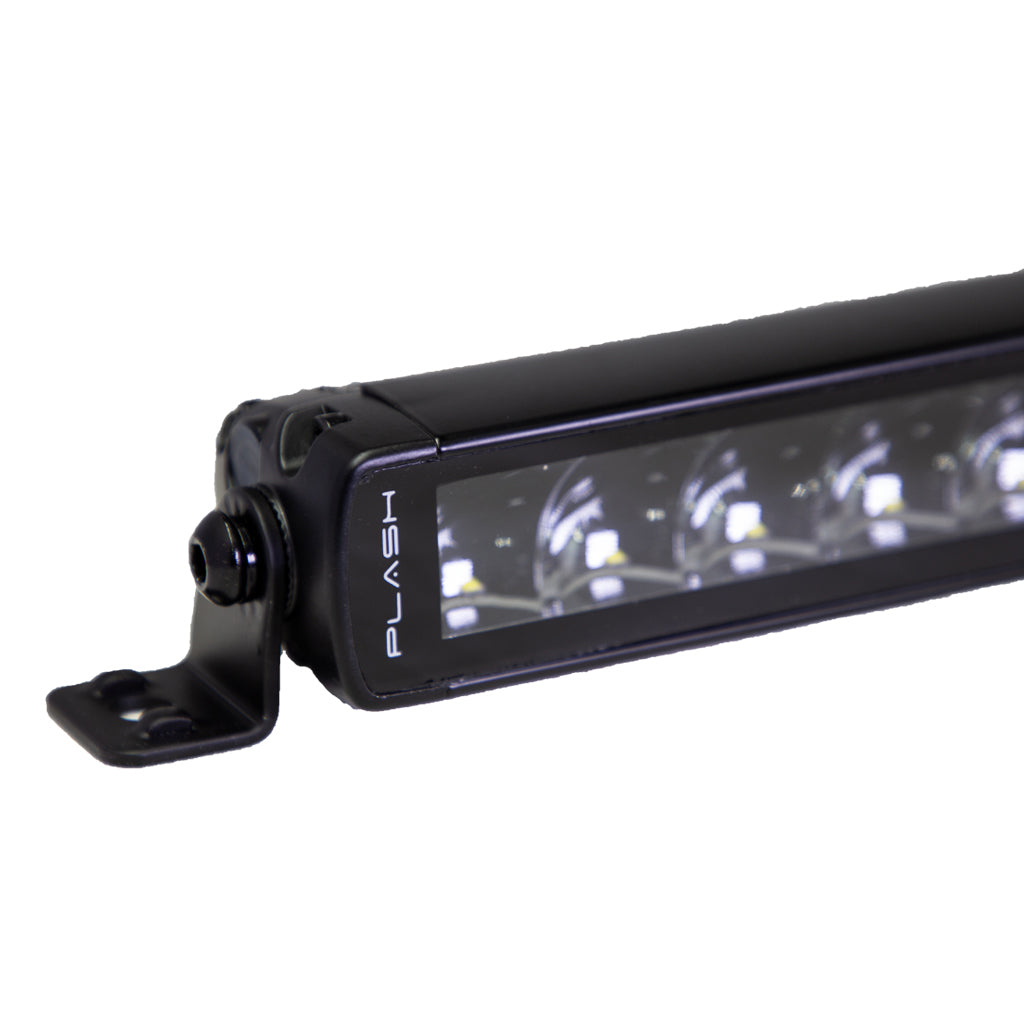

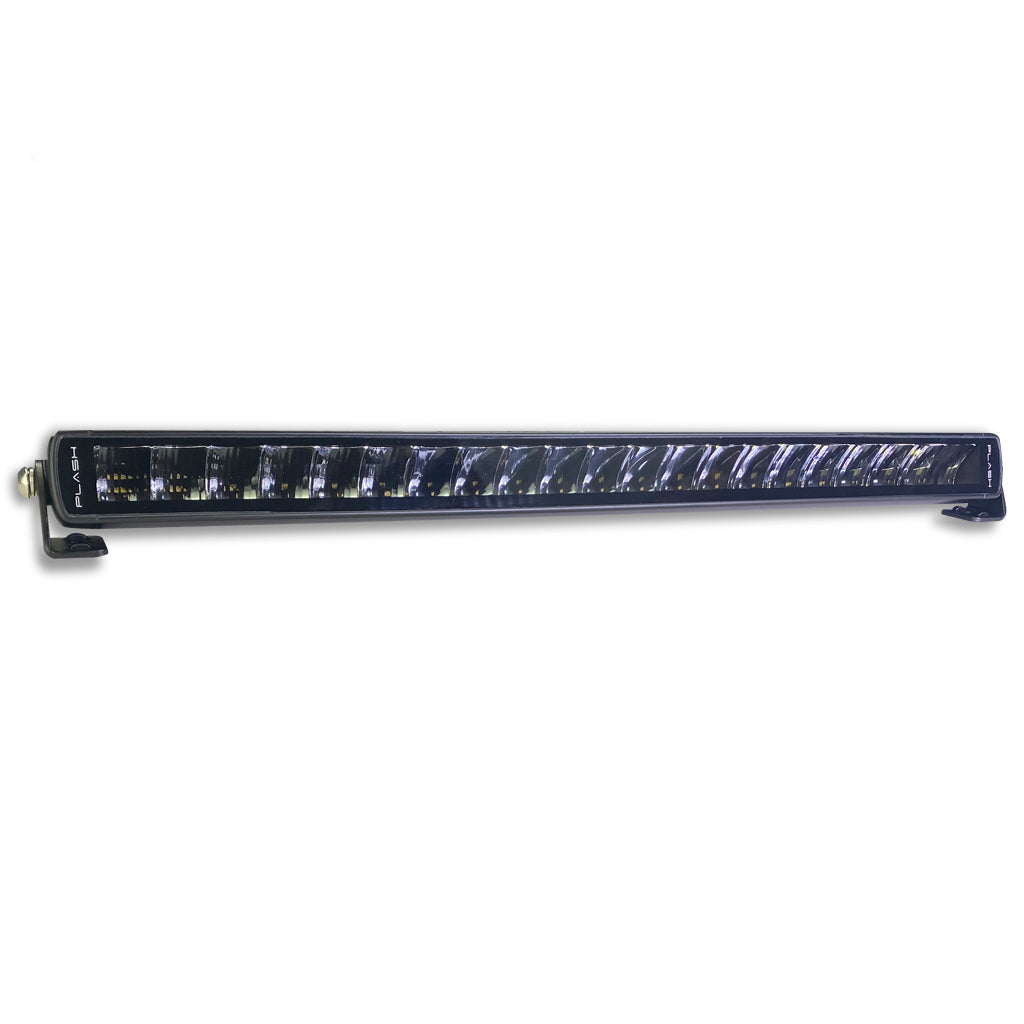

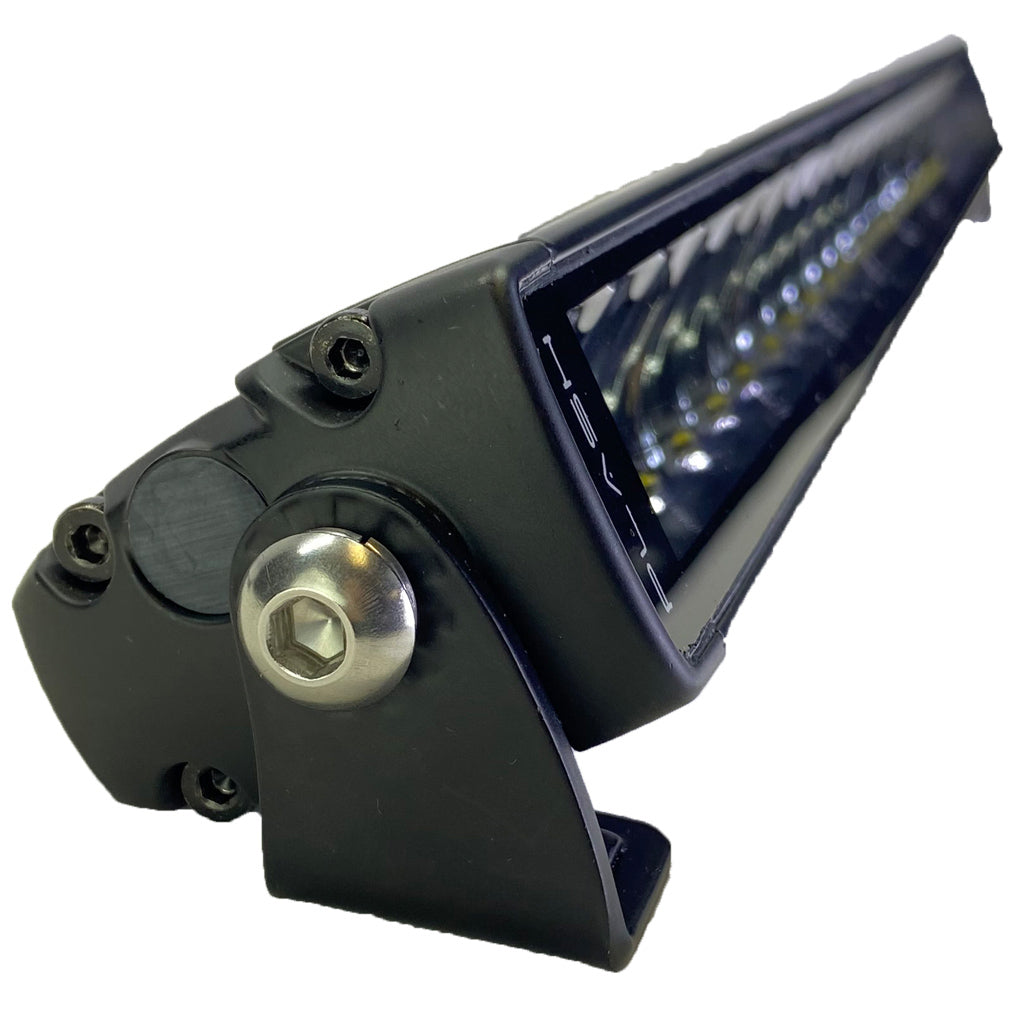

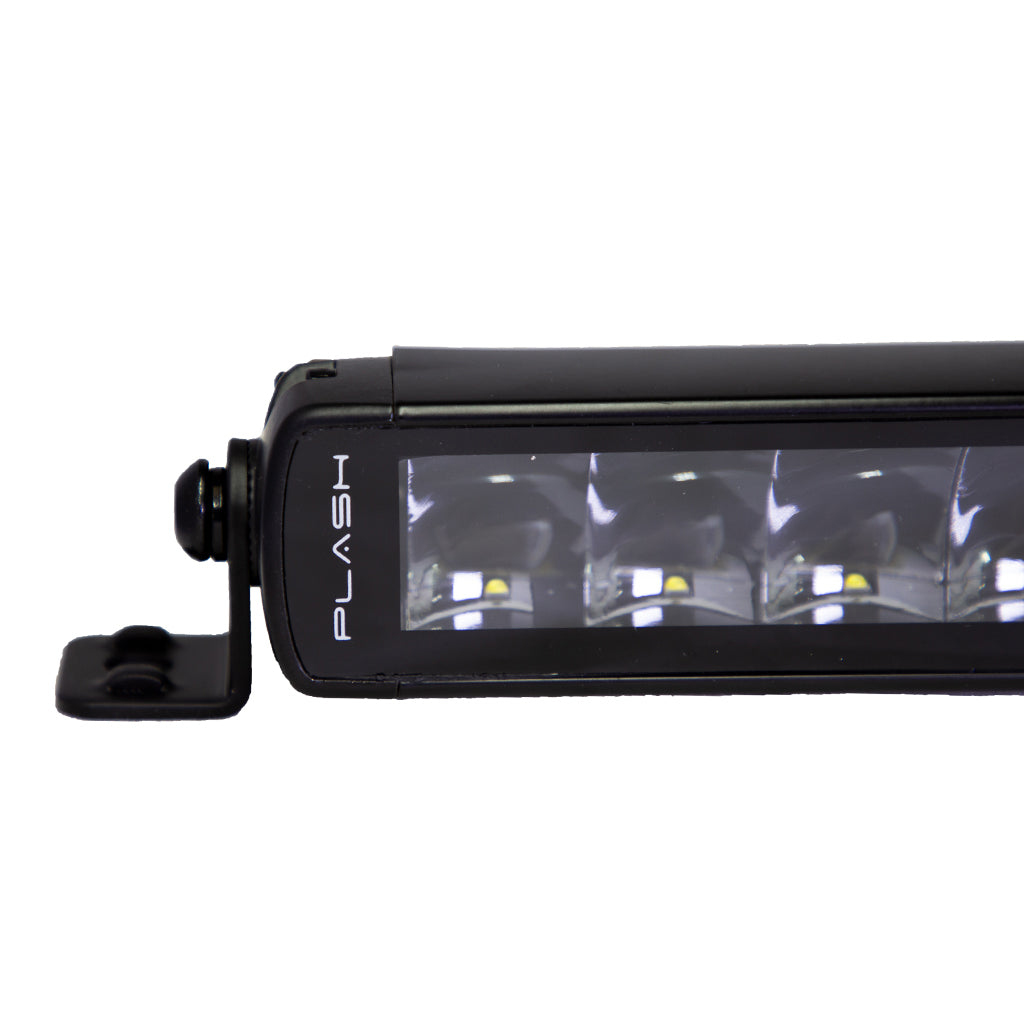

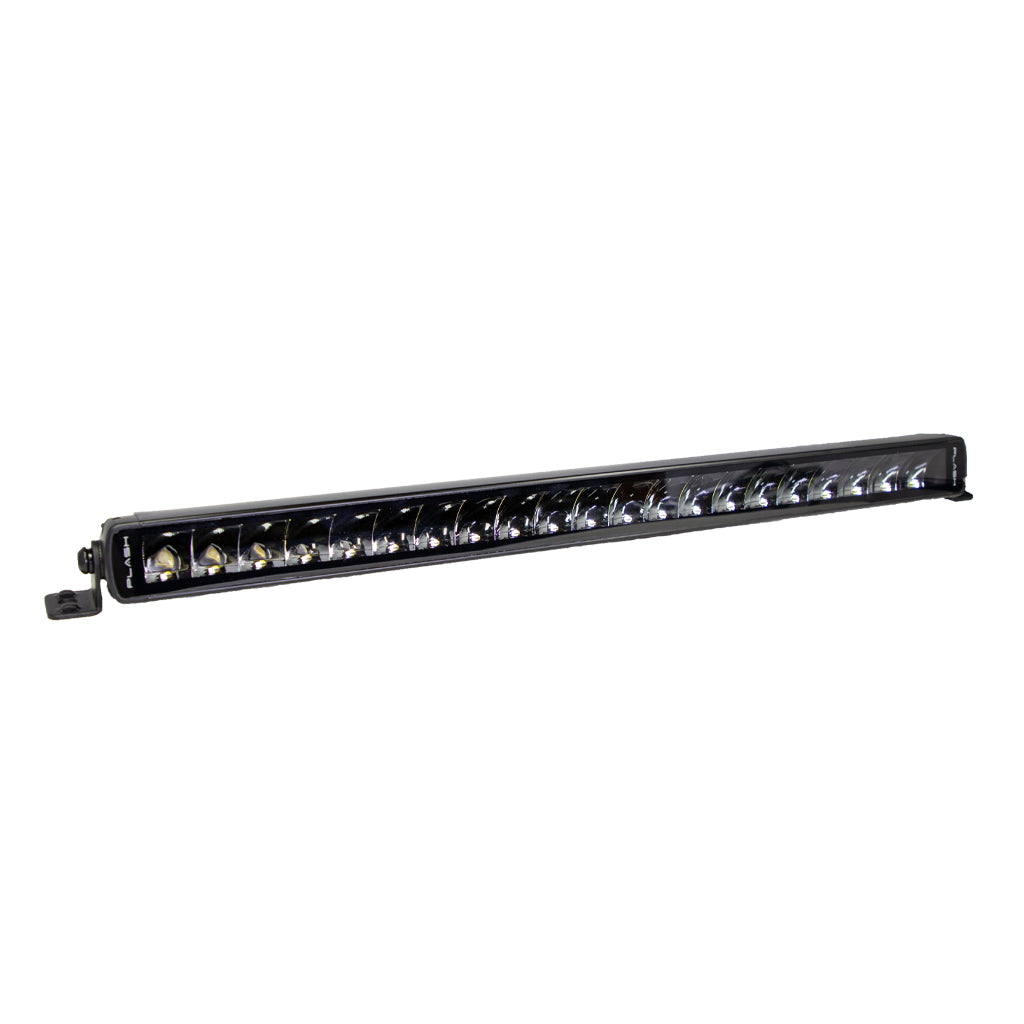

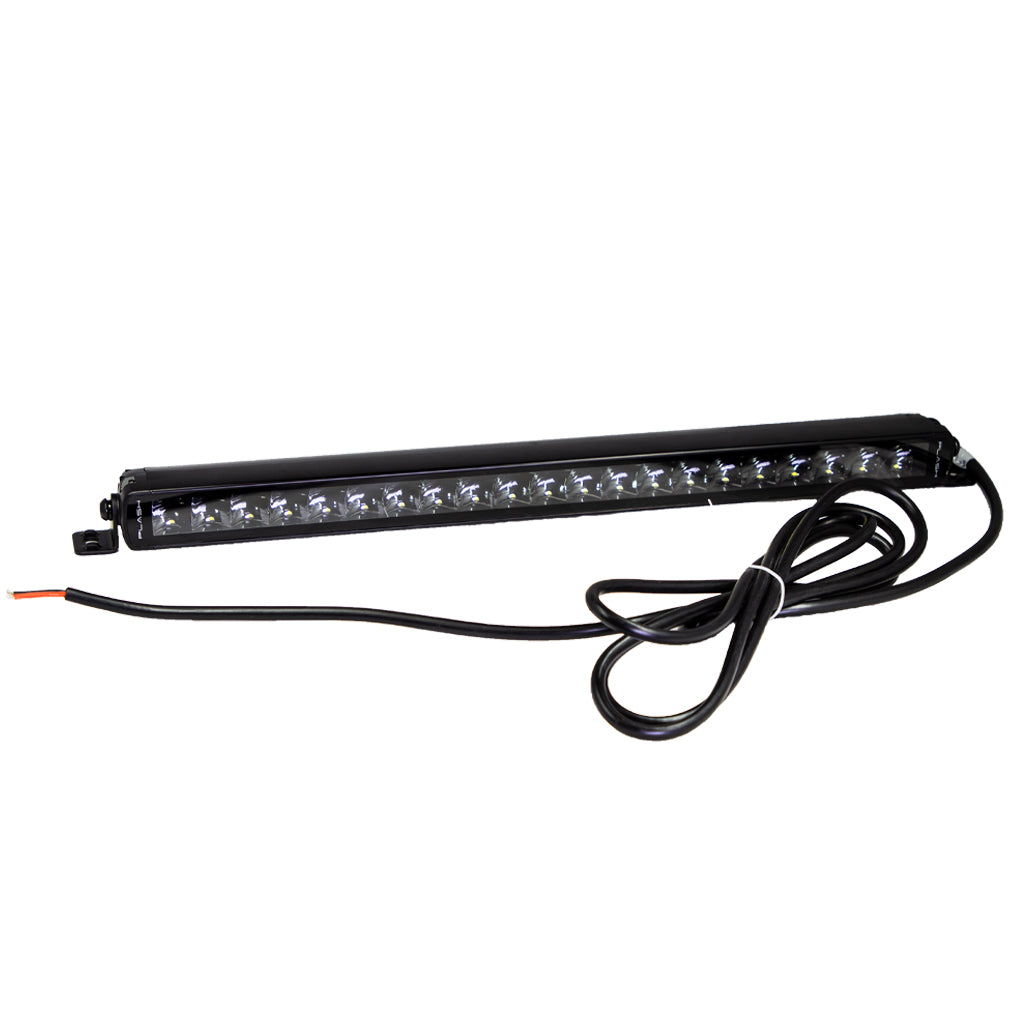

20" - SRX2-Series Single Row LED Light Bar - Black Housing

Size
Housing Color
Black
Bar Design

The Best Light Bar for Center Console Boats. Specifically made to project the light on the horizon and not on the bow of your boat.  There is a crisp cut off line where no light shines down from the bottom of the light bar.  Efficiency is the key here.  The light is where you need it and not where you don't.

Isolated Dissimilar Metals. Amazing Beam Pattern with Minimum Reflection on Bow. Pressed Fit Assembly = Less Fasteners. Extended Power Wire for Easy Installation.

FEATURES:

  • Optimal Beam Pattern to Reduce Bow Reflection
  • Combination Beam Pattern
  • Integrated Temperature Control System (TCS)
  • 21 X 5W OSRAM CSHP LEDS
  • 7.9A @ 12VDC  /  3.9A @ 24VDC
  • 9~32VDC Input
  • High Lux - High Output
  • 8,820 Lumens
  • 105W MAX (@ 32V)
  • Durable Scratch Resistant High Impact Polycarbonate Lens
  • IP67 Rated
  • 9FT Power Wire
  • 6000K (Cool White)
  • New Design to Improve Aerodynamics (Noise Reducers are Not Required)
  • Chrome Coated Stainless Hardware to Eliminate Dissimilar Metal
  • Max Distance 4,183FT

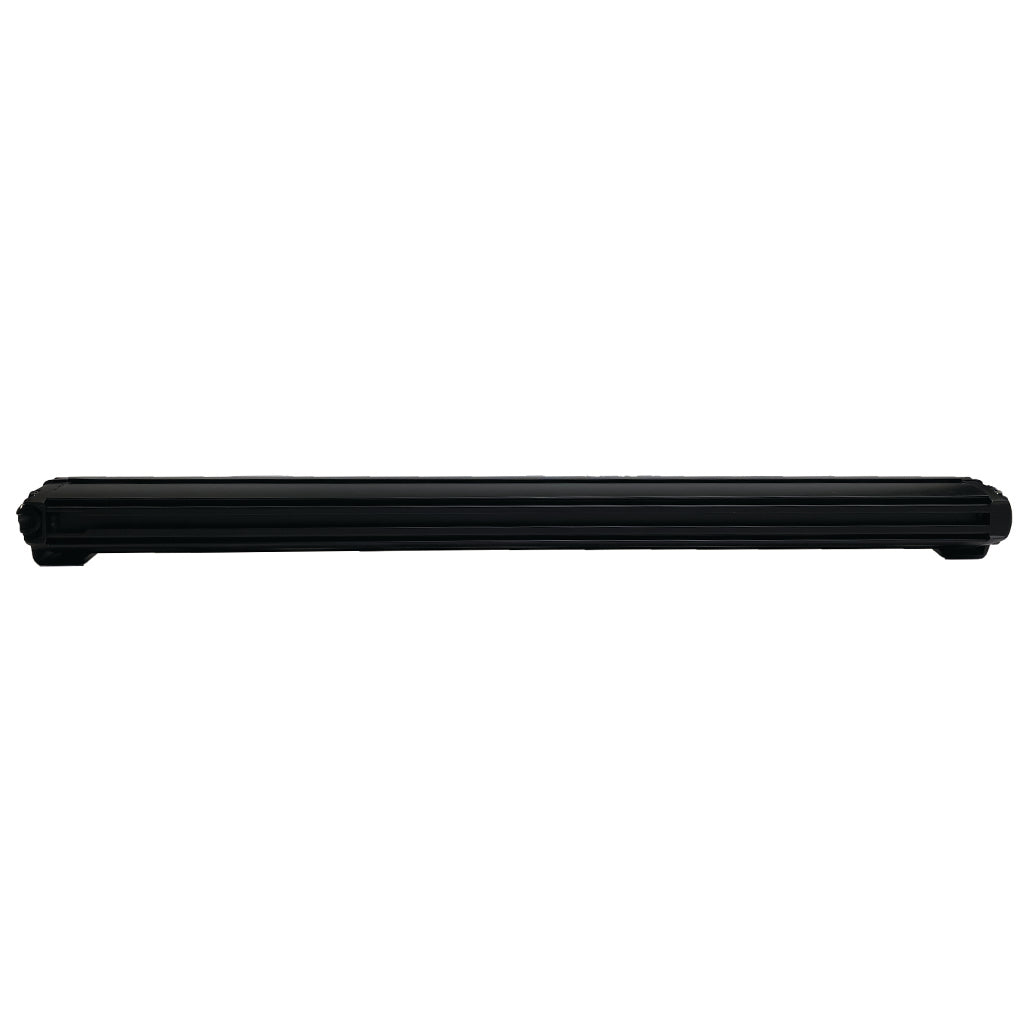

  • Blacked Out Design
  • Extruded 6063 Aluminum Body
  • 50,000 Hours or 5 Years of Continuous Use
  • Over / Under and Reverse Polarity Protection
  • VHF and AIS Safe
  • Protected Against Electromagnetic (EMC) & Radio Frequency Interference (RFI)
  • Operating Temp: -40°F- +145°F
  • MIL 810-STD 8.6G Vibration Compliant
  •

    INCLUDES:

  • (2) Chrome Coated Mounting Brackets
  • Chrome Coated Stainless Steel Hardware

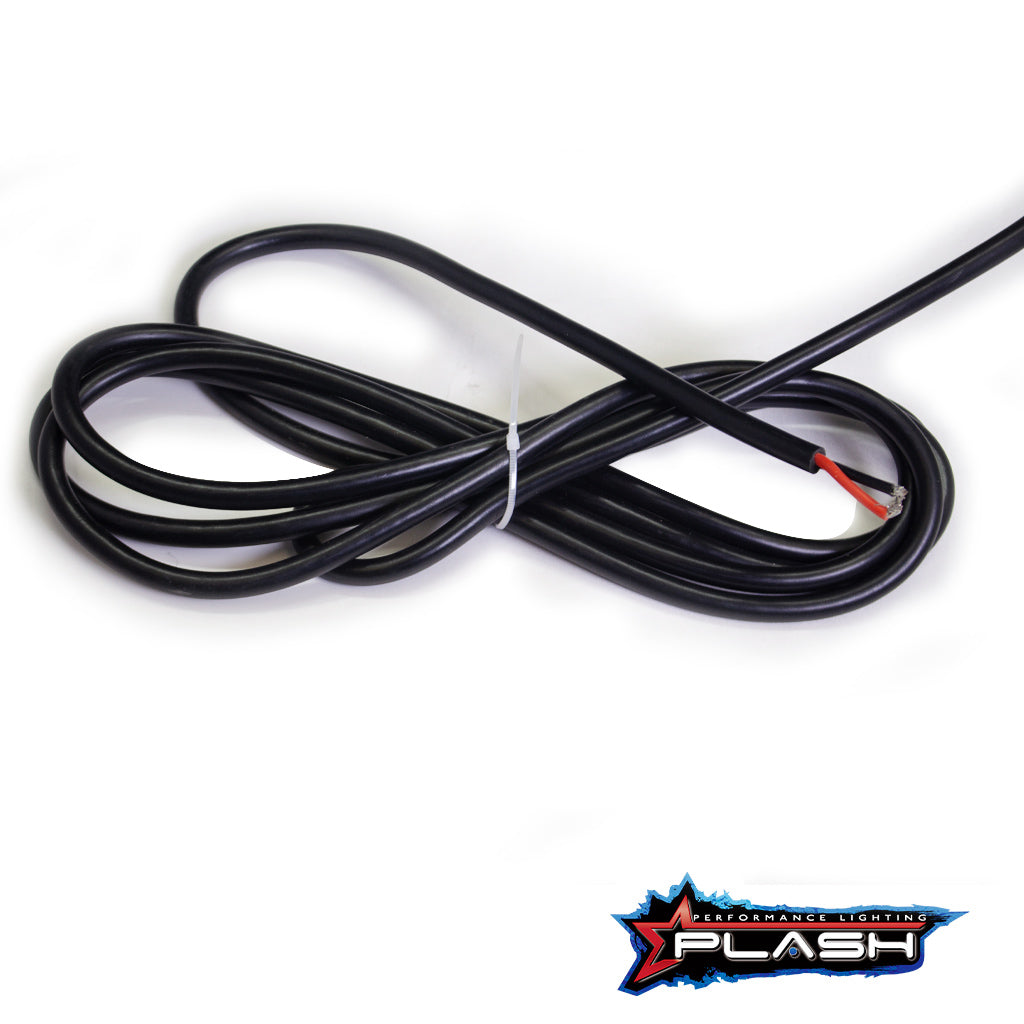

  • Copper Tinned Marine Grade Extended Power Wire - 9ft
  •

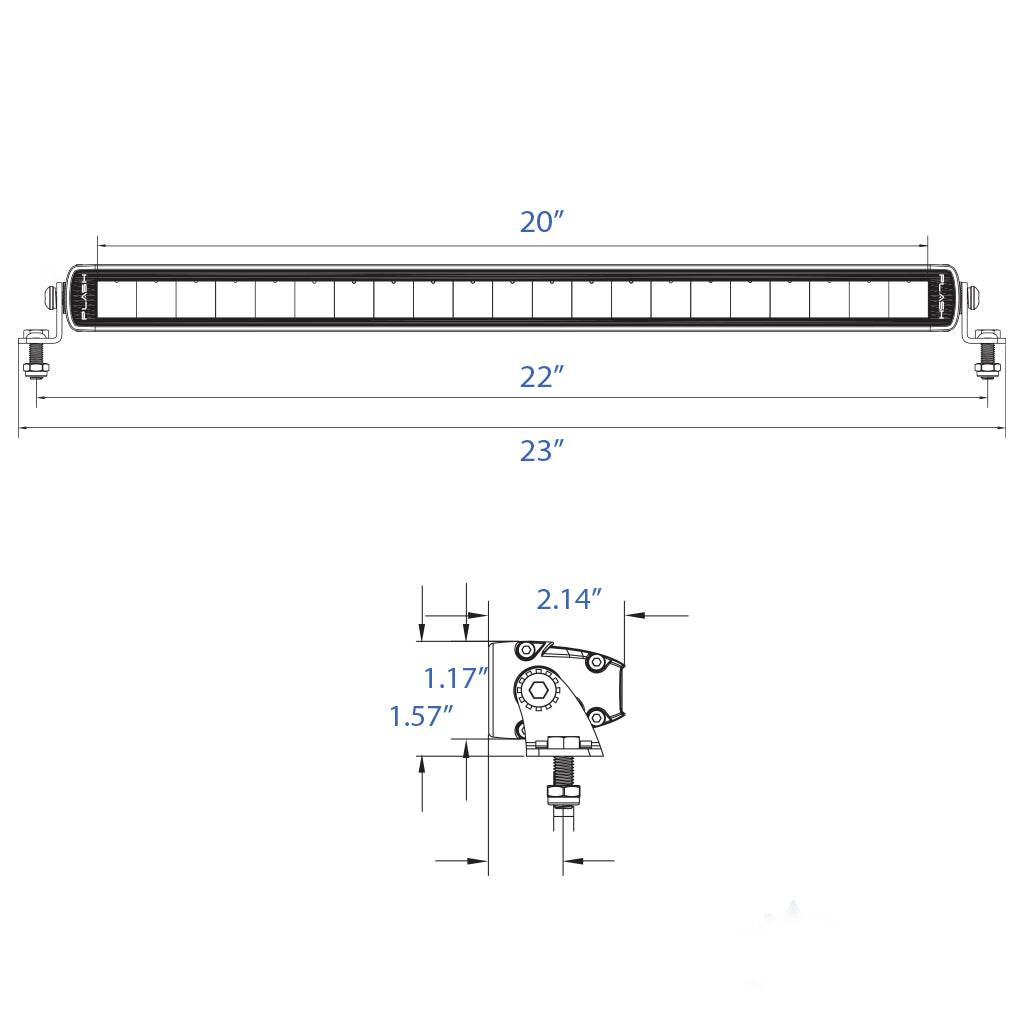

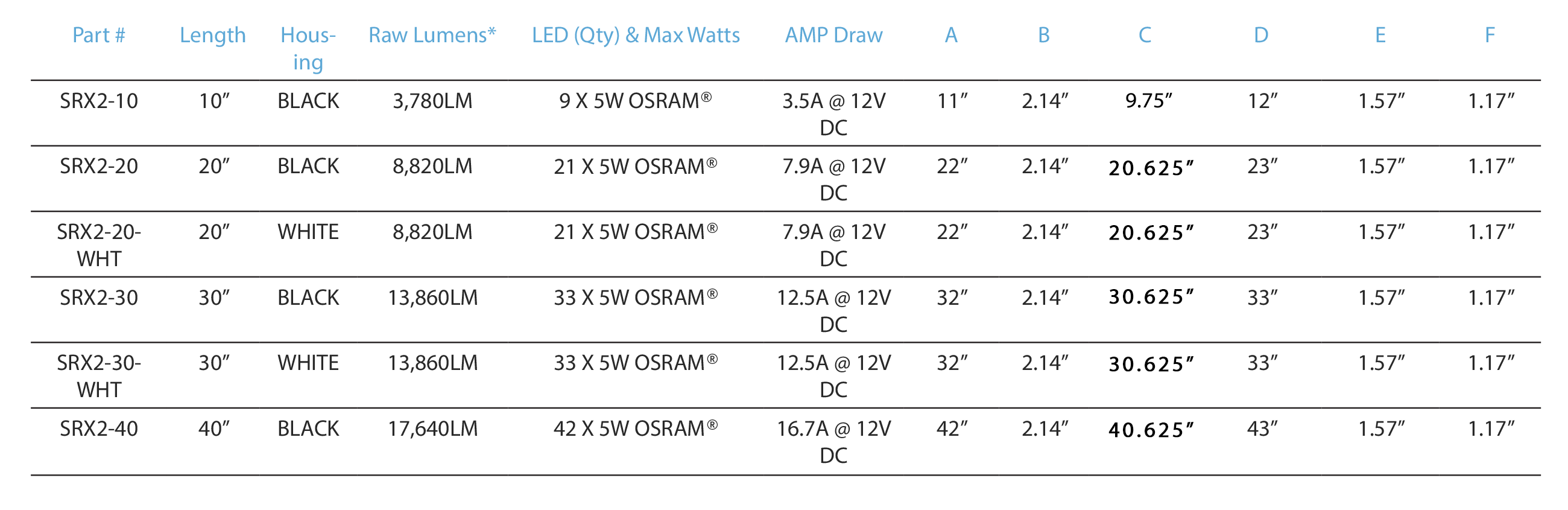

    SRX2-Series 20" Dimensions
    SRX2-Series 20" Dimensions
    SRX2-Series 20" Dimensions

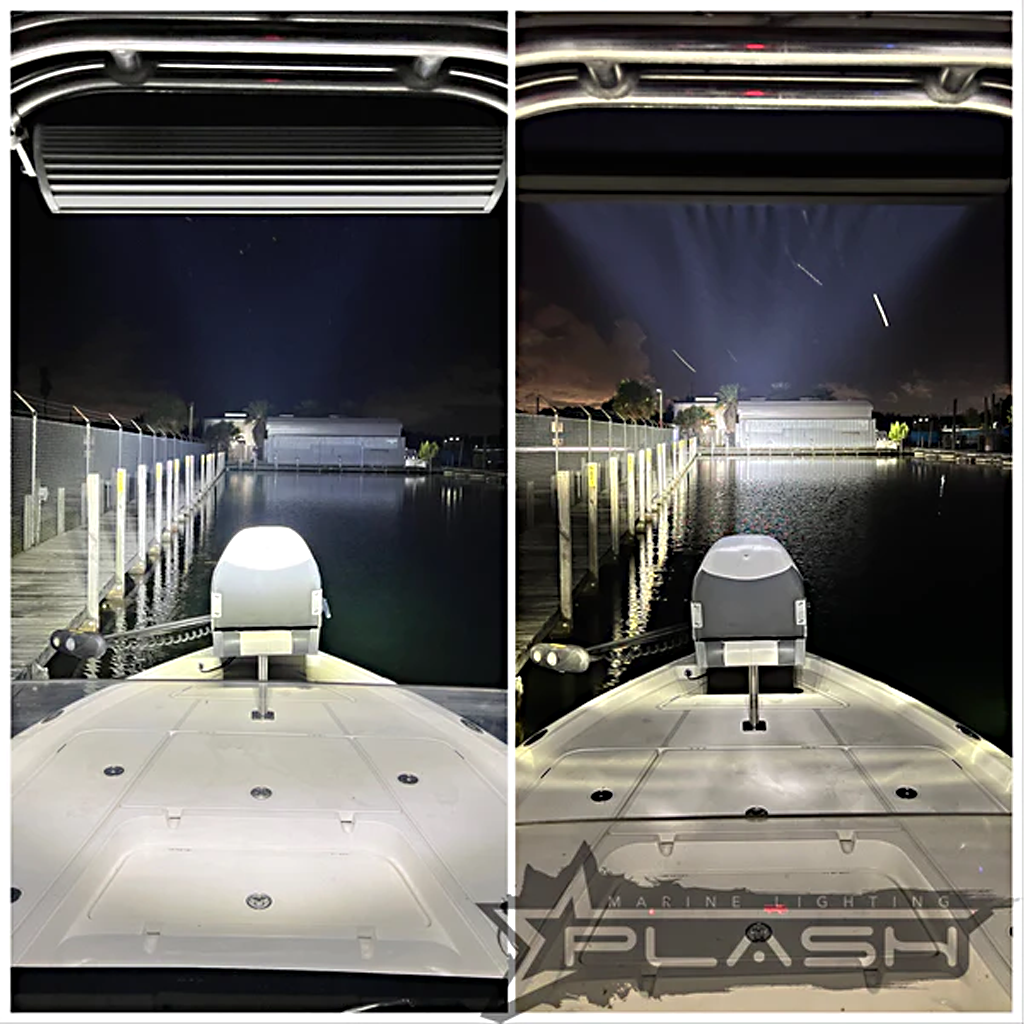

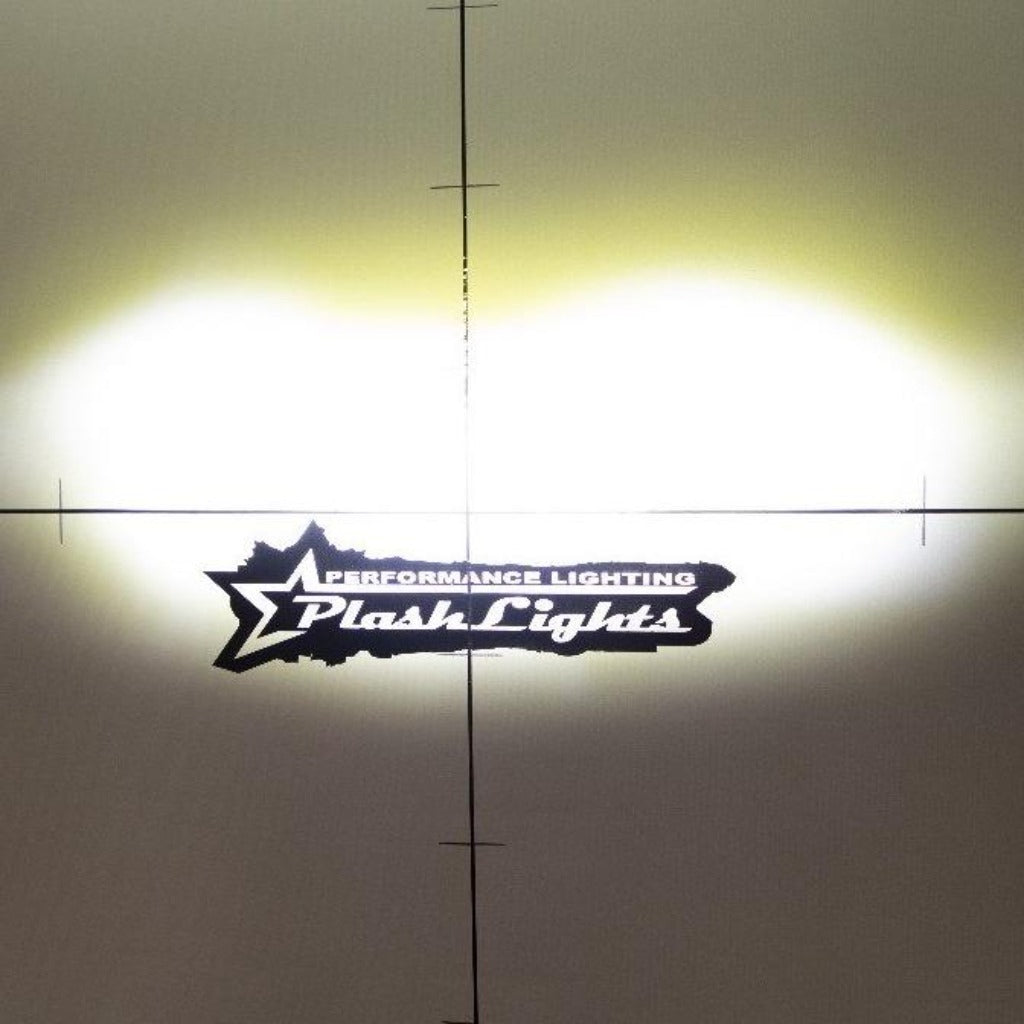

     This 20" SRX2 single row 20 inch (right image) is technically half as bright as our competitors 20 inch double row (left image), but with our new improved reflector design the light beam projects at the horizon where it is needed and not wasted on the deck or in the sky. You would think that the SRX2 single row is a brighter light bar, but "Brighter" is a subjective term.  The SRX2 light bar is more efficient and has the light directed where it need to be.  Not an offroad light bar beam pattern like all others use.

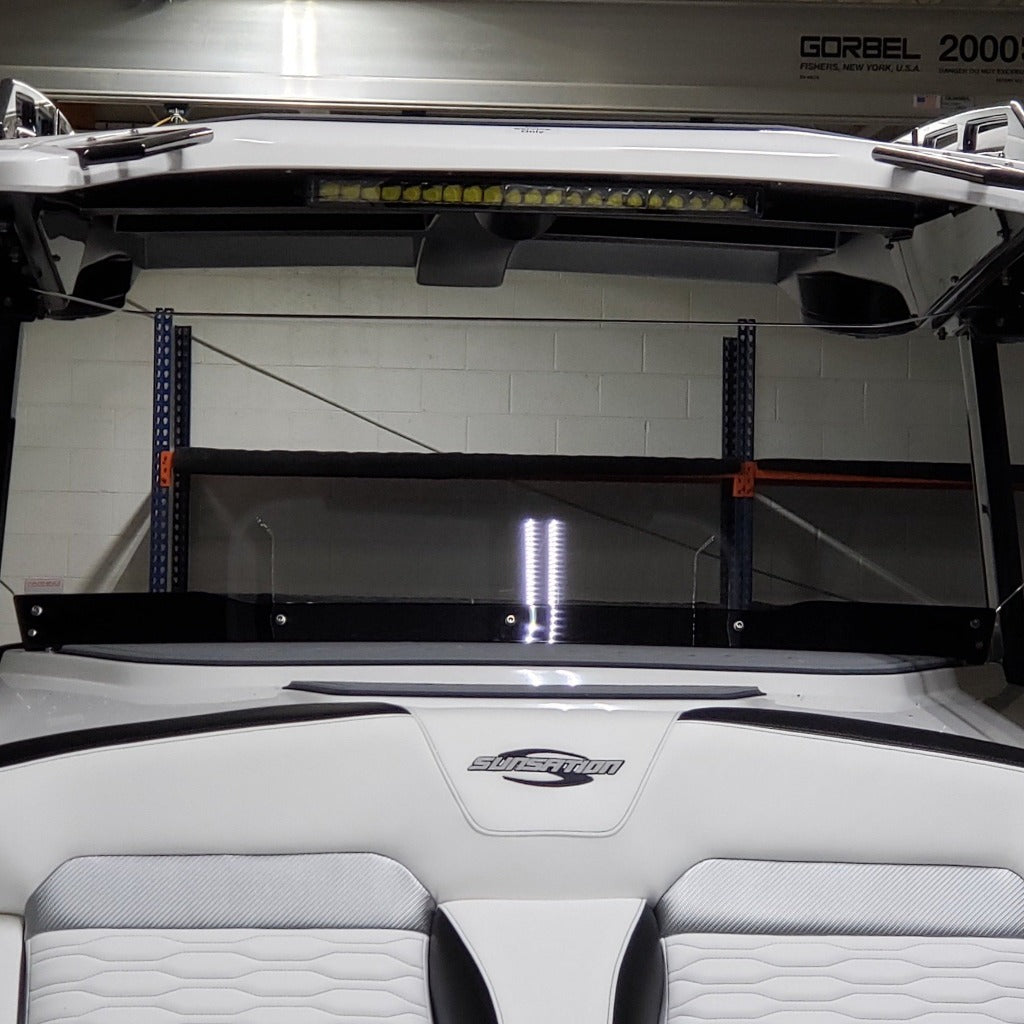

    Boat light bar with no bow reflection for driving
