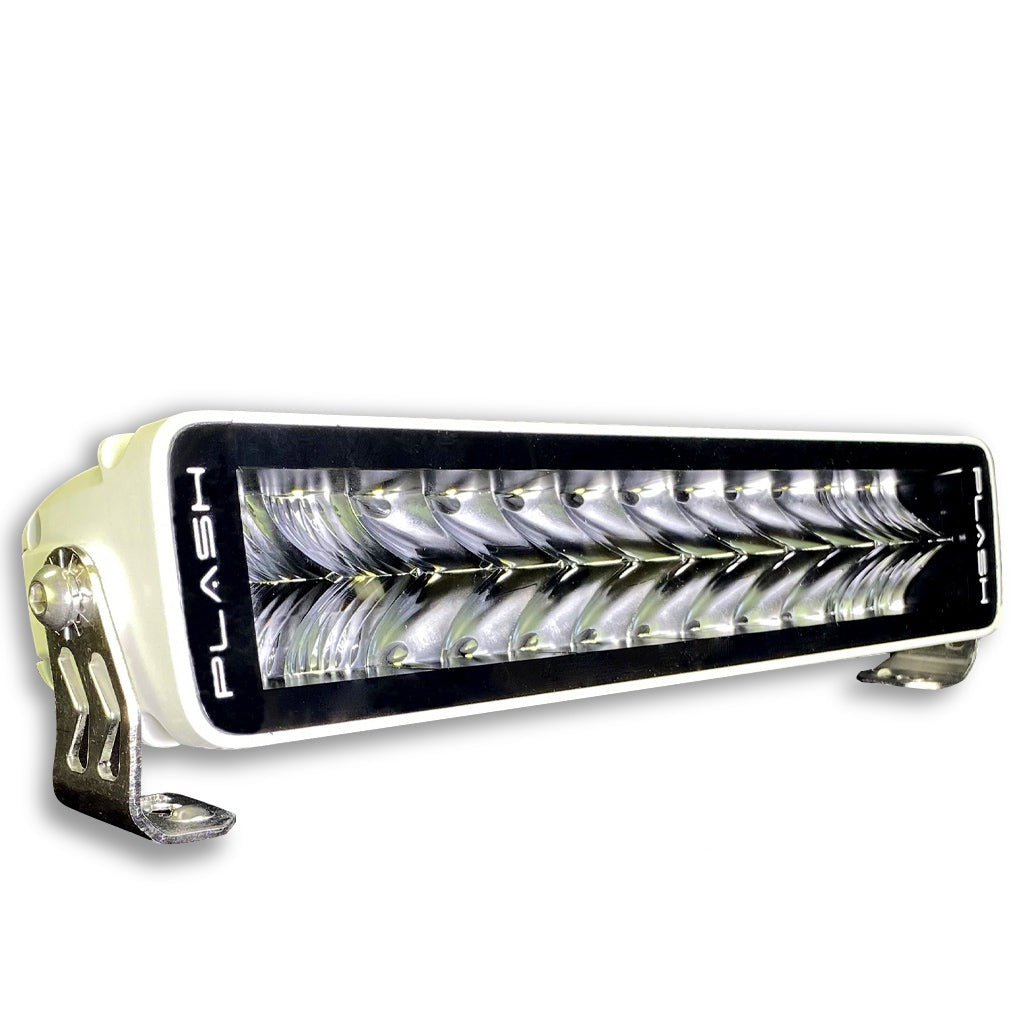

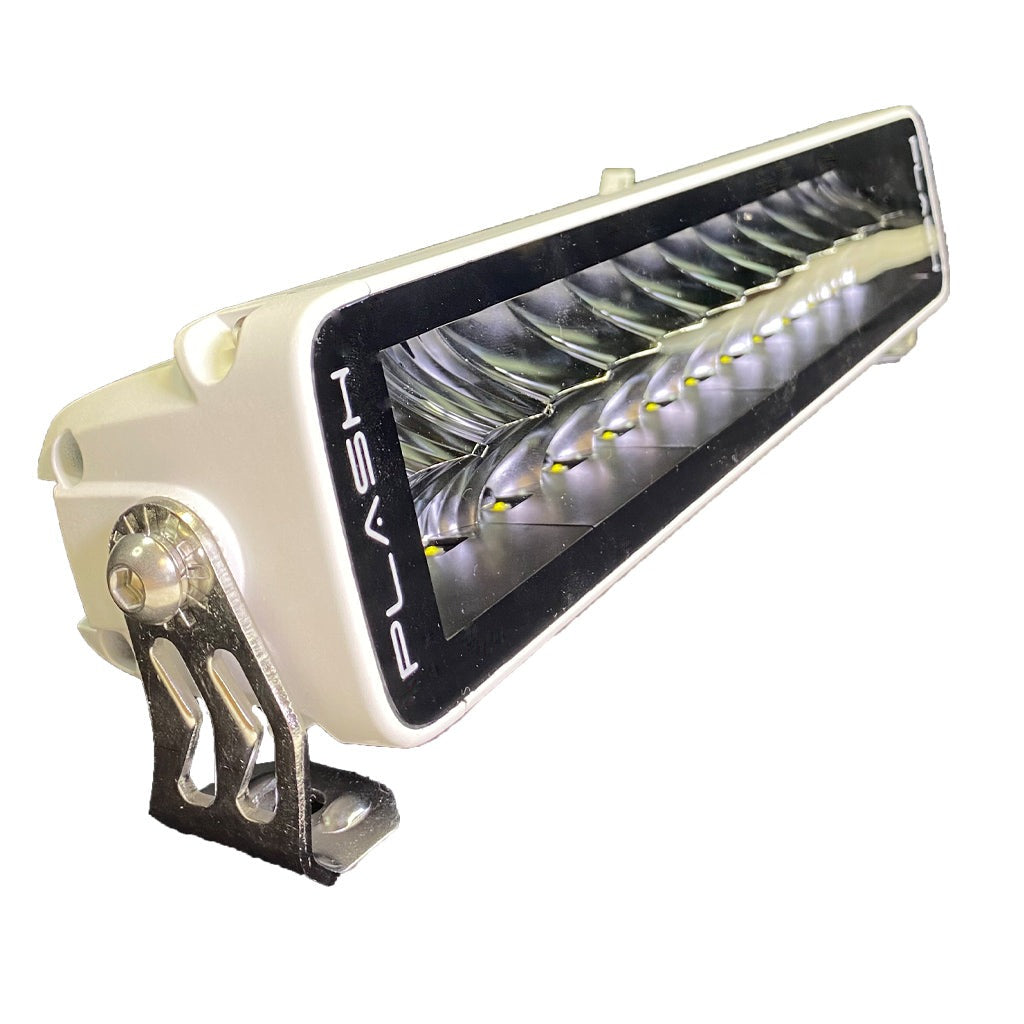

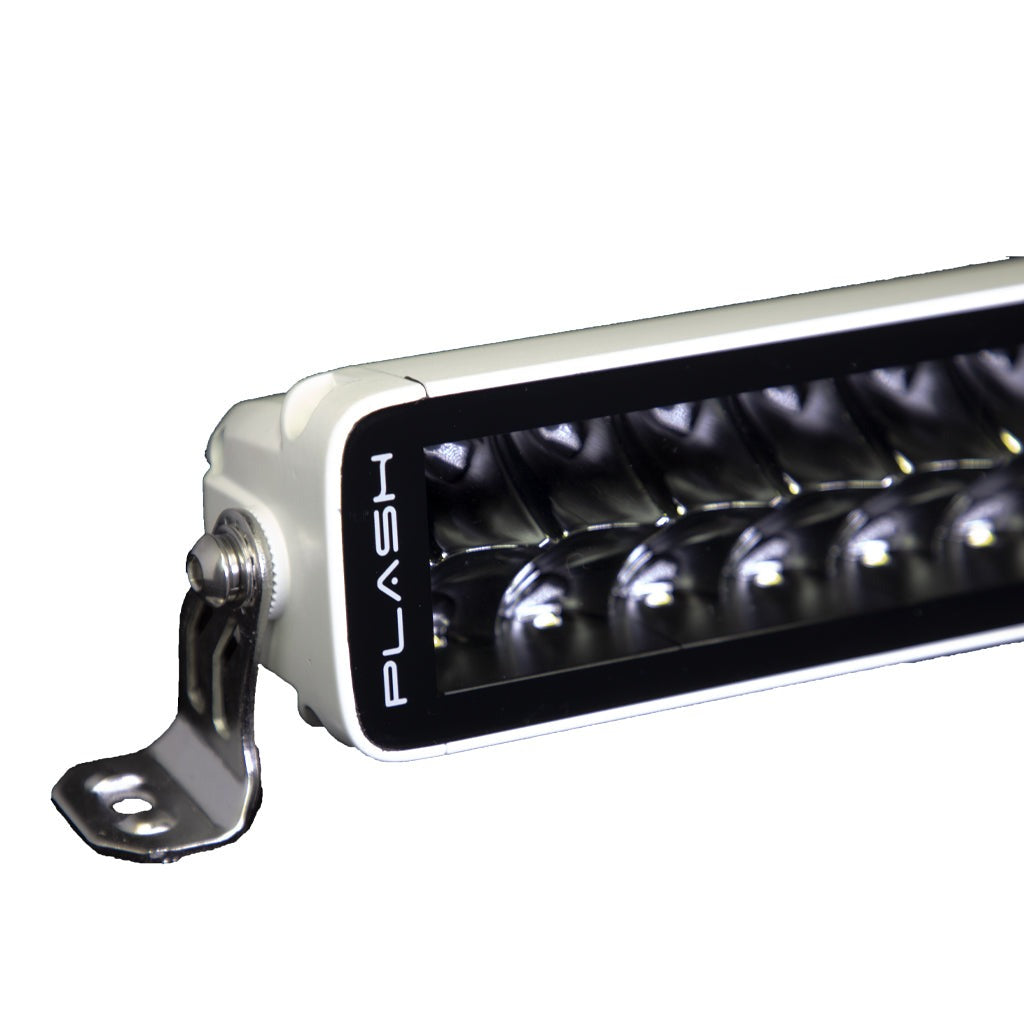

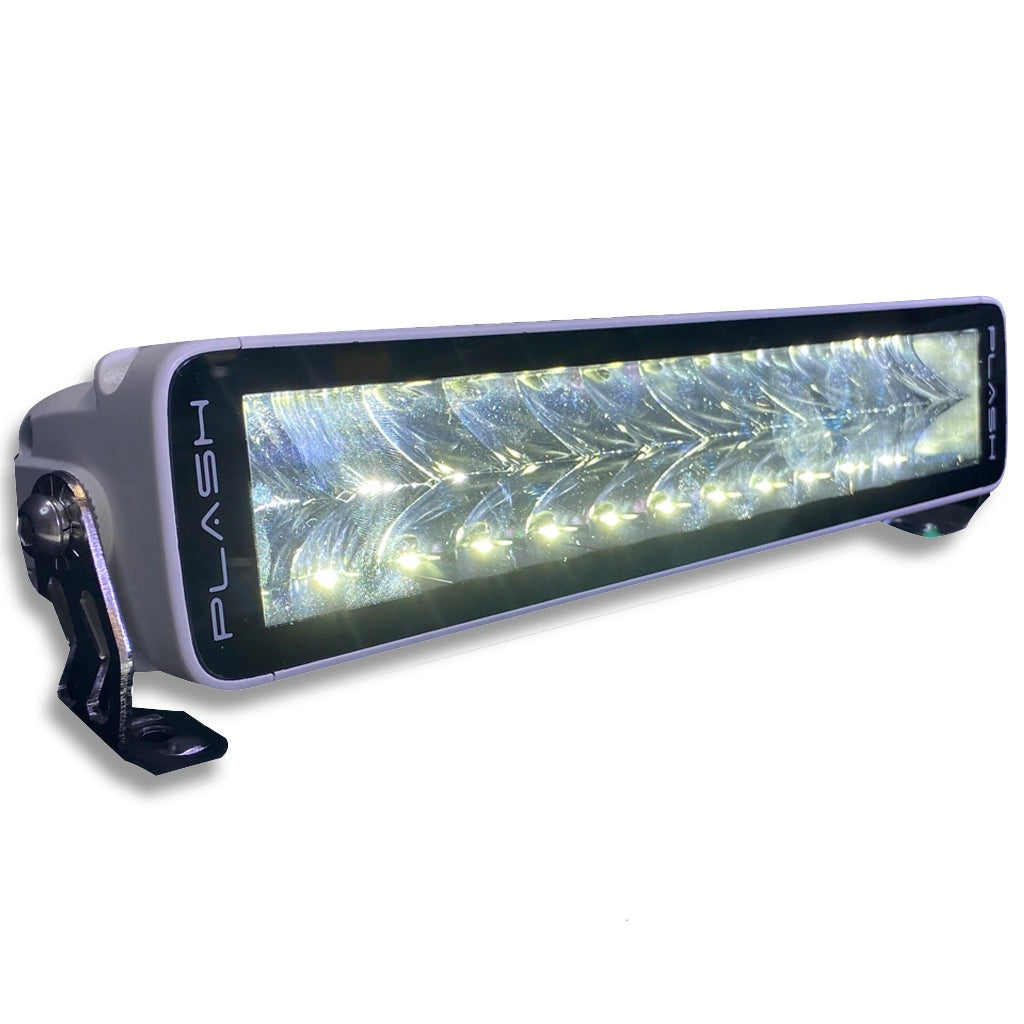

X2-Series 12" Double Row LED Light Bar - White Housing

The X2-Series Double Row Light Bar is a favorite for marine enthusiasts looking for top quality light bars for their boat. Featuring isolated dissimilar metals, an amazing beam pattern with minimum reflection on bow and a pressed fit assembly (less fasteners) this marine light bar will exceed your lighting expectations!

Whether you need a marine double row light bar, a truck LED light bar, or a UTV double row off-road light bar, the X2-Series delivers professional-grade performance in every size.

Want to compare lumen output, dimensions, and beam distance? Review the full X2-Series breakdown inside our Marine Catalog.

Also available: X2 12” LED Light Bar - Black Housing

Want a slimmer mounting option? See the comparable size in our SRX2-Series 10” Single Row LED Light Bar.

Key Features

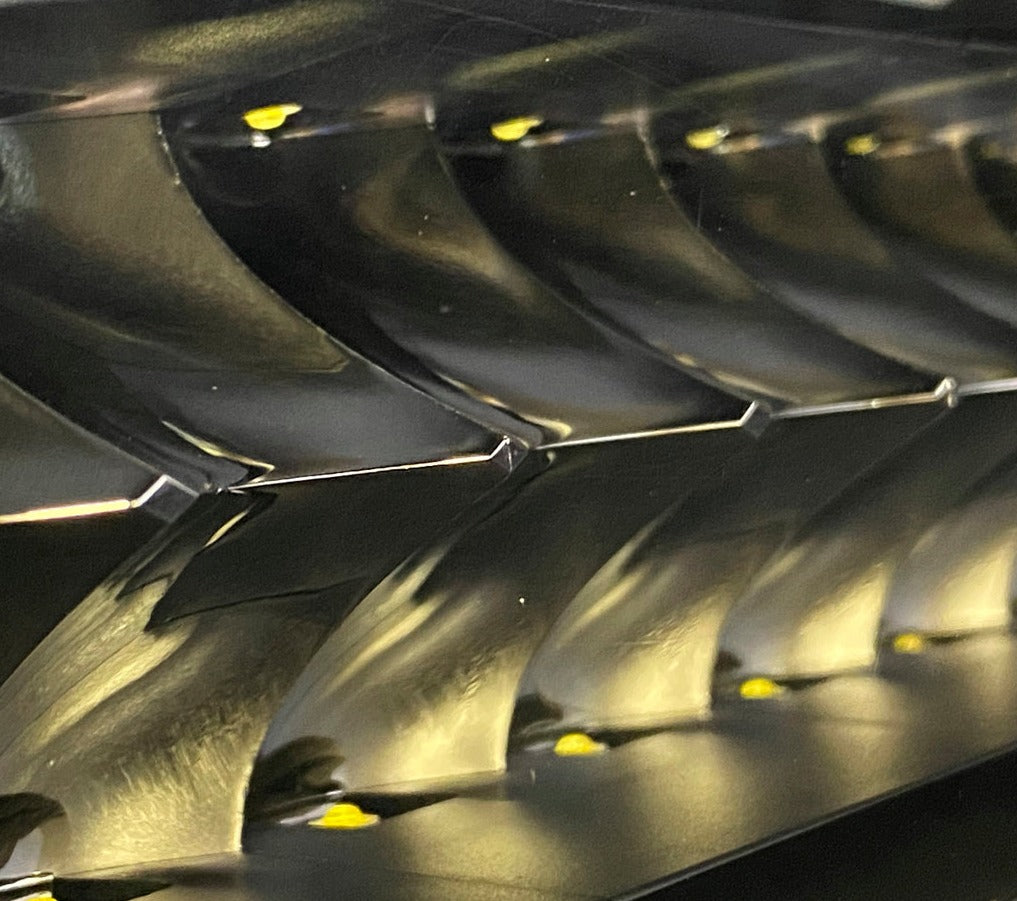

• Double Row Precision Beam – Equipped with our new hooded reflector and upgraded lens to reduce unwanted glare while projecting powerful light toward the horizon. A narrower profile and optimized beam pattern feature a crisp cut-off line that focuses light towards the horizon and minimizes wasted illumination below the mount point.

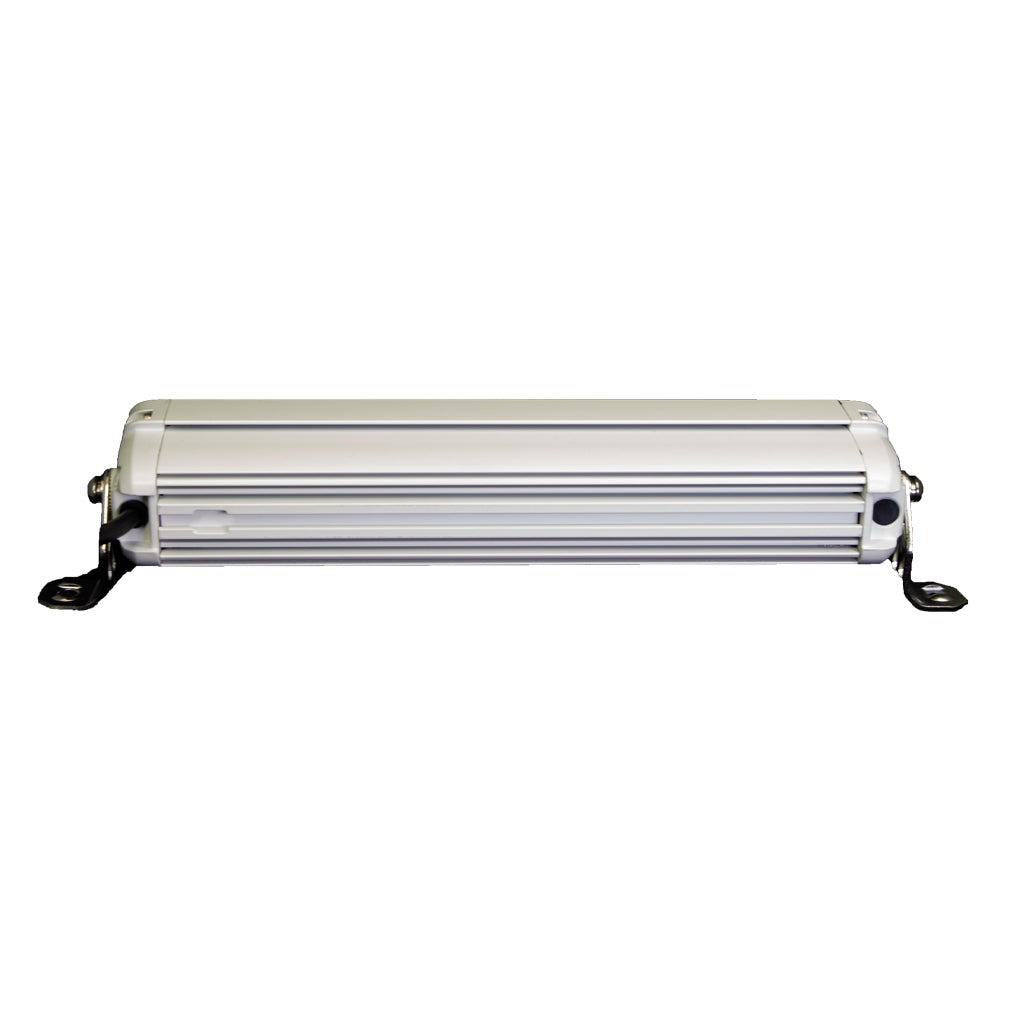

• Marine-Grade Durable Construction – IP67 waterproof rating and constructed as a single unit body made with chrome coated stainless hardware that eliminates dissimilar metals & corrosion. Durable scratch resistant high impact polycarbonate lens. Chrome Coated stainless hardware. Extruded 6063 Aluminum body. New design to improve aerodynamics (noise reducers are not required).

• High-Output OSRAM LEDs – Premium 5W OSRAM LED chips for cool, bright, long-lasting illumination

• Advanced Thermal Control – Integrated TCS (Temperature Control System) maintains peak performance and extends LED life

• Electronics Friendly – Minimal RFI/EMC interference with protection for sensitive VHF/AIS systems. Over/Under and Reverse Polarity Protection.

Specifications

• Model: X2-12 (Double Row)

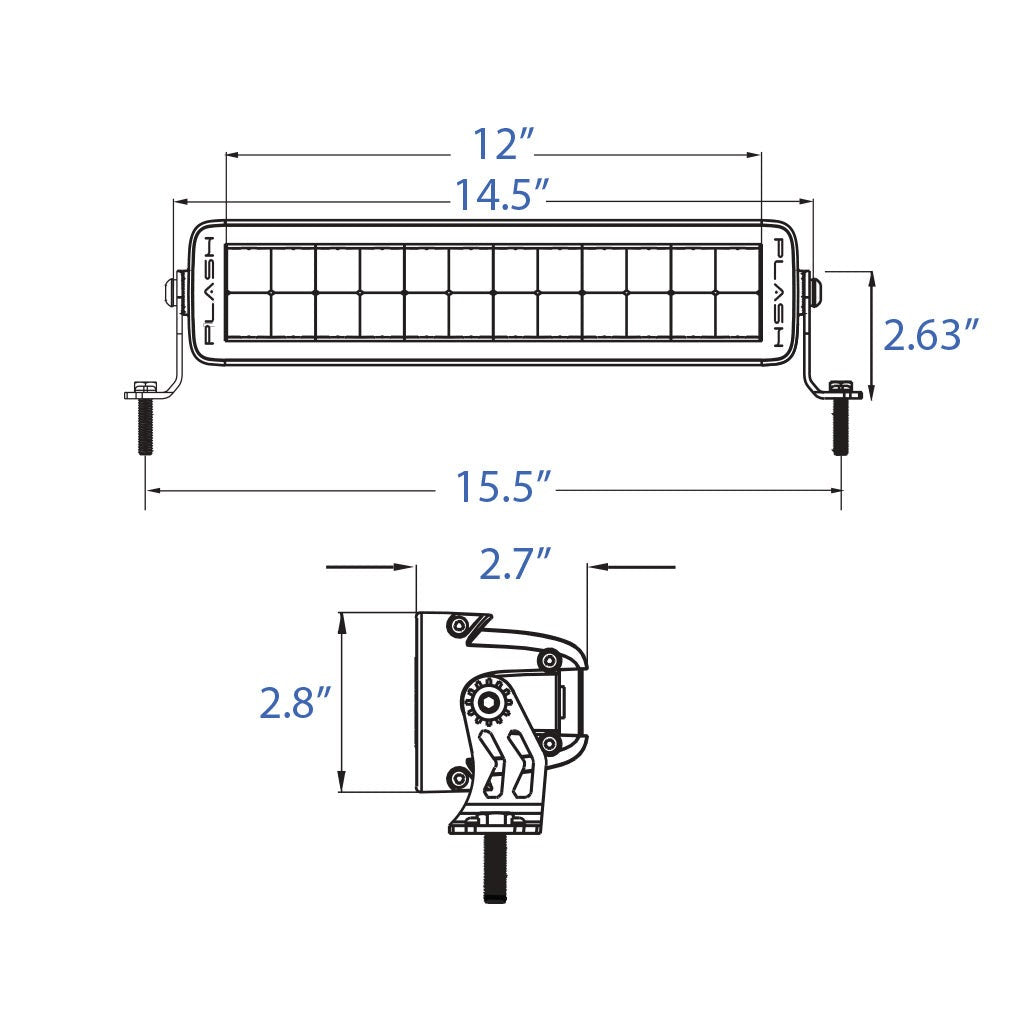

• Length: 12″
• LED Type: 5W OSRAM CSHP
• Total Output: ~10,080 lumens*
• Wattage: ~120W*
• Beam Pattern: Combination / Horizon-Focused
• Waterproof Rating: IP67
• Color Temperature: 6000K Cool White
• Voltage: 9~32V DC
• Power: 4.3 amps @ 12V DC / 2.2 amps @ 24V DC
• Max Distance: 3,973 ft
• Operating Temp: -40°F to 145°F
• Lifetime: 50,000 Hours or 5 years of continuous use

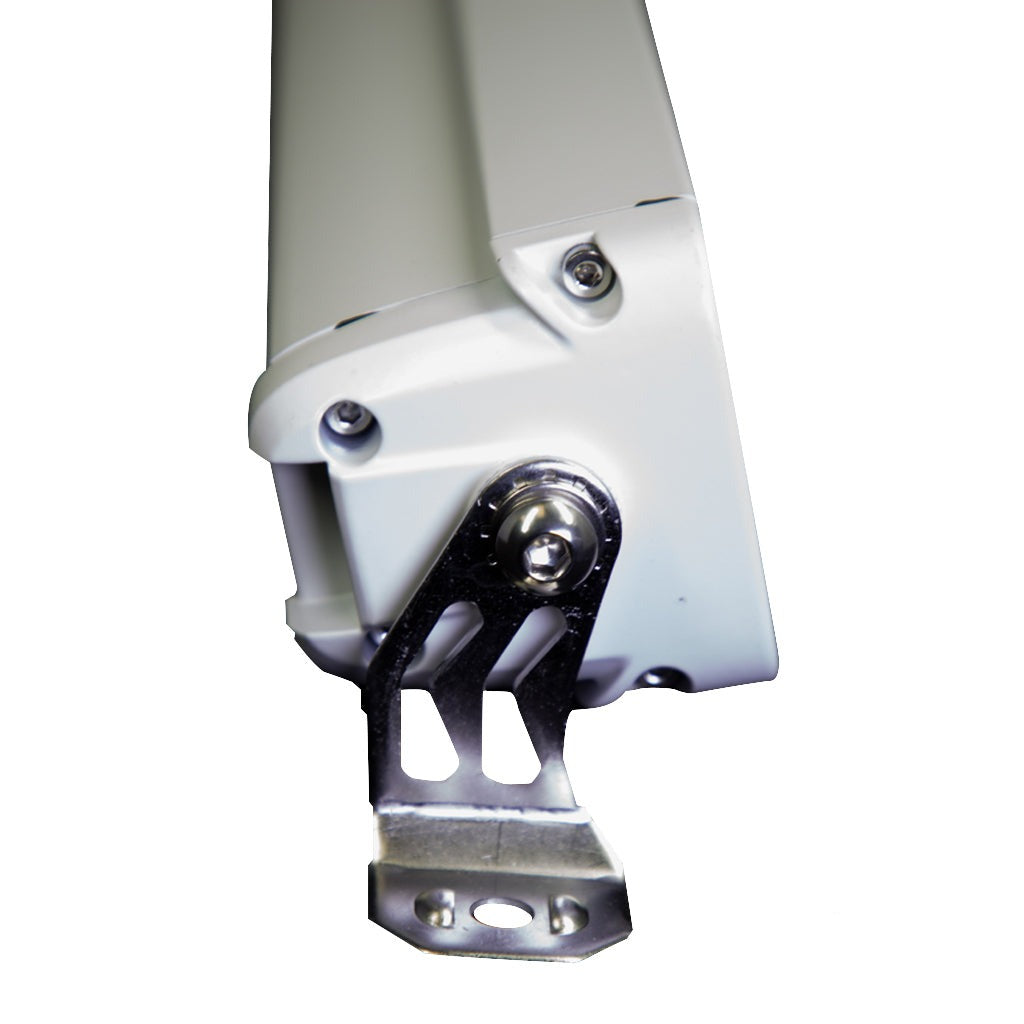

• Mounting: Adjustable corrosion-resistant brackets included. MIL 840-STD 8.6G Vibration Complaint.

*Actual output and wattage can vary slightly by unit and voltage input

INCLUDES

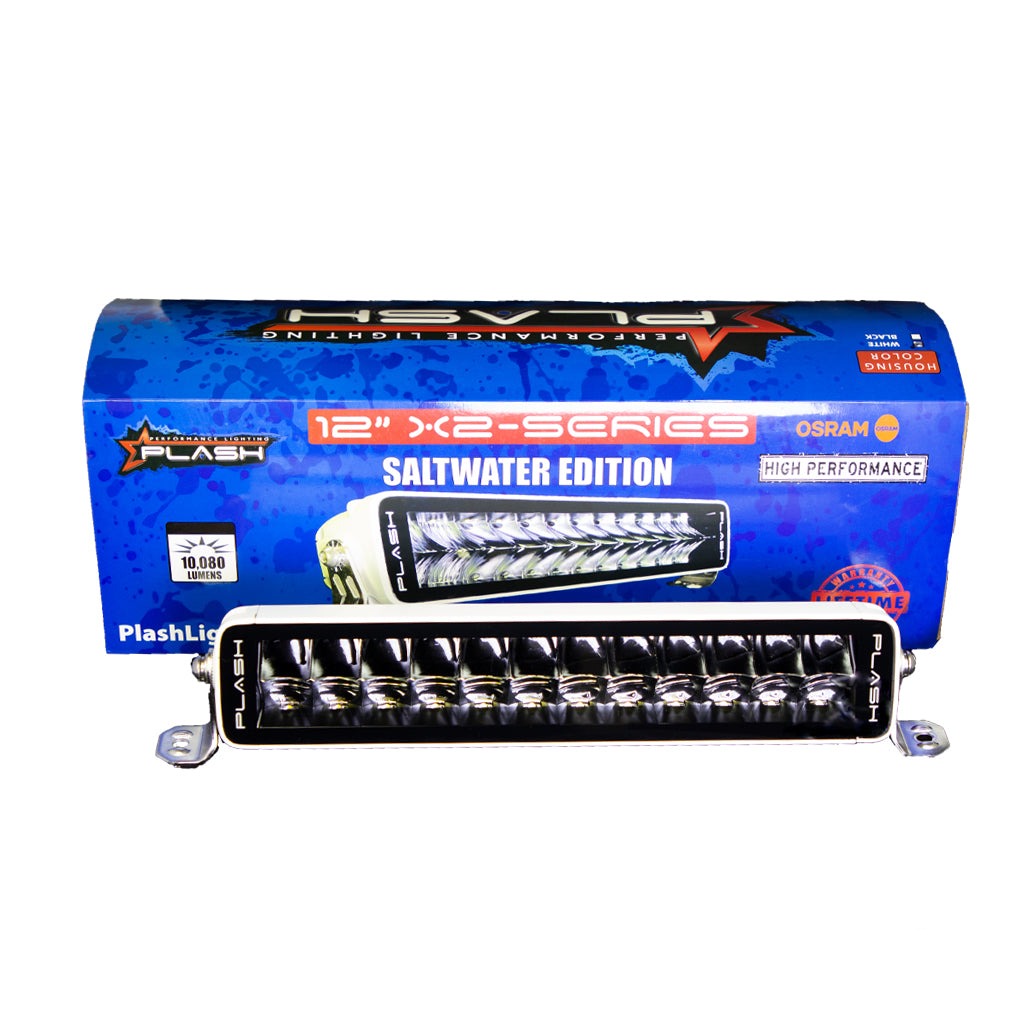

• X2-Series 12" Double Row LED Light Bar (White Housing)
• (2) Chrome Coated Mounting Brackets
• Chrome Coated Stainless Steel Hardware

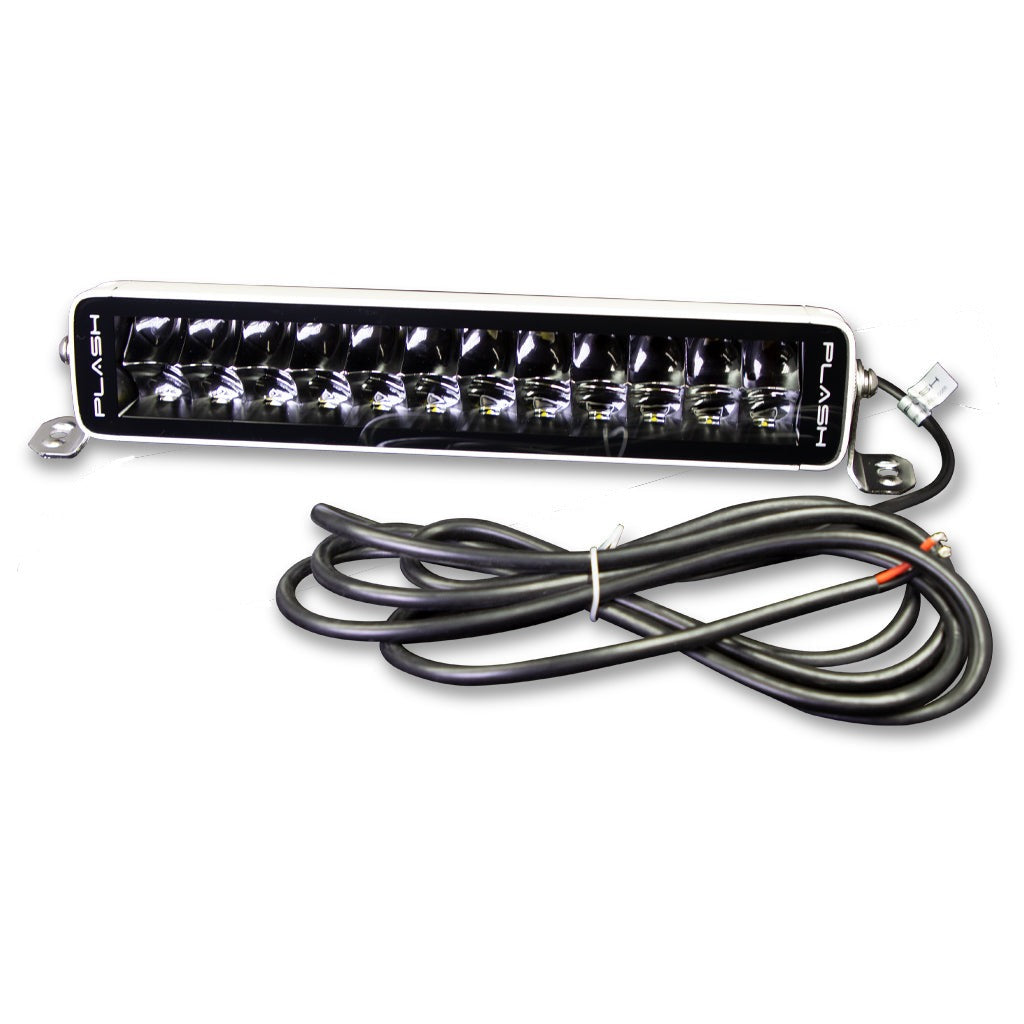

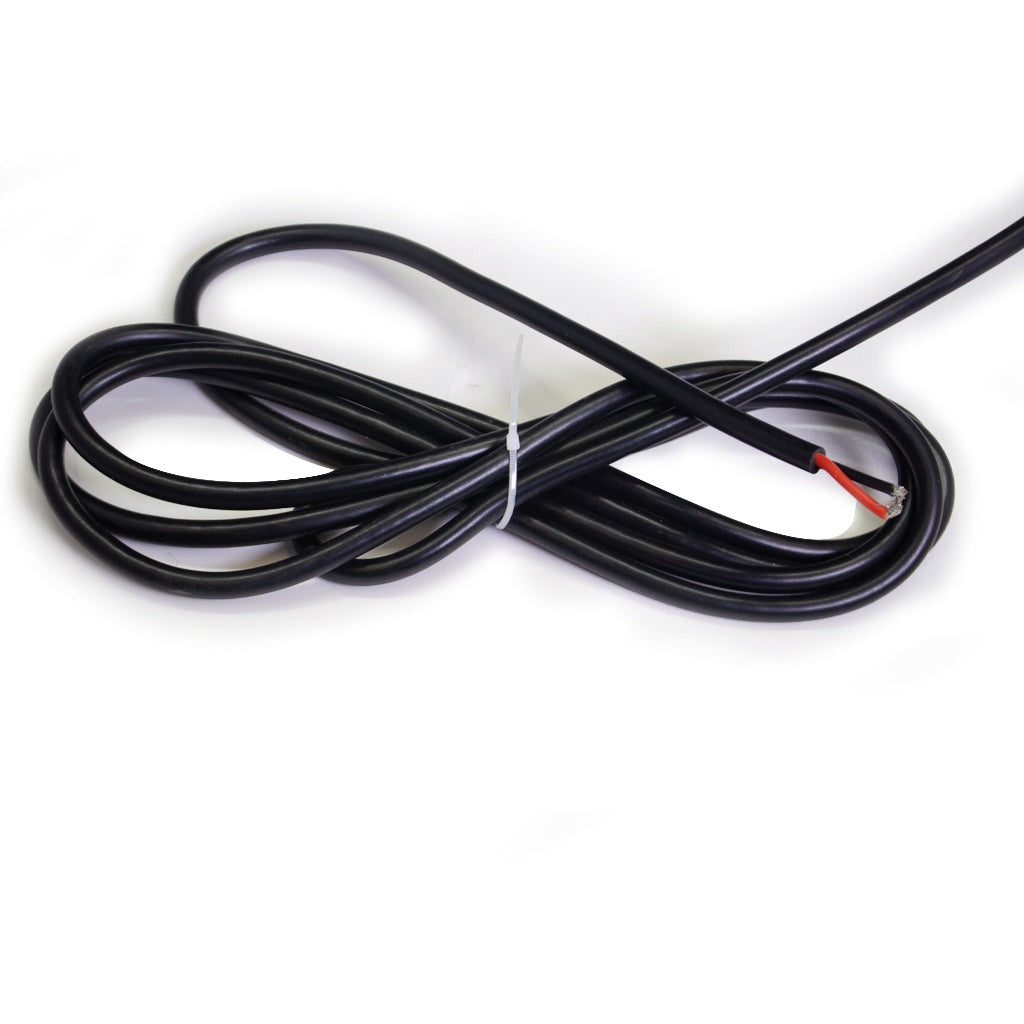

• Copper Tinned Marine Grade Extended Power Wire (9ft)
• Installation Manual
