SRX2 50" Curved Single Row LED Light Bar - White Housing

SRX2-Series Single Row White Marine Housing 50" Curved LED Light Bar! The Best Light Bar for Center Console Boats!

The SRX2-Series LED Light Bar is specifically made to project the light on the horizon and not on the bow of your boat.  There is a crisp cut off line where no light shines down from the bottom of the light bar.  Efficiency is the key here.  The light is where you need it and not where you don't.

Isolated Dissimilar Metals. Now with AlloChrome 4200+™ Coated Stainless Hardware that is Rated for 4200+ Hours of Salt Spray.

Amazing Beam Pattern with Minimum Reflection on Bow. Pressed Fit Assembly = Less Fasteners. Extended Power Wire for Easy Installation.

Want to compare lumen output, dimensions, and beam distance? Review the full SRX2-Series breakdown inside our Marine Catalog.

Need more brightness? Upgrade to the equivalent size in our X2-Series 50" Double Row LED Light Bar.

Key Features

• Single Row Precision Beam – Narrower profile and optimized beam pattern feature a crisp cut-off line that focuses light towards the horizon and minimizes wasted illumination below the mount point.

• Marine-Grade Durable Construction – IP67 waterproof rating and constructed as a single unit body made with chrome coated stainless hardware that eliminates dissimilar metals & corrosion. Durable scratch resistant high impact polycarbonate lens. Chrome Coated stainless hardware. Extruded 6063 Aluminum body. New design to improve aerodynamics (noise reducers are not required).

• High-Output OSRAM LEDs – Premium 5W OSRAM LED chips for cool, bright, long-lasting illumination

• Advanced Thermal Control – Integrated TCS (Temperature Control System) maintains peak performance and extends LED life

• Electronics Friendly – Minimal RFI/EMC interference with protection for sensitive VHF/AIS systems. Over/Under and Reverse Polarity Protection.

Specifications

• Model: SRX2-50 (Single Row)
• Length: 50″
• LED Type: 5W OSRAM CSHP
• Total Output: ~22,680 lumens*
• Wattage: ~270W*
• Beam Pattern: Combination / Horizon-Focused
• Waterproof Rating: IP67
• Color Temperature: 5700K Cool White
• Voltage: 9~32V DC
• Power: 19.2 amps @ 12V DC / 10.1 amps @ 24V DC
• Max Distance: 4,183 ft
• Operating Temp: -40°F to 145°F
• Lifetime: 50,000 Hours or 5 years of continuous use

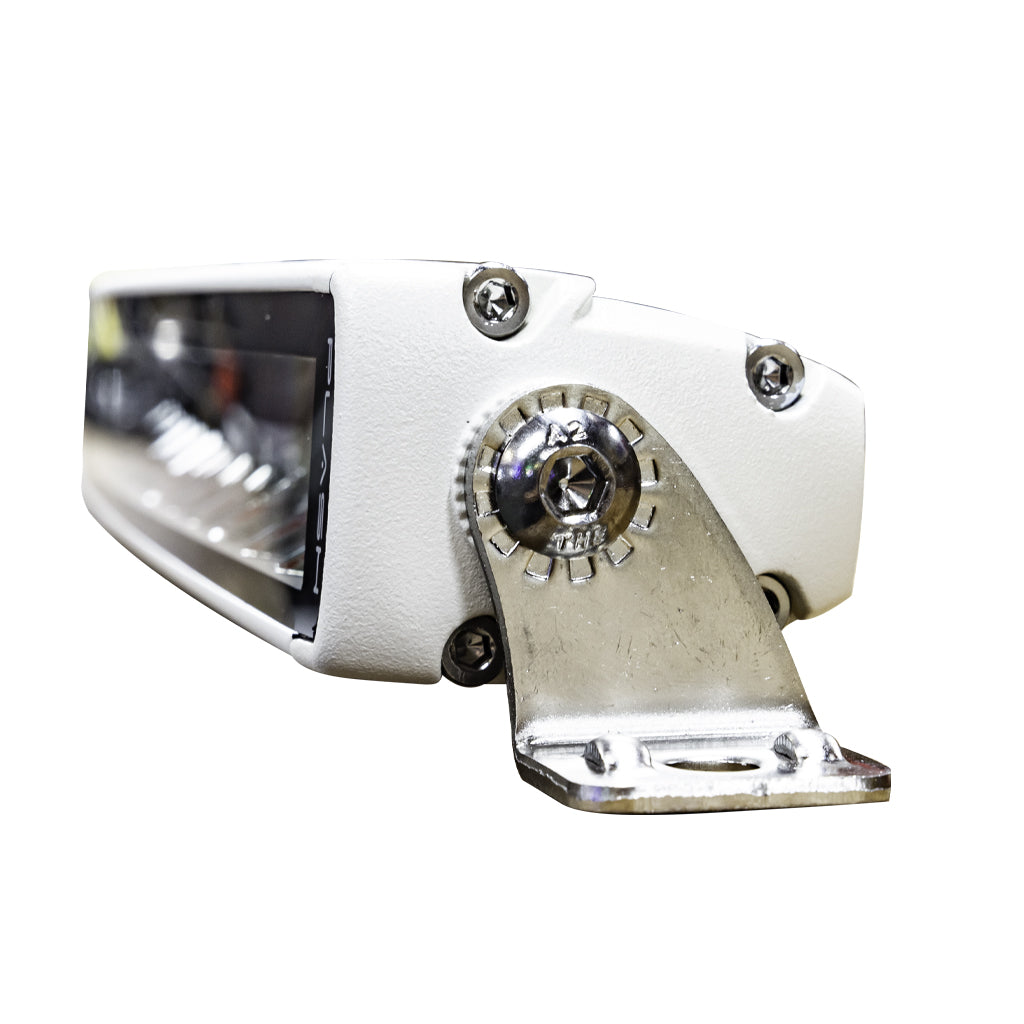

• Mounting: Adjustable corrosion-resistant brackets included. MIL 840-STD 8.6G Vibration Complaint.

*Actual output and wattage can vary slightly by unit and voltage input

INCLUDES

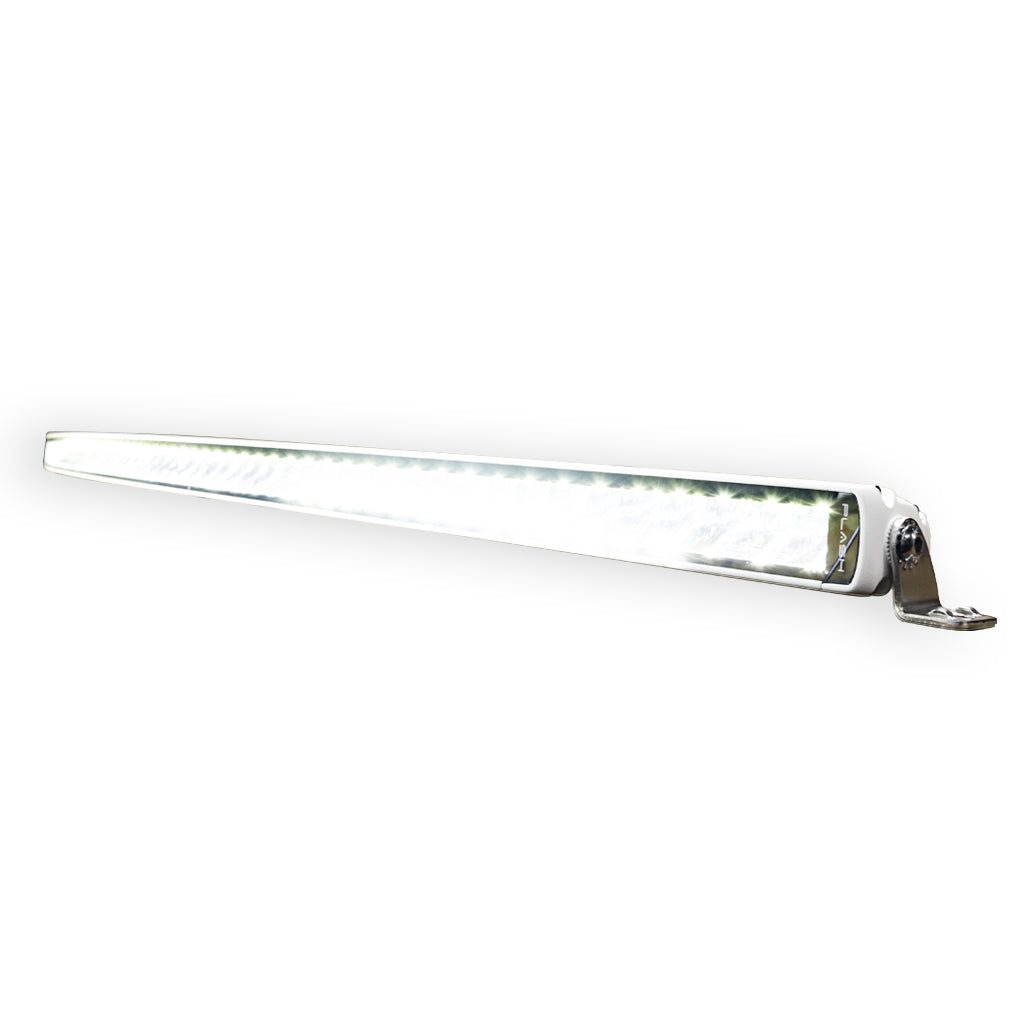

• SRX2-Series 50″ Single Row Curved LED Light Bar (White Housing)

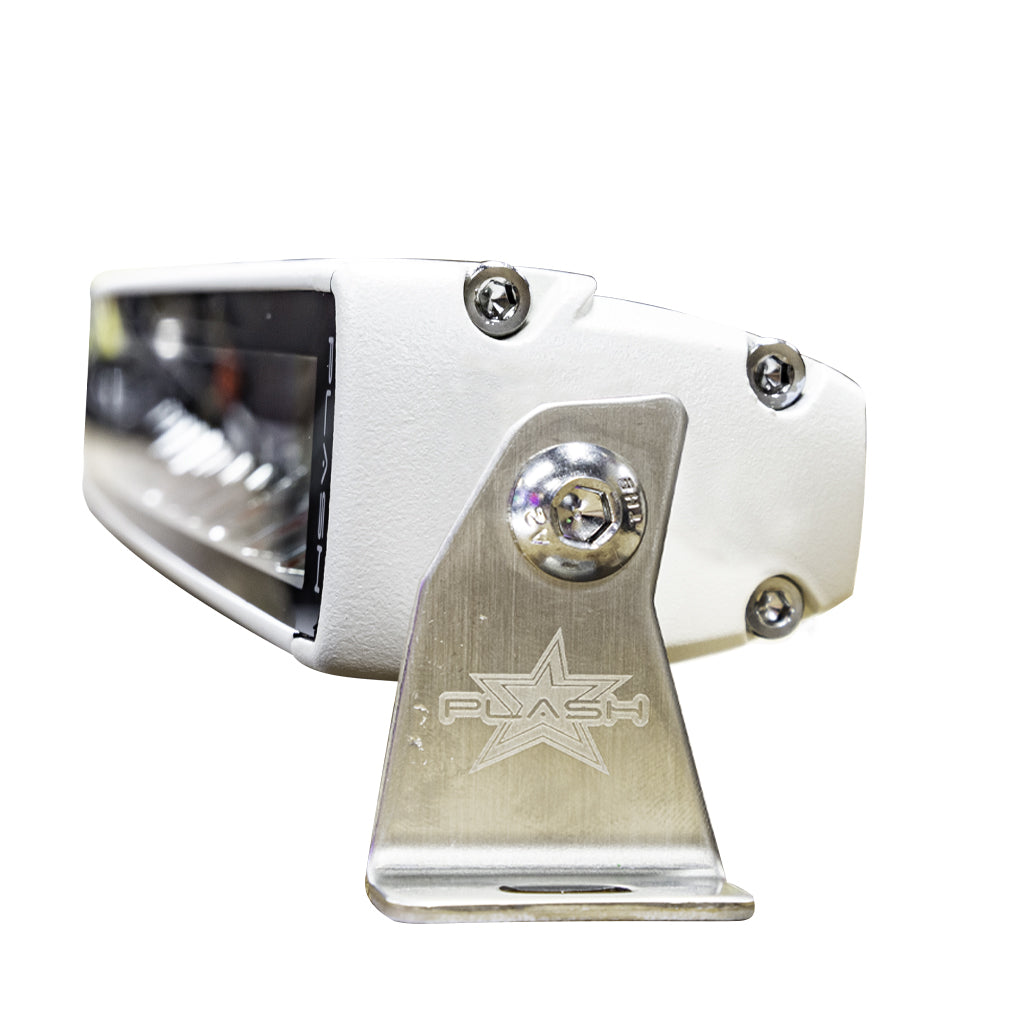

• (2) Chrome Coated Mounting Brackets
• Chrome Coated Stainless Steel Hardware

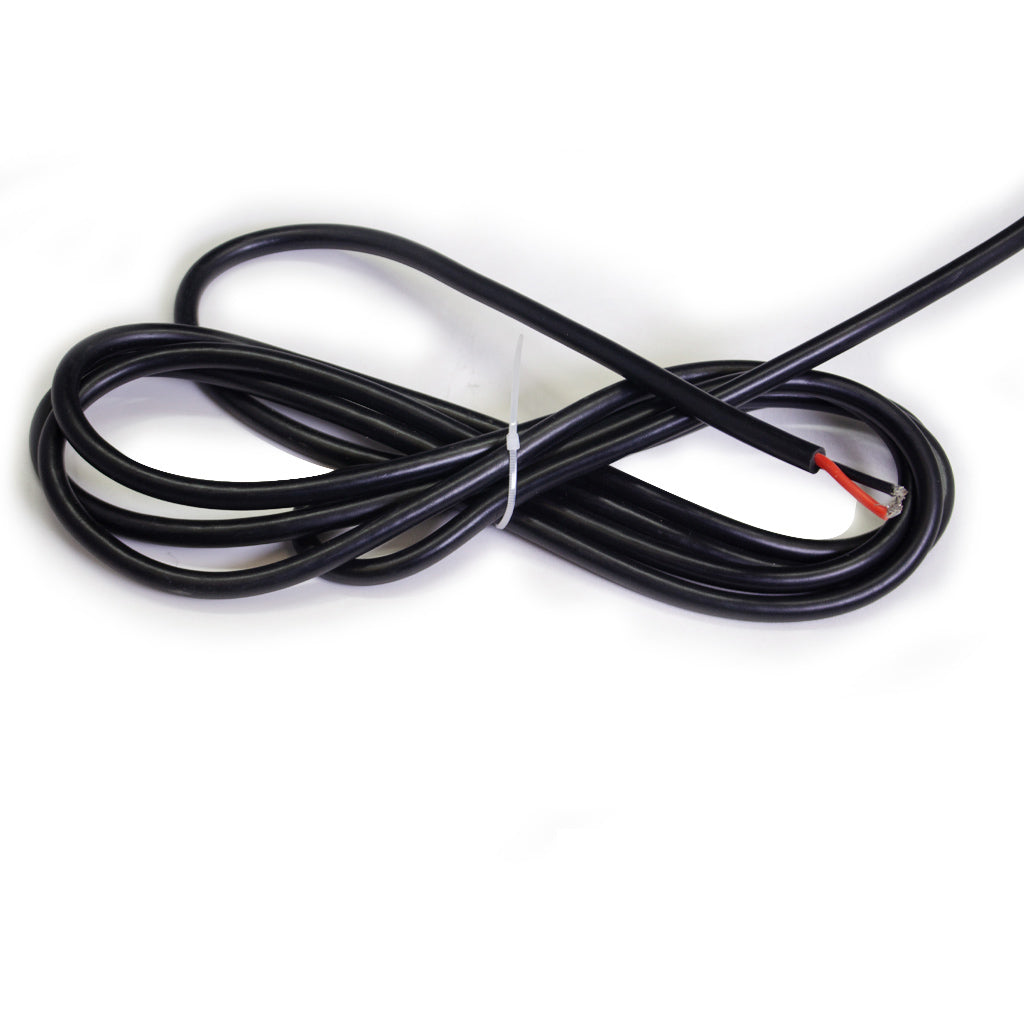

• Copper Tinned Marine Grade Extended Power Wire (9ft)

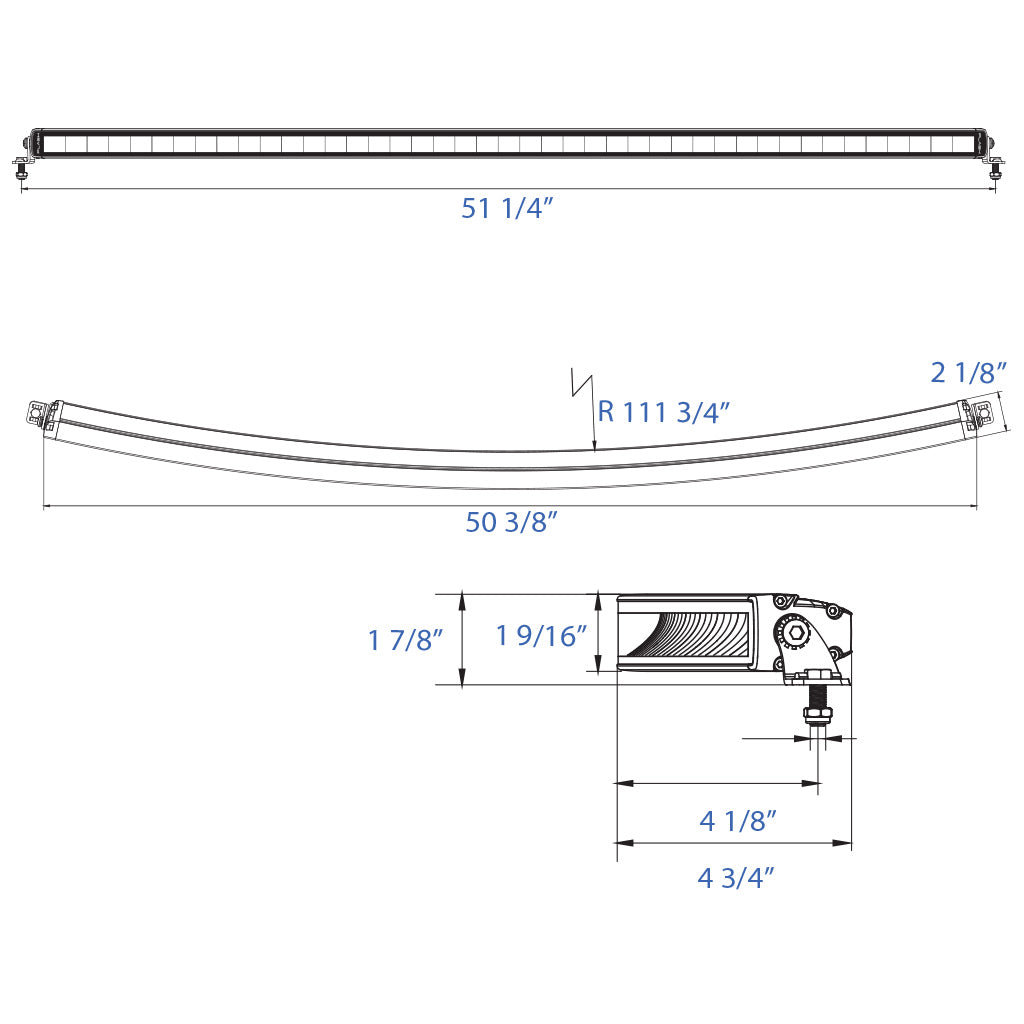

DIMENSIONS
