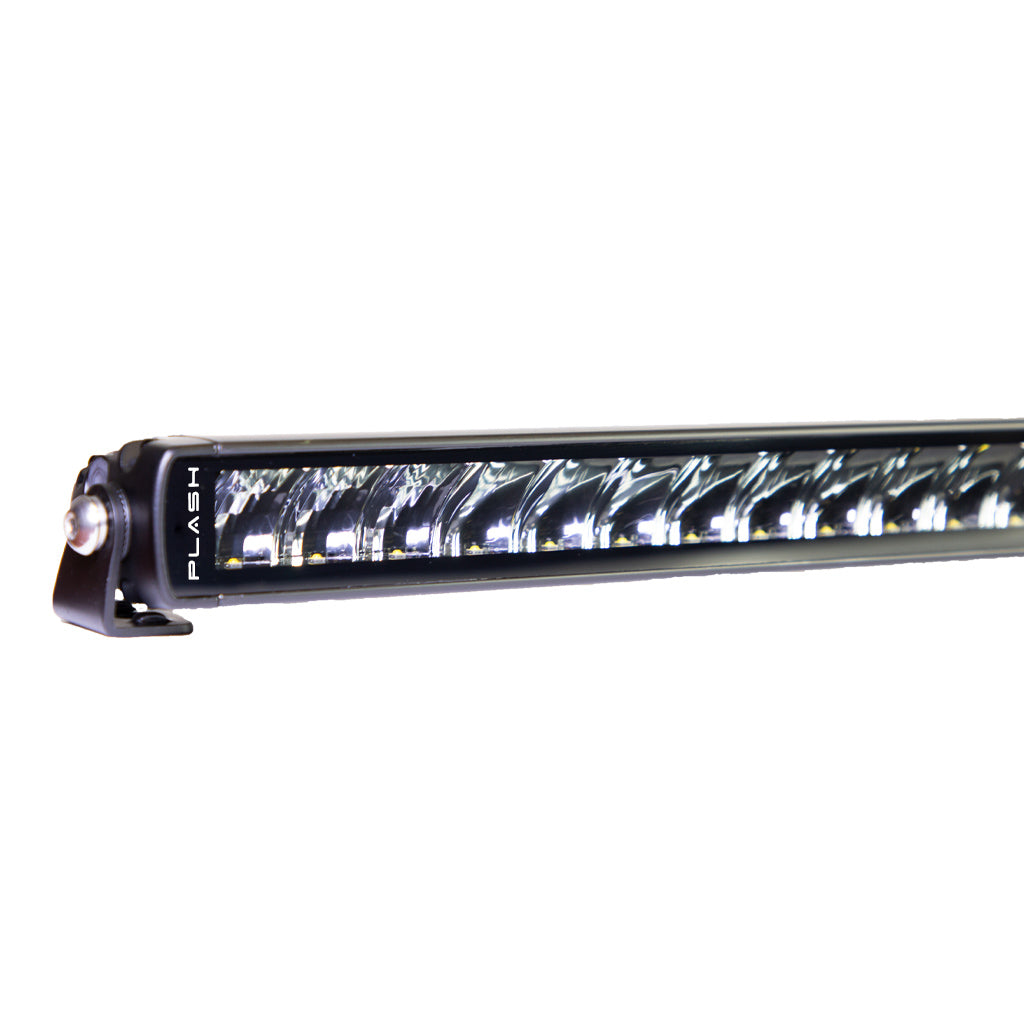

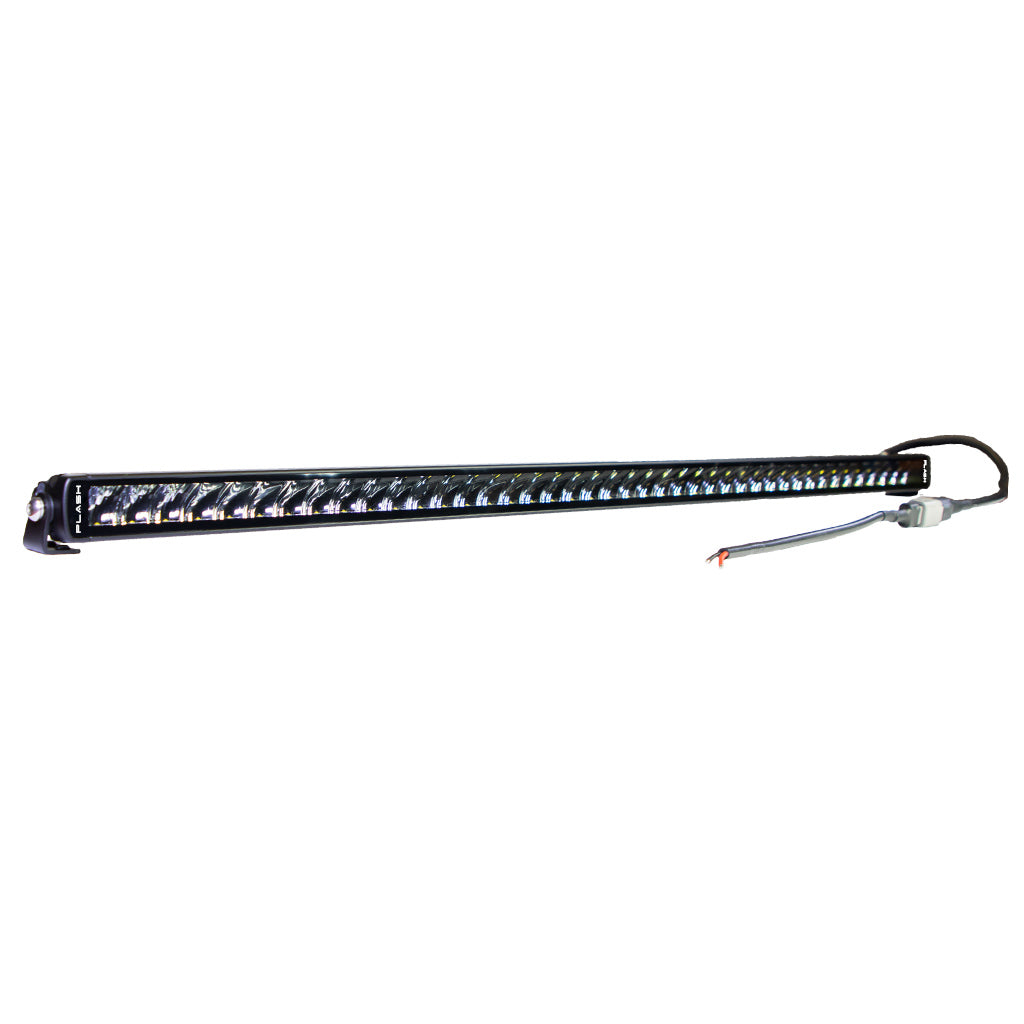

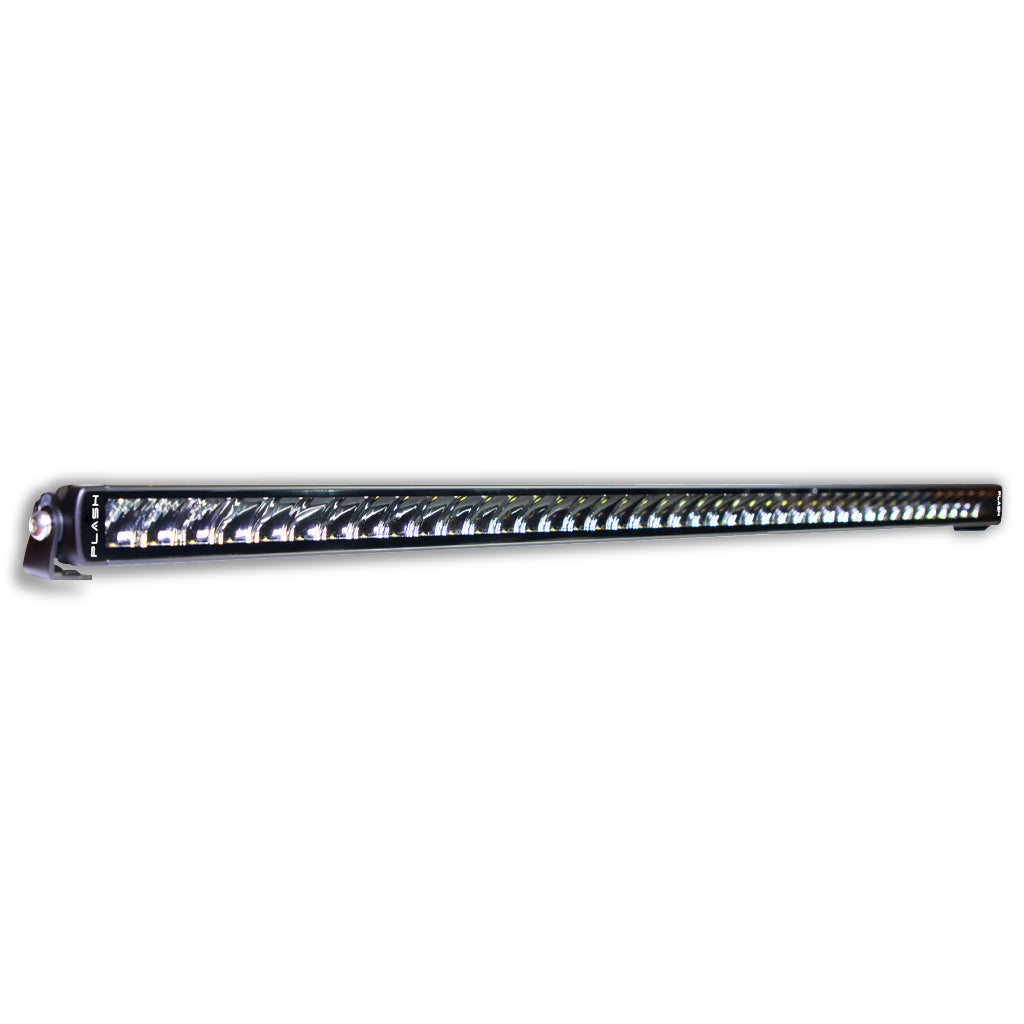

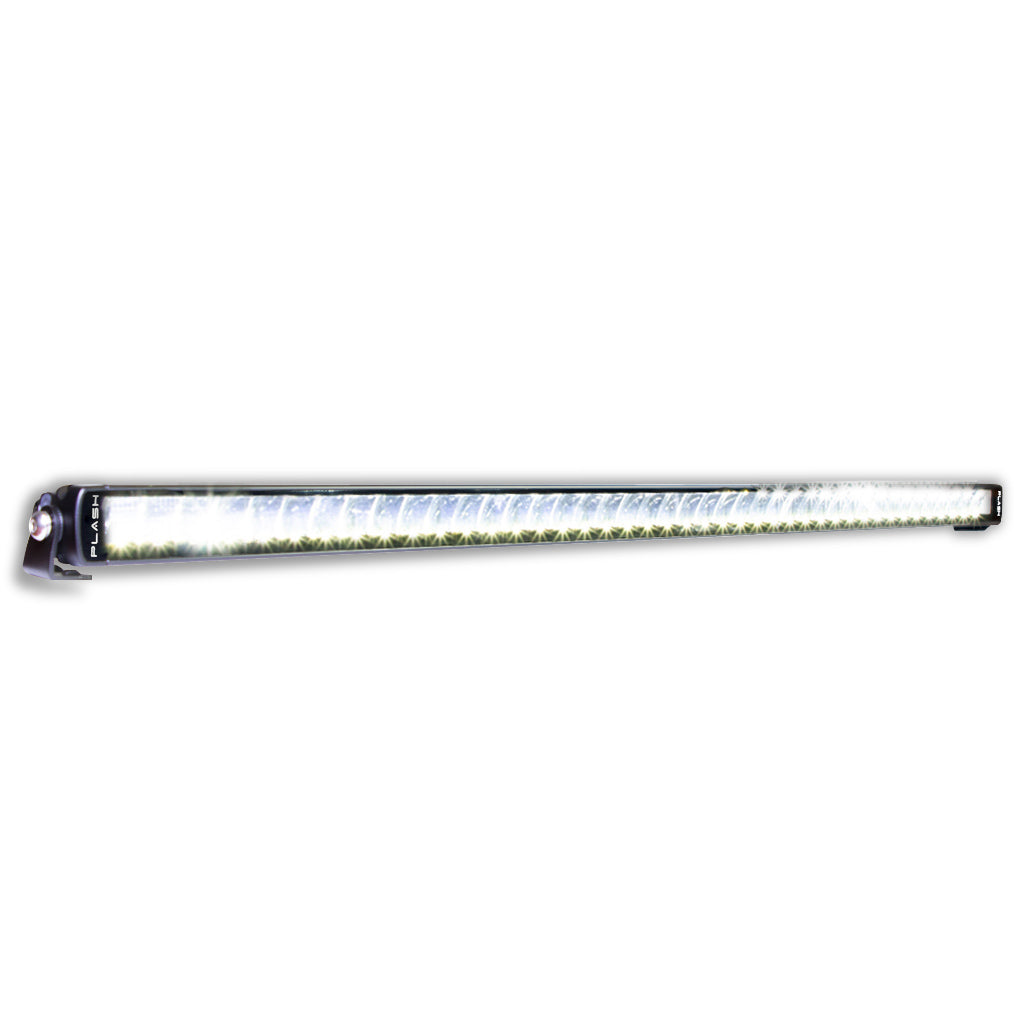

SRX2 40" Single Row LED Light Bar - Black Housing

SRX2-Series Single Row Black Housing 40" LED Light Bar!  The Best Light Bar for Center Console Boats!

Isolated Dissimilar Metals. Amazing Beam Pattern with Minimum Reflection on Bow. Pressed Fit Assembly = Less Fasteners. Extended Power Wire for Easy Installation.

Want to compare lumen output, dimensions, and beam distance? Review the full SRX2-Series breakdown inside our Marine Catalog.

Need more brightness? Upgrade to the equivalent size in our X2-Series Double Row LED Light Bars.

Key Features

• Single Row Precision Beam – Narrower profile and optimized beam pattern feature a crisp cut-off line that focuses light towards the horizon and minimizes wasted illumination below the mount point.

• Marine-Grade Durable Construction – IP67 waterproof rating and constructed as a single unit body made with chrome coated stainless hardware that eliminates dissimilar metals & corrosion. Durable scratch resistant high impact polycarbonate lens. Chrome Coated stainless hardware. Extruded 6063 Aluminum body. New design to improve aerodynamics (noise reducers are not required).

• High-Output OSRAM LEDs – Premium 5W OSRAM LED chips for cool, bright, long-lasting illumination

• Advanced Thermal Control – Integrated TCS (Temperature Control System) maintains peak performance and extends LED life

• Electronics Friendly – Minimal RFI/EMC interference with protection for sensitive VHF/AIS systems. Over/Under and Reverse Polarity Protection.

Specifications

• Model: SRX2-40 (Single Row)
• Length: 40″
• LED Type: 5W OSRAM CSHP
• Total Output: ~17,640 lumens*
• Wattage: ~210W*
• Beam Pattern: Combination / Horizon-Focused
• Waterproof Rating: IP67
• Color Temperature: 6000K Cool White
• Voltage: 9~32V DC
• Power: 14.9 amps @ 12V DC / 7.8 amps @ 24V DC
• Max Distance: 4,183 ft
• Operating Temp: -40°F to 145°F
• Lifetime: 50,000 Hours or 5 years of continuous use
• Mounting: Adjustable corrosion-resistant brackets included. MIL 840-STD 8.6G Vibration Complaint.

*Actual output and wattage can vary slightly by unit and voltage input

INCLUDES

• SRX2-Series 40″ Single Row LED Light Bar (Black Housing)
• (2) Chrome Coated Mounting Brackets
• Chrome Coated Stainless Steel Hardware
• Copper Tinned Marine Grade Extended Power Wire (9ft)

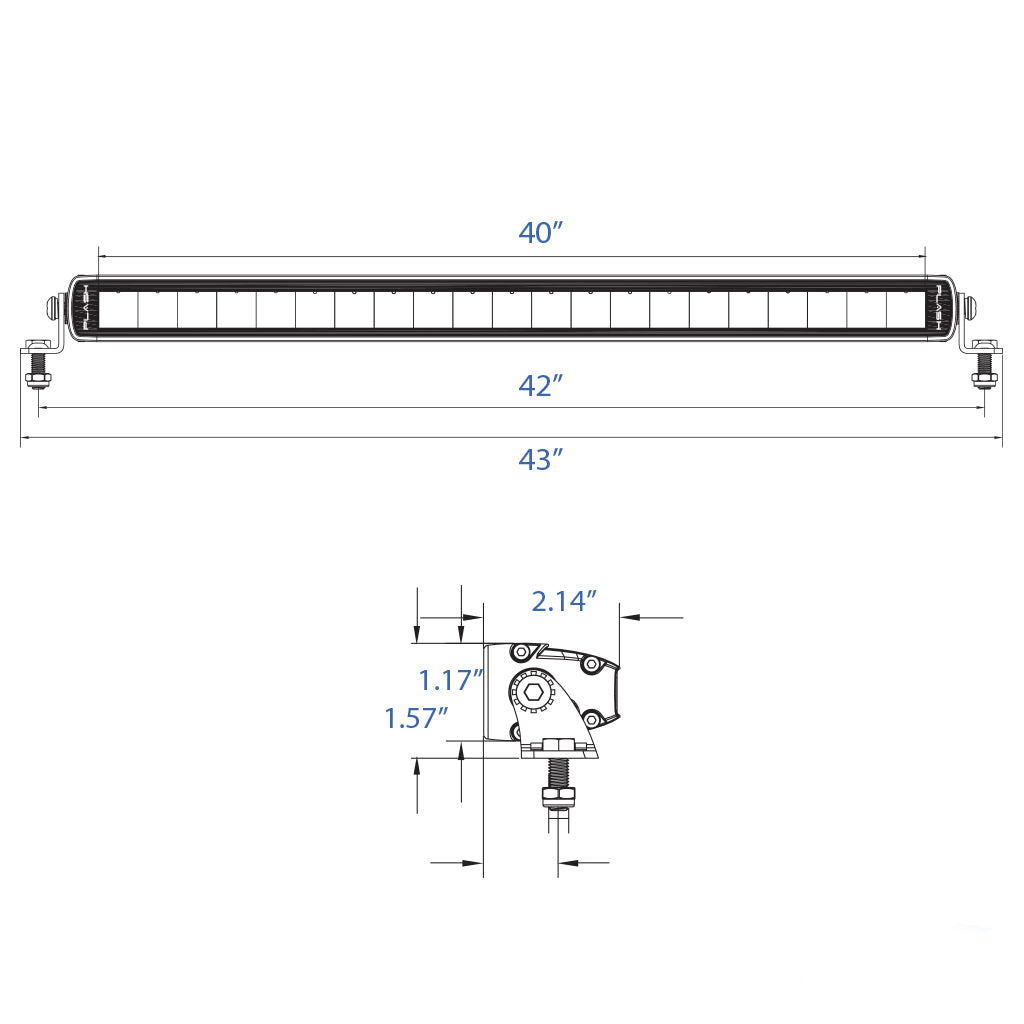

DIMENSIONS
