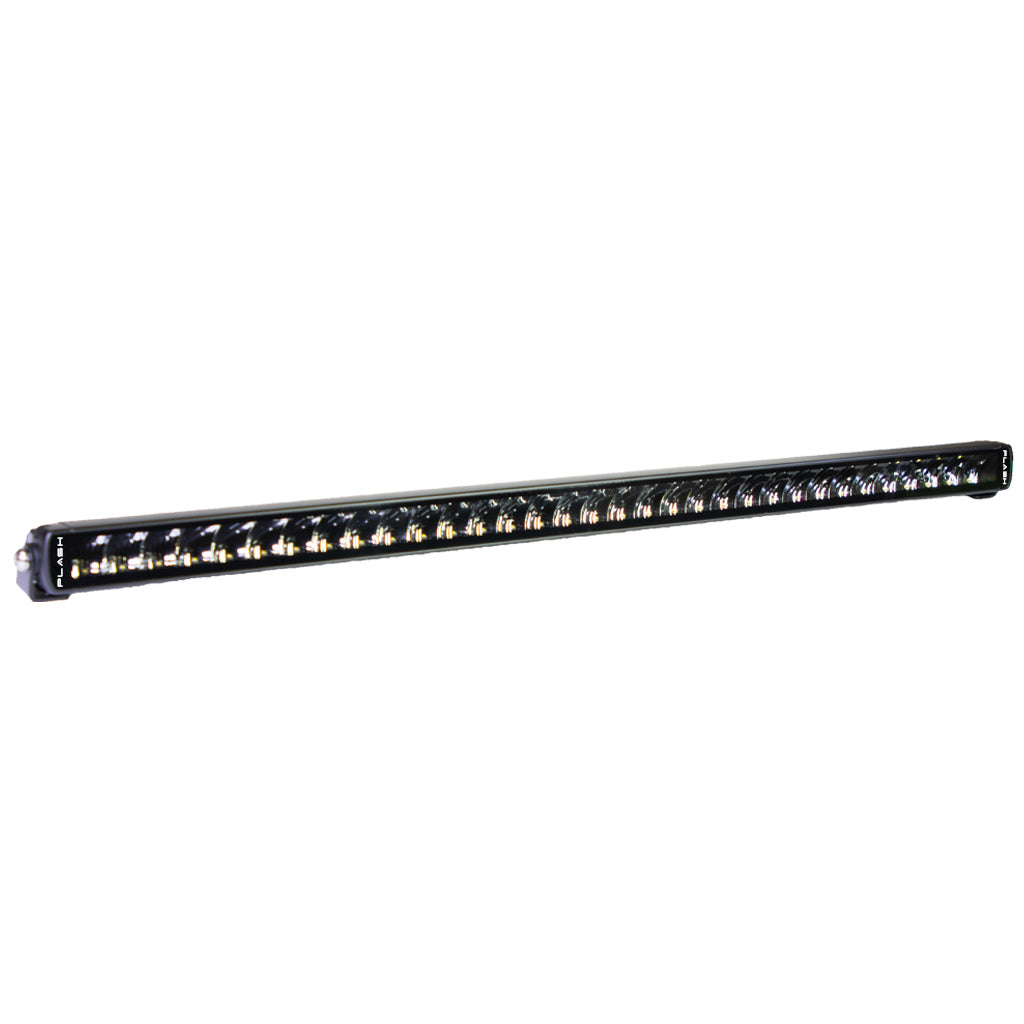

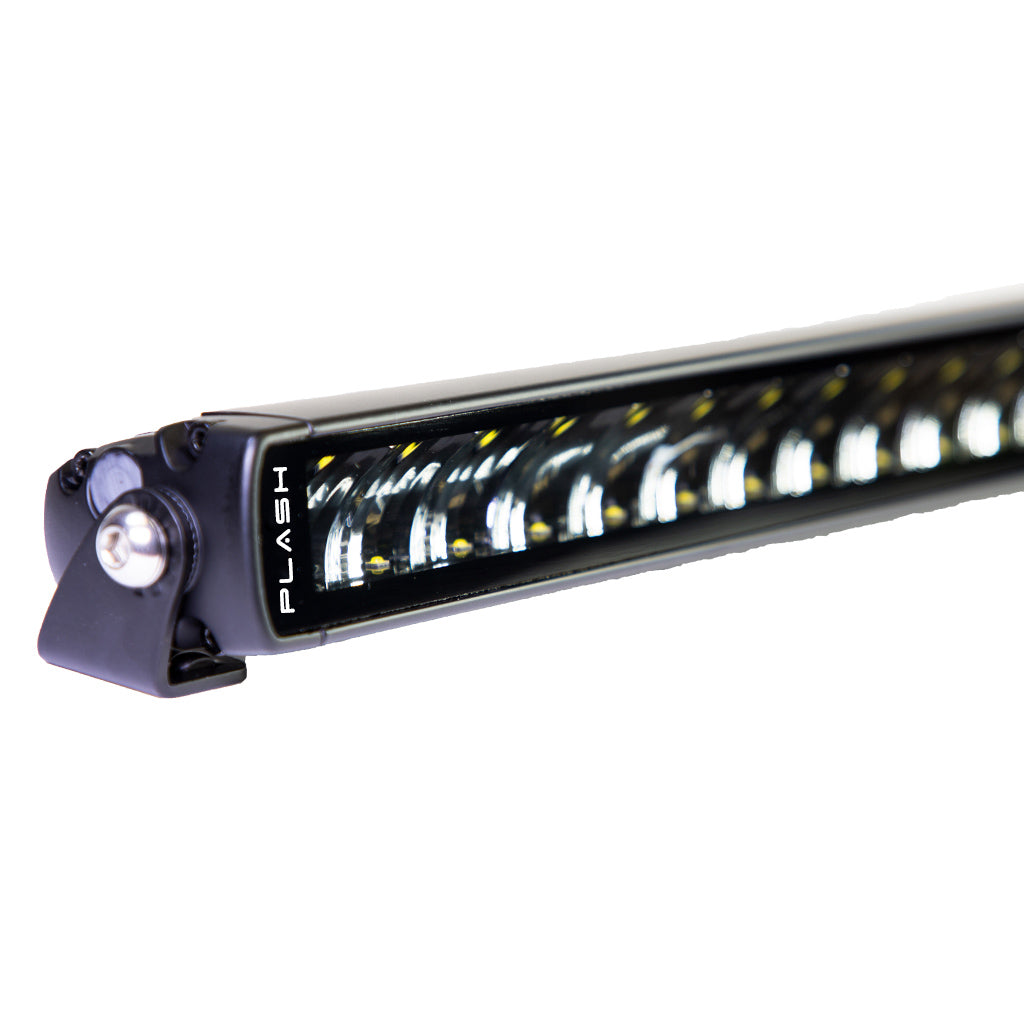

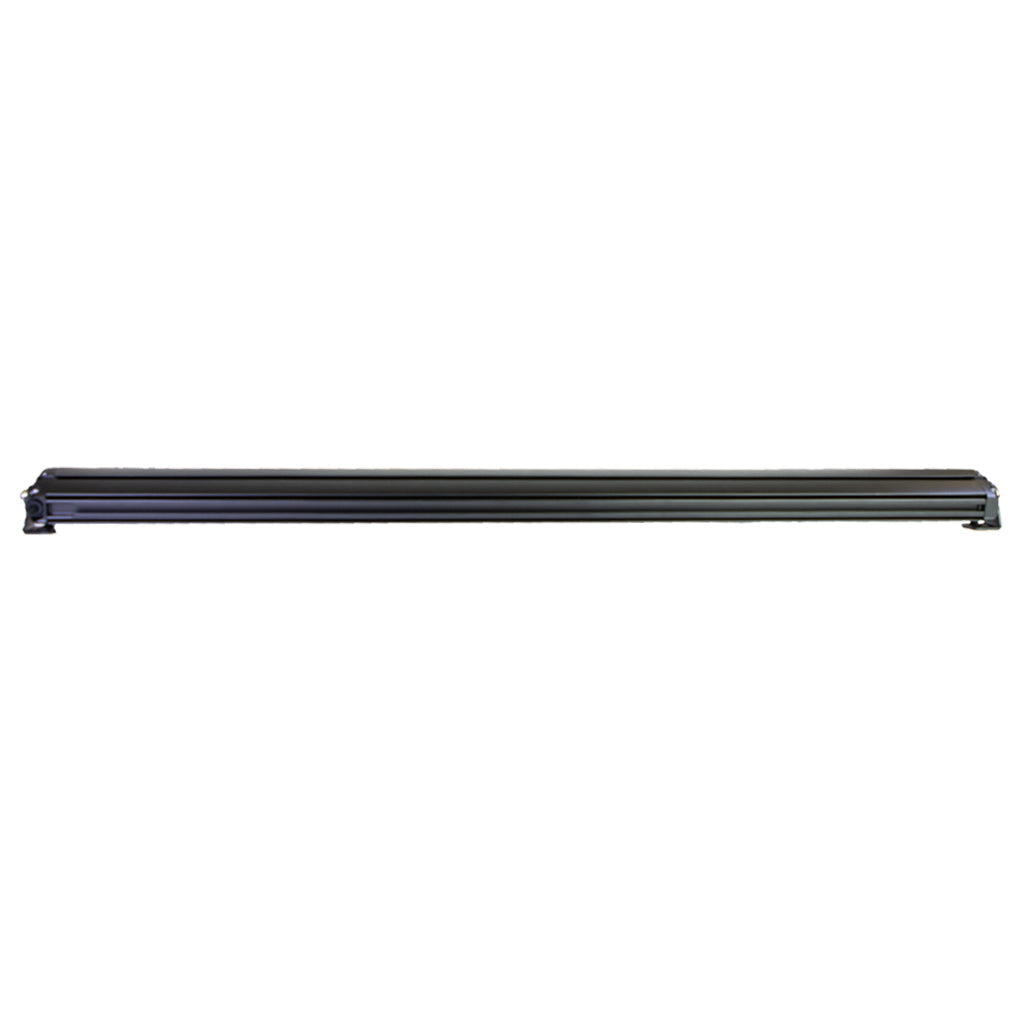

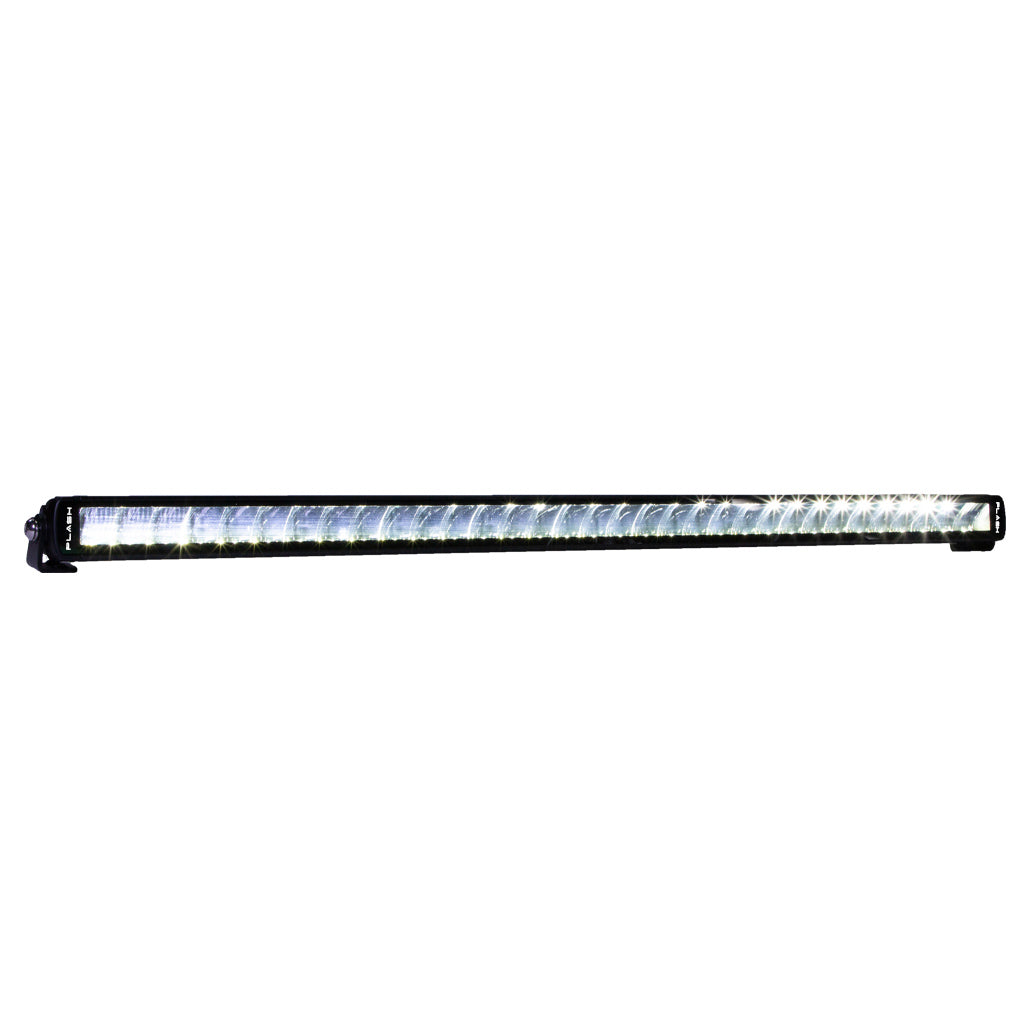

SRX2-Series Single Row LED - 30" - Light Bar
Description
The Best Light Bar for Center Console Boats. Specifically made to project the light on the horizon and not on the bow of your boat. There is a crisp cut off line where no light shines down from the bottom of the light bar. Efficiency is the key here. The light is where you need it and not where you don't.
FEATURES
- Optimal Beam Pattern to Reduce Bow Reflection
- 13,860 Lumens
- 33 X 5W OSRAM CSHP LEDS
- 9~32VDC Input
- IP67 Rated
- 12.5A @ 12VDC / 6.1A @ 24VDC
- Isolated Dissimilar Metals
- Combination Beam Pattern
- Integrated Temperature Control System (TCS)
- High Lux - High Output
- 165W MAX (@ 32V)
- Durable Scratch Resistant High Impact Polycarbonate Lens
- 6000K (Cool White)

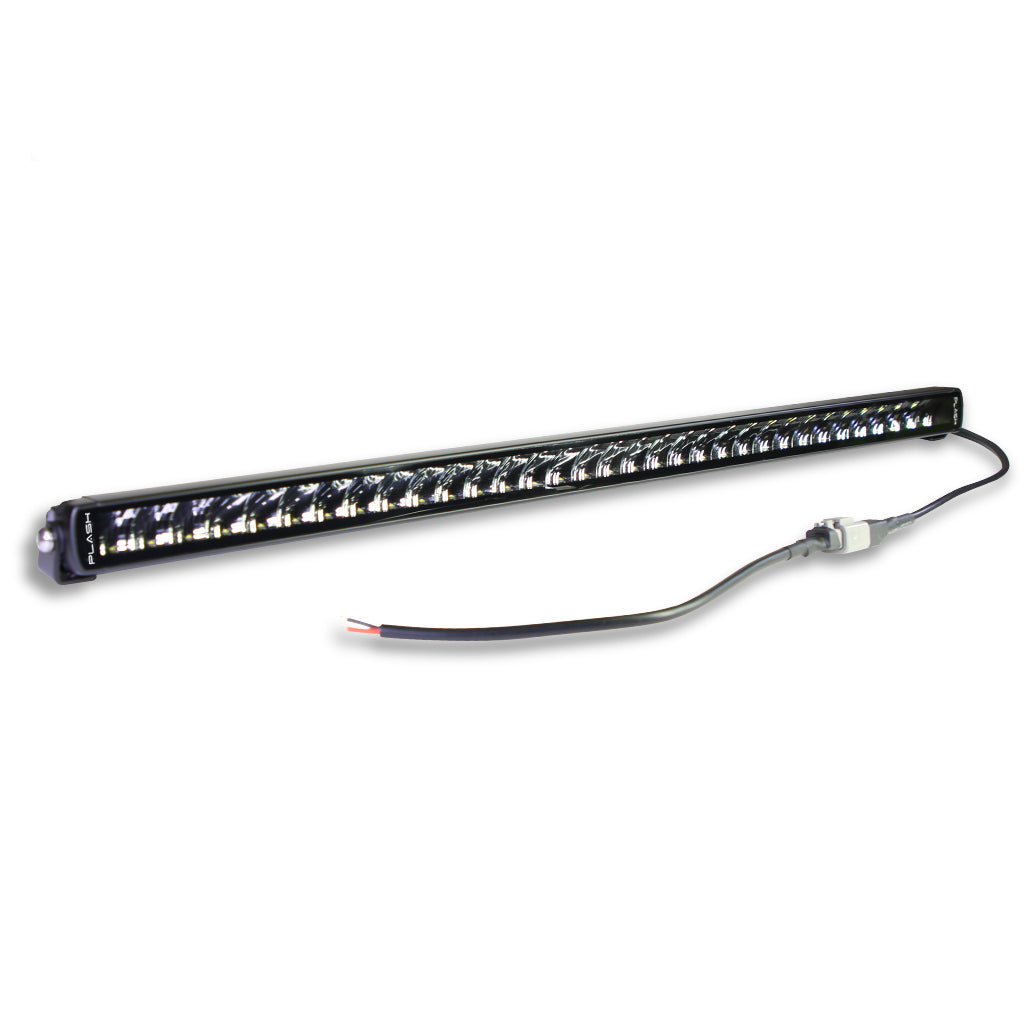

- 9FT Power Wire
- New Design to Improve Aerodynamics (Noise Reducers are Not Required)
- Chrome Coated Stainless Hardware to Eliminate Dissimilar Metal
- Max Distance 4,183FT
- Blacked Out Design
- Extruded 6063 Aluminum Body
- 50,000 Hours or 5 Years of Continuous Use
- Over / Under and Reverse Polarity Protection
- VHF and AIS Safe
- Protected Against Electromagnetic (EMC) & Radio Frequency Interference (RFI)
- Operating Temp: -40°F- +145°F
- MIL 810-STD 8.6G Vibration Compliant
INCLUDES
- (2) Chrome Coated Mounting Brackets
- Chrome Coated Stainless Steel Hardware

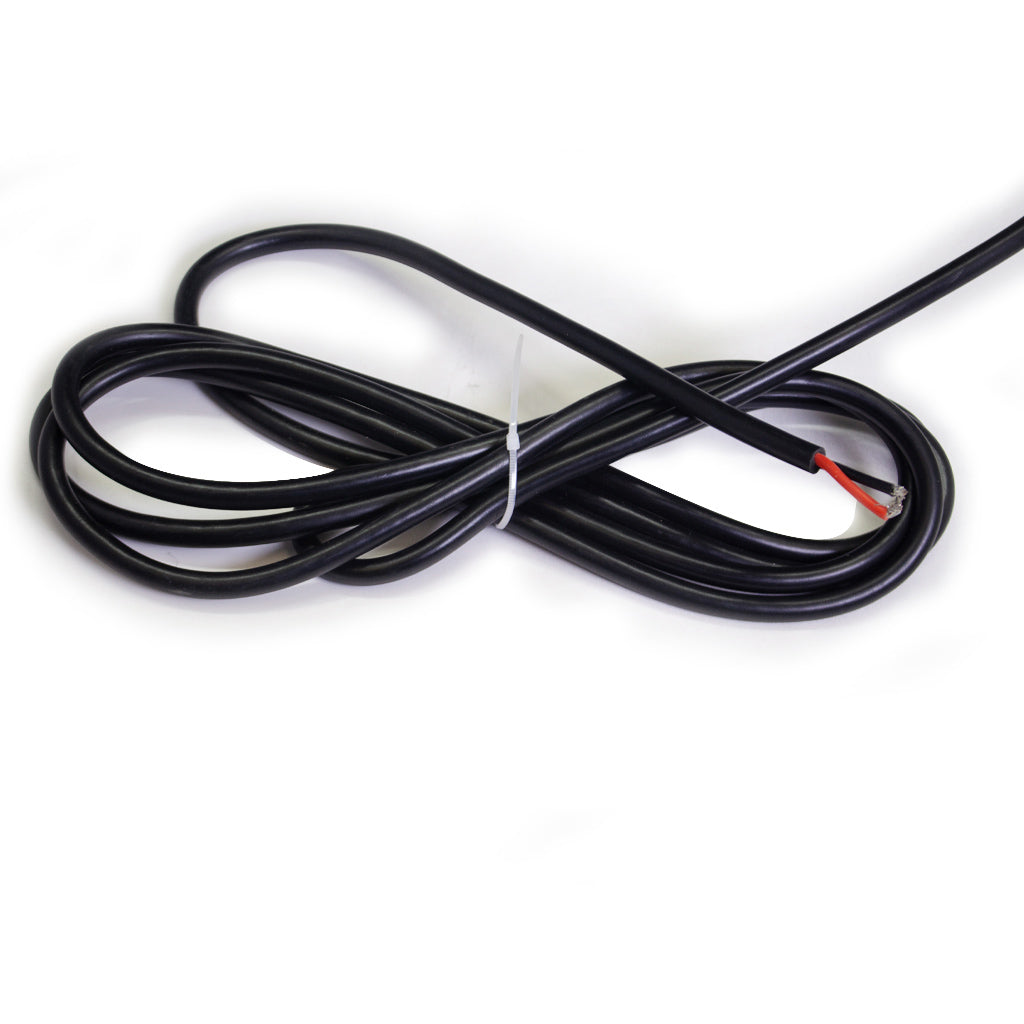

- Copper Tinned Marine Grade Extended Power Wire - 9ft

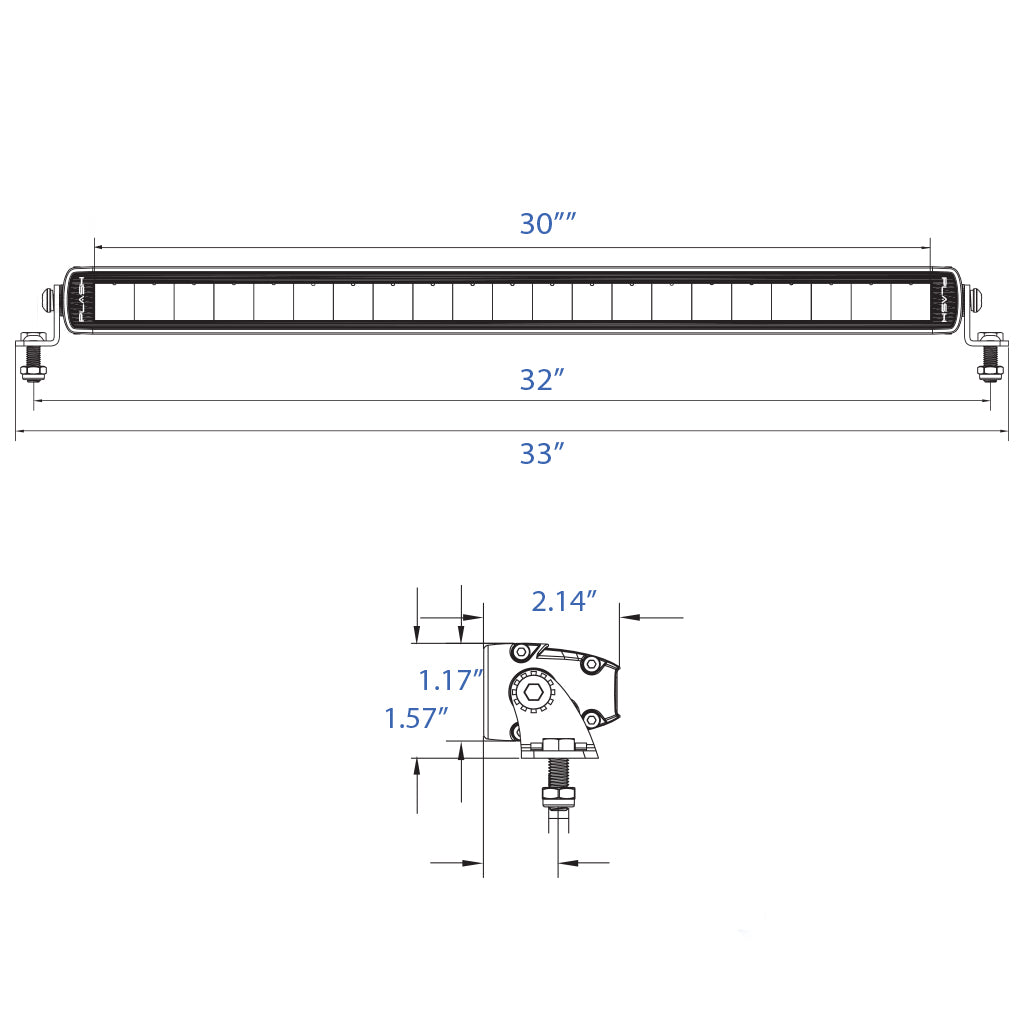

DIMENSIONS
PRODUCT SPECIFICATION SHEETS
from this merchant give
them a 4 or 5-Star rating.
SRX2-Series Light Bars
The Best Light Bar for Center Console Boats. Specifically made to project the light on the horizon and not on the bow of your boat. There is a crisp cut off line where no light shines down from the bottom of the light bar. Efficiency is the key here. The light is where you need it and not where you don't. Isolated Dissimilar Metals. Amazing Beam Pattern with Minimum Reflection on Bow. Pressed Fit Assembly = Less Fasteners. Extended Power Wire for Easy Installation.
Features
• Optimal Beam Pattern to Reduce Bow Reflection
• Integrated Temperature Control System (TCS)
• 17.640 Max Lumens
• 9 X 5W OSRAM CSHP LEDS 45W MAX
• 3.5A @ 12V DC / 1.7A @ 24V DC
• 9~32V DC Input
• IP67 Rated
• High Lux - High Output
• Durable Scratch Resistant High Impact Polycarbonate Lens
• 6000K (Cool White)
• 9FT Power Wire
• New Design to Improve Aerodynamics (Noise Reducers are Not Required)
• Chrome Coated Stainless Hardware to Eliminate Dissimilar Metal
• Max Distance 2,372 FT
• Blacked Out Design
• Extruded 6063 Aluminum Body
• 50,000 Hours or 5 Years of Continuous Use
• Over / Under and Reverse Polarity Protection
• VHF and AIS Safe
• Protected Against Electromagnetic (EMC) & Radio Frequency Interference (RFI)
• Operating Temp: -40°F- +145°F
• MIL 810-STD 8.6G Vibration Compliant
• 9 X 5W OSRAM CSHP LEDS 45W MAX
• 3.5A @ 12V DC / 1.7A @ 24V DC
• 9~32V DC Input
• IP67 Rated
• High Lux - High Output
• Durable Scratch Resistant High Impact Polycarbonate Lens
• 6000K (Cool White)
• 9FT Power Wire
• New Design to Improve Aerodynamics (Noise Reducers are Not Required)
• Chrome Coated Stainless Hardware to Eliminate Dissimilar Metal
• Max Distance 2,372 FT
• Blacked Out Design
• Extruded 6063 Aluminum Body
• 50,000 Hours or 5 Years of Continuous Use
• Over / Under and Reverse Polarity Protection
• VHF and AIS Safe
• Protected Against Electromagnetic (EMC) & Radio Frequency Interference (RFI)
• Operating Temp: -40°F- +145°F
• MIL 810-STD 8.6G Vibration Compliant
Downloads
Beam Pattern
Our SRX2-Series light bars are available in multiple beam patterns. No matter what you are trying to see, we will light the way.
