MINI LED NAV/ANCHOR SWITCH 2 CHANNEL

BTNAVLEDSW

Size Guide

Collections: ALL PRODUCTS, MARINE SWITCHES

Category: ALL PRODUCTS, ELECTRICAL, Switches

Type: Switches

  • Bocatech’s new Mini LED Nav/Anchor Push Button Switch defines the word innovation.  It is built with 316 stainless steel components, is environmentally rugged and hosts a stylish bi-color function LED.  One switch provides two channel outputs for Nav & Anchor boat light.

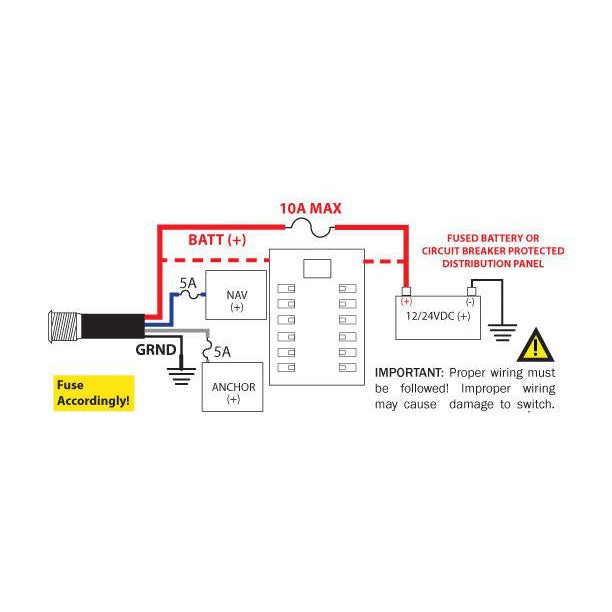

    Because of its size, the distribution, dash, etc., can be smaller and/or populated more densely and still provide high current to branch circuitry.  The Mini LED Nav/Anchor Switch is cost efficient.  Installation is very simple; a ¾ inch hole is all that’s needed to provide power up to 5 Amps per channel.

    FEATURES:

    • Ignition proof
    • Color LED rings clearly indicate status of operation
    • 5ADC per channel
    • Used for 12/24VDC marine systems
    • Simple installation
    • Stainless steel 316 (marine rated)
    • Ignition proof
    • Surge protection
    • IP67/IK08/IP44 Rated
    • Color LED rings clearly indicate status of power
    • Solid state circuitry to handle 20ADC
    • Available in On/Off and Momentary
    • Used for 12 & 24VDC marine and automotive systems
    • Panel thickness: 1-10mm
    • Vibration resistant
    • 4ft Pigtail (tin plated)
    • Vibration resistant
    • LED can be seen in direct sunlight

    HOW IT WORKS:
    First press turns on the Navigation & Anchor lights (LED ring turns Blue).  Second press leaves Anchor light on and turns off Navigation light (LED ring turns Red).  Third press turns all lights off.

    SPECIFICATIONS

    IP67/IP44 Rated

    waterproof

    Dimension

    0.6" diameter

    Mechanical Life

    1,000,000 cycles

    Operation Travel

    approx. 3.1mm

    Operation Pressure

    3-5N

    LED Life

    40,000 hours

    Operating Temperature

    -20°C - +55°C

    Outer Diameter

    19mm

  • no specs
  • no dimensions
  • no video loaded
