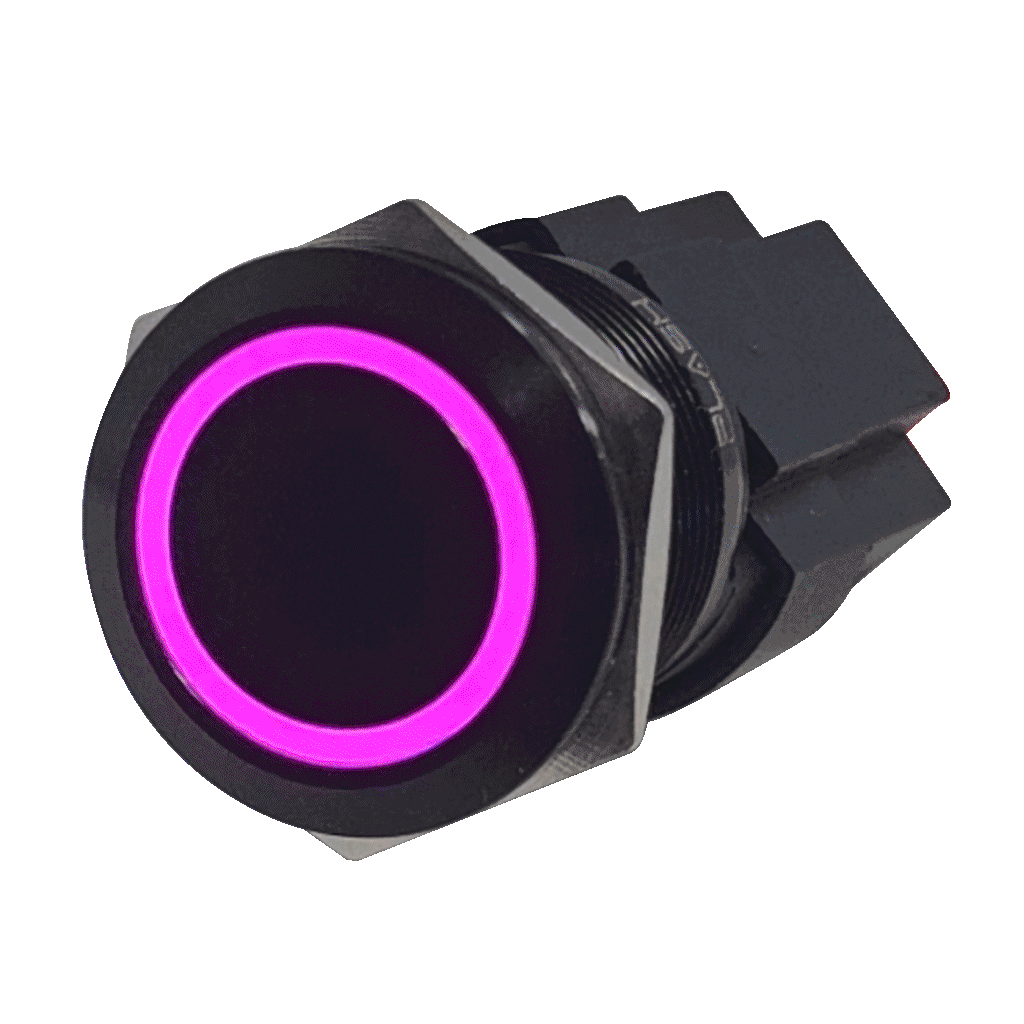

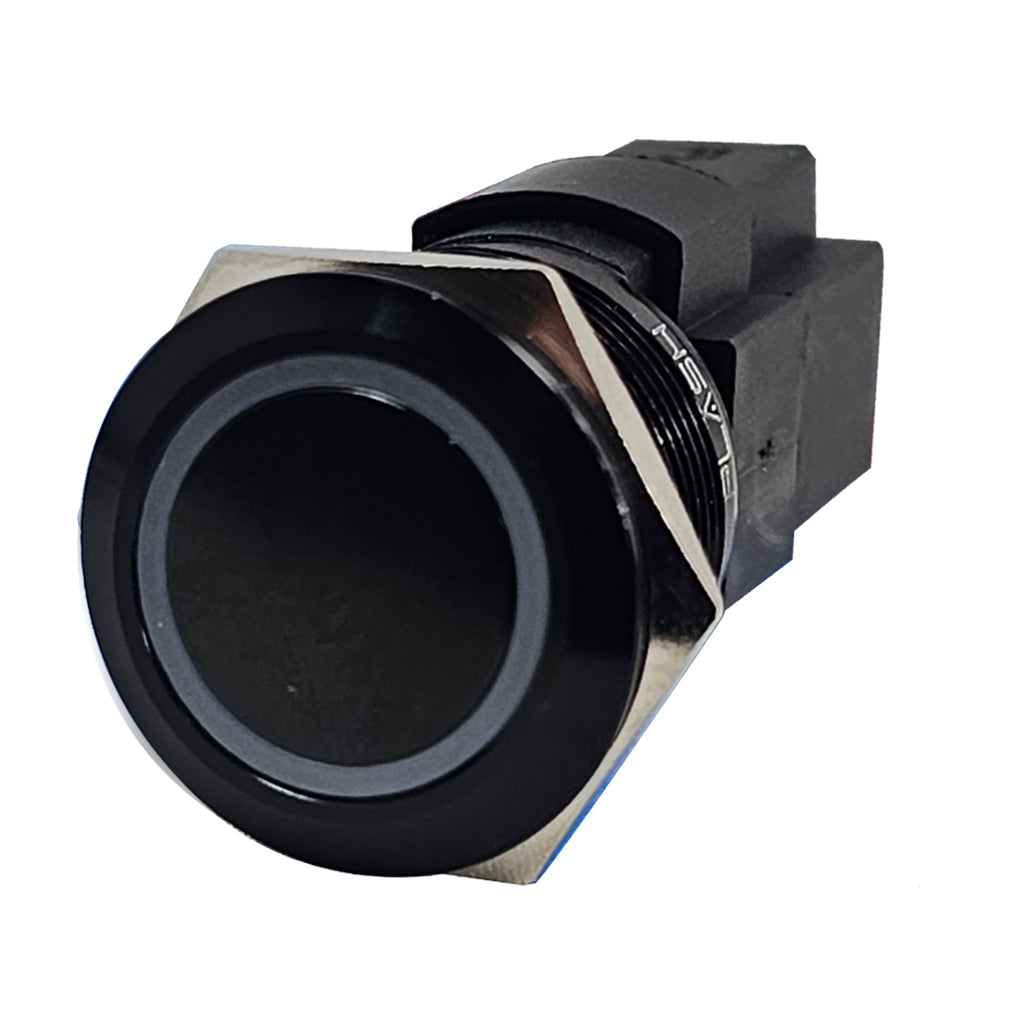

Marine Push Button Switch - RGB - 10A - Black Anodized

FEATURES:

• Rated for 10A
• Black Anodized Aluminum Housing
• Simply wire according to an RGB Controller for your choice of color options such as color changing Fade, Flash/Strobe, or a single color such as hot pink or teal.
• 22mm (7/8") Diameter Button - Easier to Push Compared to 19mm
• 25mm (1") Outside Diameter
• Works on 12V Systems

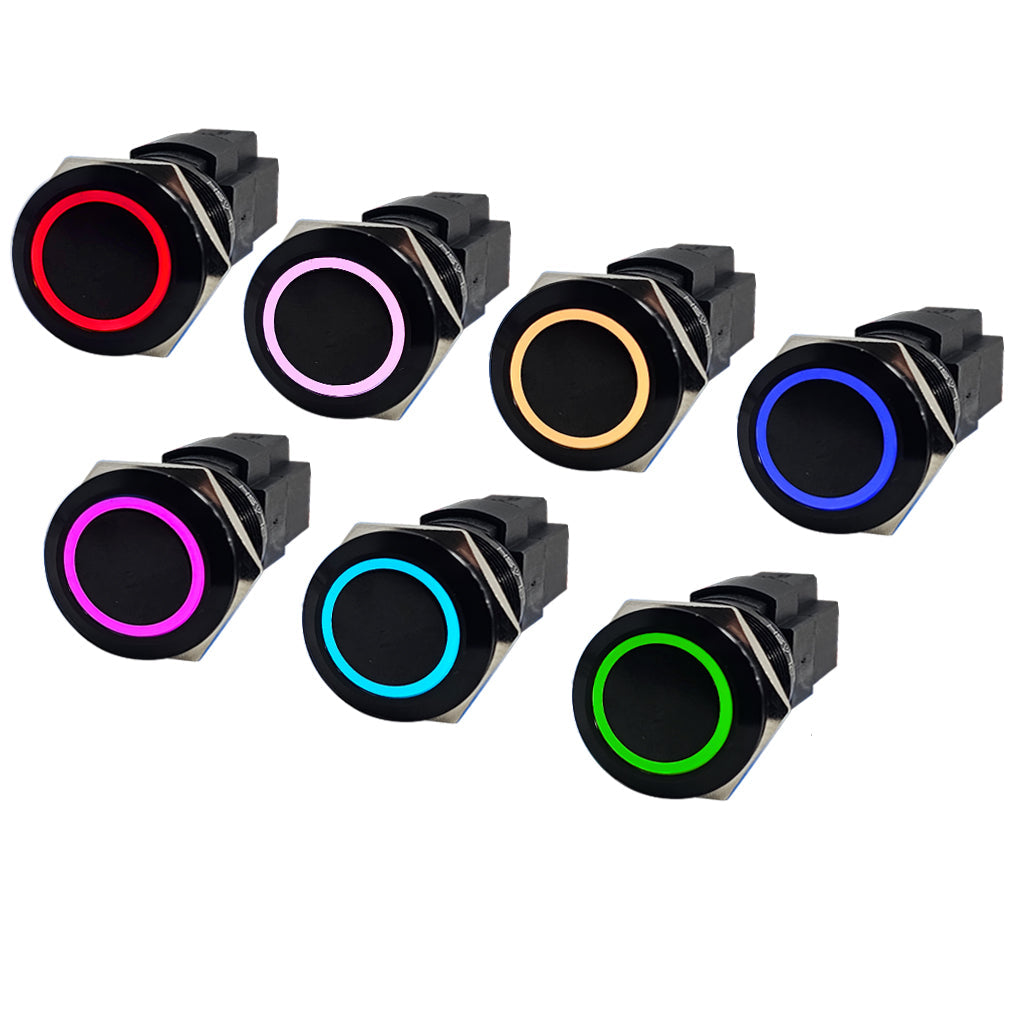

• LED Backlit Ring in your Choice of Colors
• IP67 Rated - Waterproof
• Silky Smooth Movement
• Rated for 150,000 Cycles (Presses)

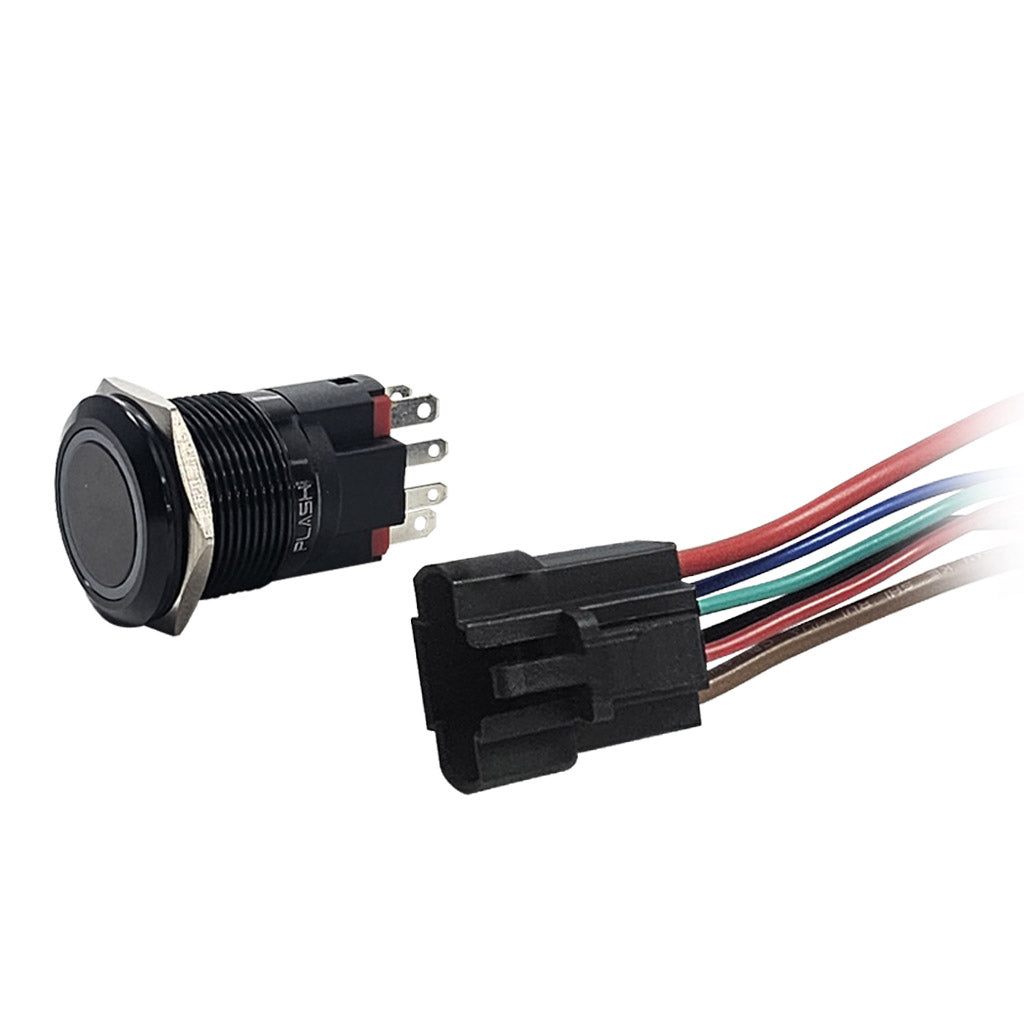

• Removable Clip for Wiring Harness

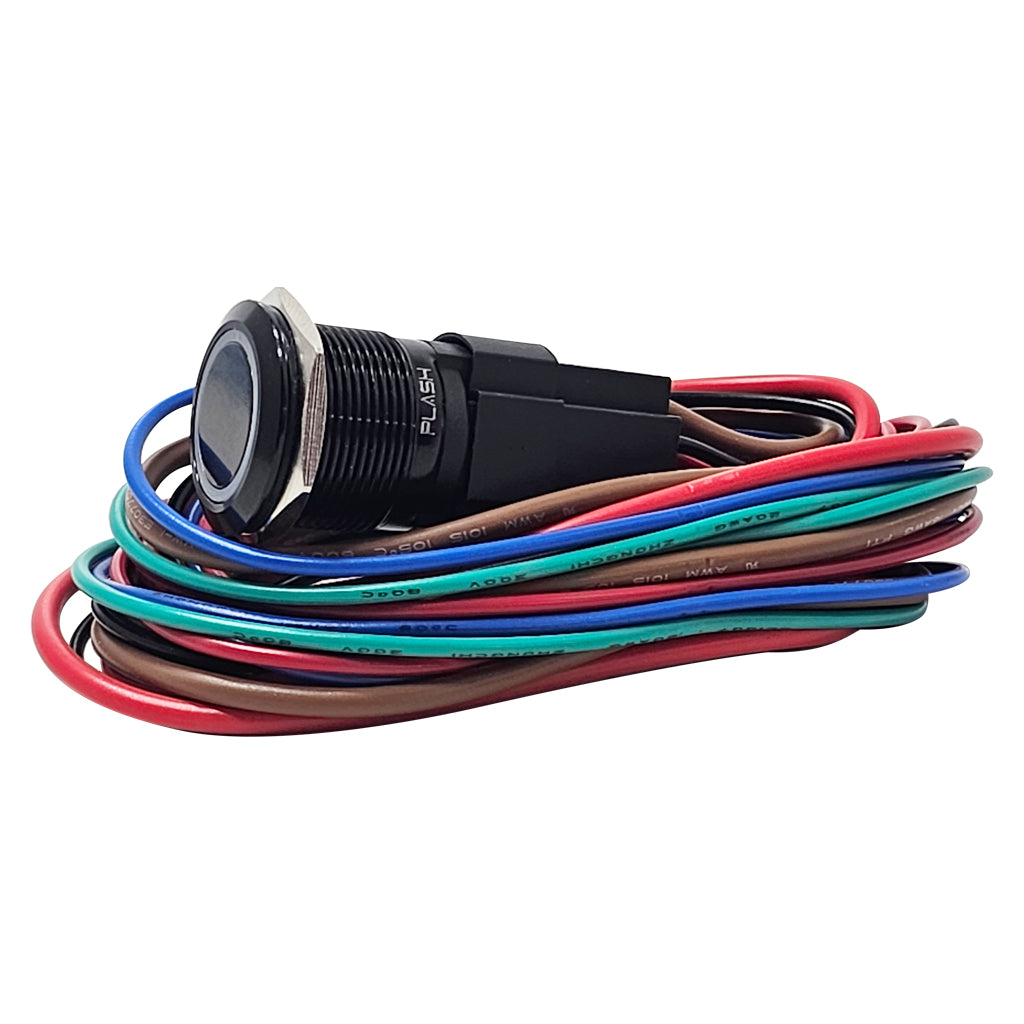

• 3ft of Wiring for a Simple Installation
• Mounts in panels up to 3/8" thick
• Fits a 7/8" Hole
• Plash Limited Lifetime Warranty

WIRING:

This push button switch has two functions:

A) Illuminating the LED Ring

B) Controlling the Equipment that it is Connected to (such as a bilge pump or light bar).

A) LED Illuminated Ring on the Switch:

The below 4 wires connect to the RGB Controller --> **Sold Separately

• BLACK 18 AWG Wire = Positive V+ (connects to RGB controller)
• RED 18 AWG Wire = Ground (connects to RGB controller)
• BLUE 18 AWG Wire = Ground (connects to RGB controller)
• GREEN 18 AWG Wire = Ground (connects to RGB controller)

B) Control of your Load:

• RED 14 AWG Wire = Positive V+  IN from Fuse Panel (verify the fuse is correctly sized for your load)
• BROWN 14 AWG Wire = Positive V+ OUT to Load (example: connects to bilge pump)

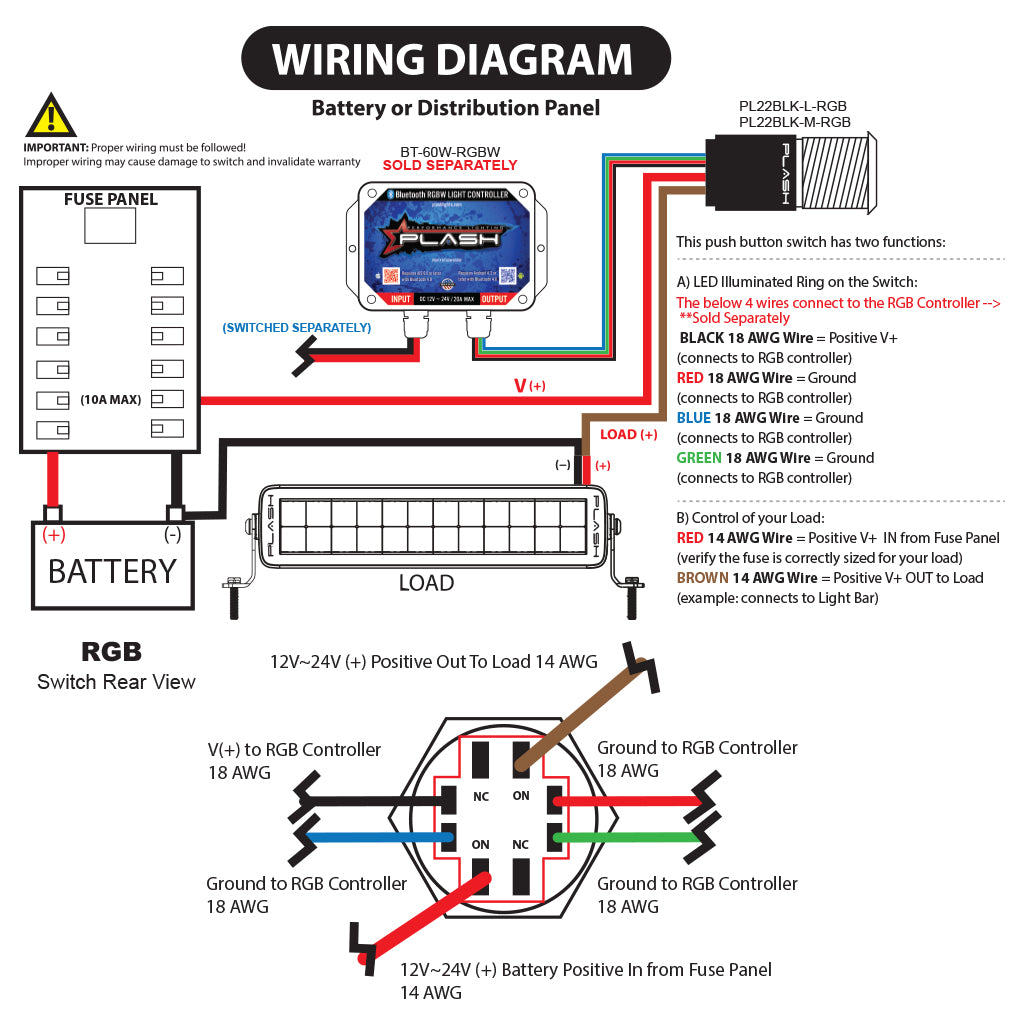

* For wiring diagram see images.

SPECIFICATION SHEET:
