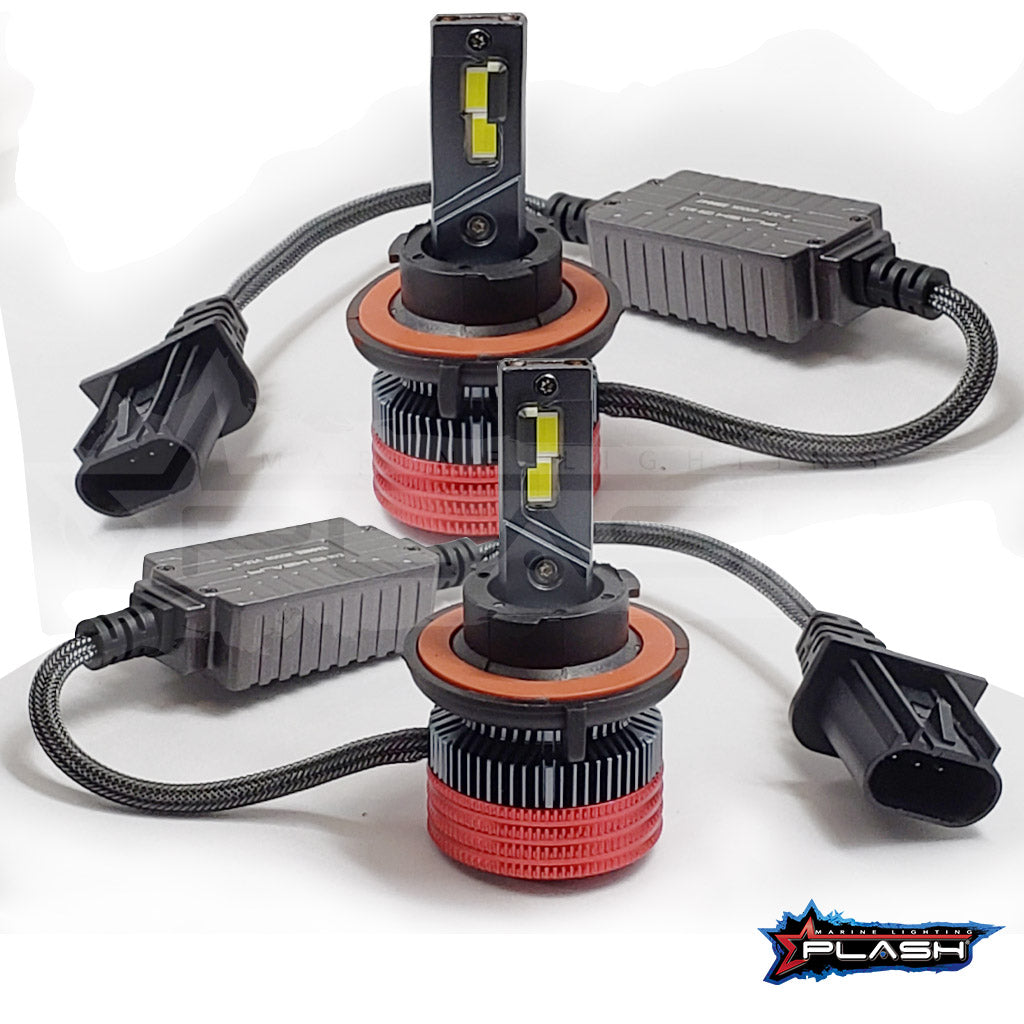

C29 High Output LED Headlight Conversion Kit | H13+ SHIELD
C29 High Output LED Headlight Conversion Kit | H13+ SHIELD
C29 High Output LED Headlight Conversion Kit | H13+ SHIELD
SKU: HL-C29-H13-SHIELD

C29 High Output LED Headlight Conversion Kit | H13+ SHIELD

Sale price$199.85
Model #: DUAL BEAM: H13
In stock

  The key to a long lasting LED of any type is proper thermal properties. Keeping the LED cool is crucial as heat kills LED's.  Over the years we have evolved and improved the quality and dependability of our LED headlights many folds, but the C29 is by far the brightest we have ever made!  To go brighter we had to ensure that we could dissipate that heat load created by the 65 watts of power on each lamp.  To do this we turned to copper as copper transfers the heat twice as good as raw aluminum. We created a monolithic copper plate that carries from on end to the other where the fan can cool it, but it's not a regular copper plate.  This copper plate has large rod like sides and a flat area in the middle for the PCB and LED's to mount giving it an "H" like profile.  More copper equals more thermal transfer resulting in a lower operating temperature for a longer LED lifespan. Even the name "C29" came from the atomic number of Copper.

High Output LED Headlight Conversion Kit for Automobiles. 11,000 Lumens Per Each Light. 65 Watts of Power, Rated for 50,000 Hours of Operation. Our Crisp and Clear Lights are for Off Road Use Only.

This version of our H13 has the shields in place to provide a distinctive low and high beam pattern. Ideal for 2004-2016 Ford Super Duty trucks. Our C29-Series LED bulb will provide even light output that will be brighter than the OEM offered LED package!

FEATURES

  • Plug and Play - Easy Install
  • Copper PCB With Two Large Copper Rods for Superior Thermal Transfer
  • Raw Lumens: 11,000/Each
  • Stable Design Provides Over 5 Years of Continuous Usage
  • Operating Voltage: 9~32V DC
  • Wattage: 65W/ Bulb, 130W/Set
  • Instant On/Off, No Warm-Up
  • 50,000 Hrs. Lifespan Including Fan
  • 3570 CSP LED Chip Reduces Thermal Resistance
  • Electroplated Base Material
  • High Definition Reflector for a Clear & Even Beam Pattern
  • IP67 Waterproof Rating
  • Designed for: High Temperature, Temperature Shock, Vibration, UV, & Humidity
  • Color Temperature:5500K (Pure White)

    • INCLUDES

  • (2) LED Headlights
  • (2) Drivers
  • Instructions

    •

    Disclaimer: For Off-Road use only.  These lights  fail to conform with Federal Motor Vehicle Safety (FMVSS) Standard No. 108 “Lamps, Reflective Devices, and Associated Equipment.” The bulbs exceed limitations on luminous flux set forth in the standard and may cause increased or excessive glare for oncoming drivers.
