F23 Series Led Headlight Replacement Fits 9005
F23 Series Led Headlight Replacement Fits 9005
F23 Series Led Headlight Replacement Fits 9005
F23 Series Led Headlight Replacement Fits 9005
F23 Series Led Headlight Replacement Fits 9005
F23 Series Led Headlight Replacement Fits 9005

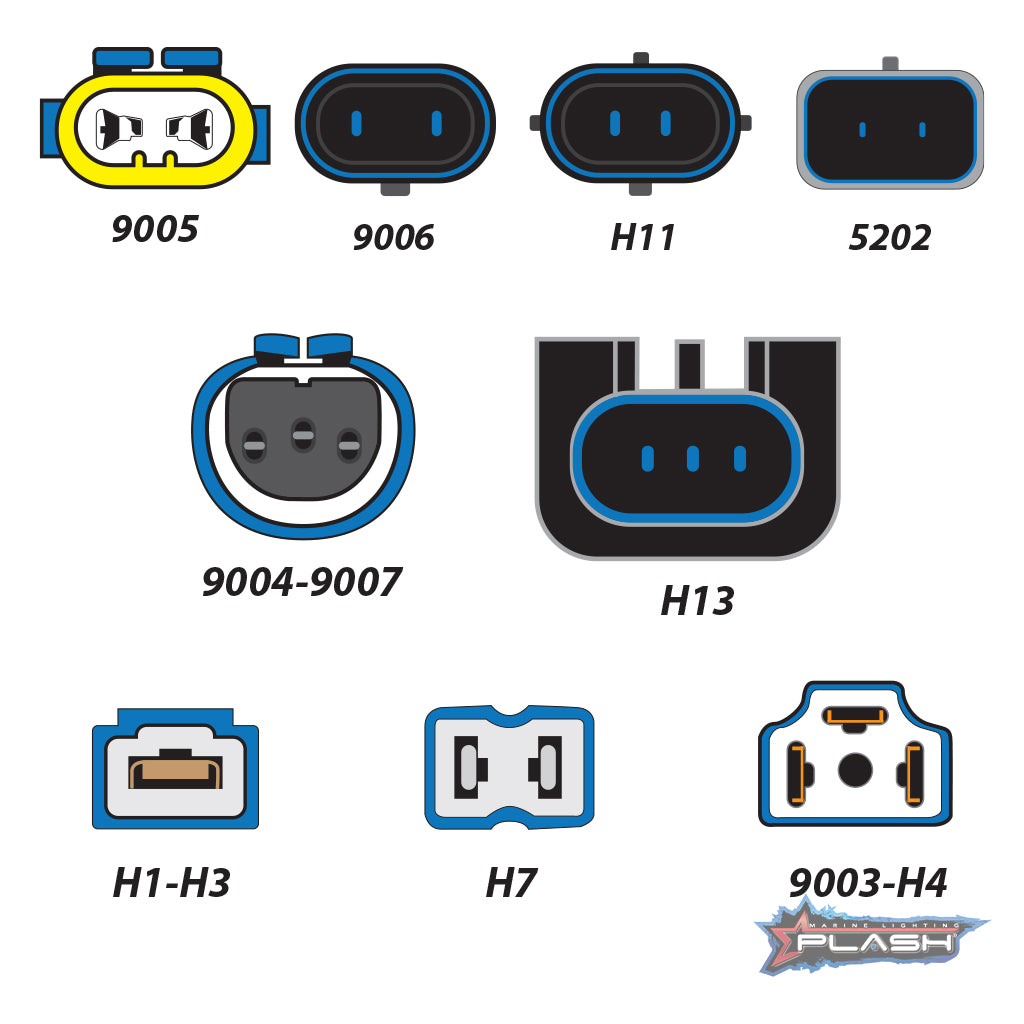

F23 Series Led Headlight Plug Diagrams
SKU: HL-F23-9005

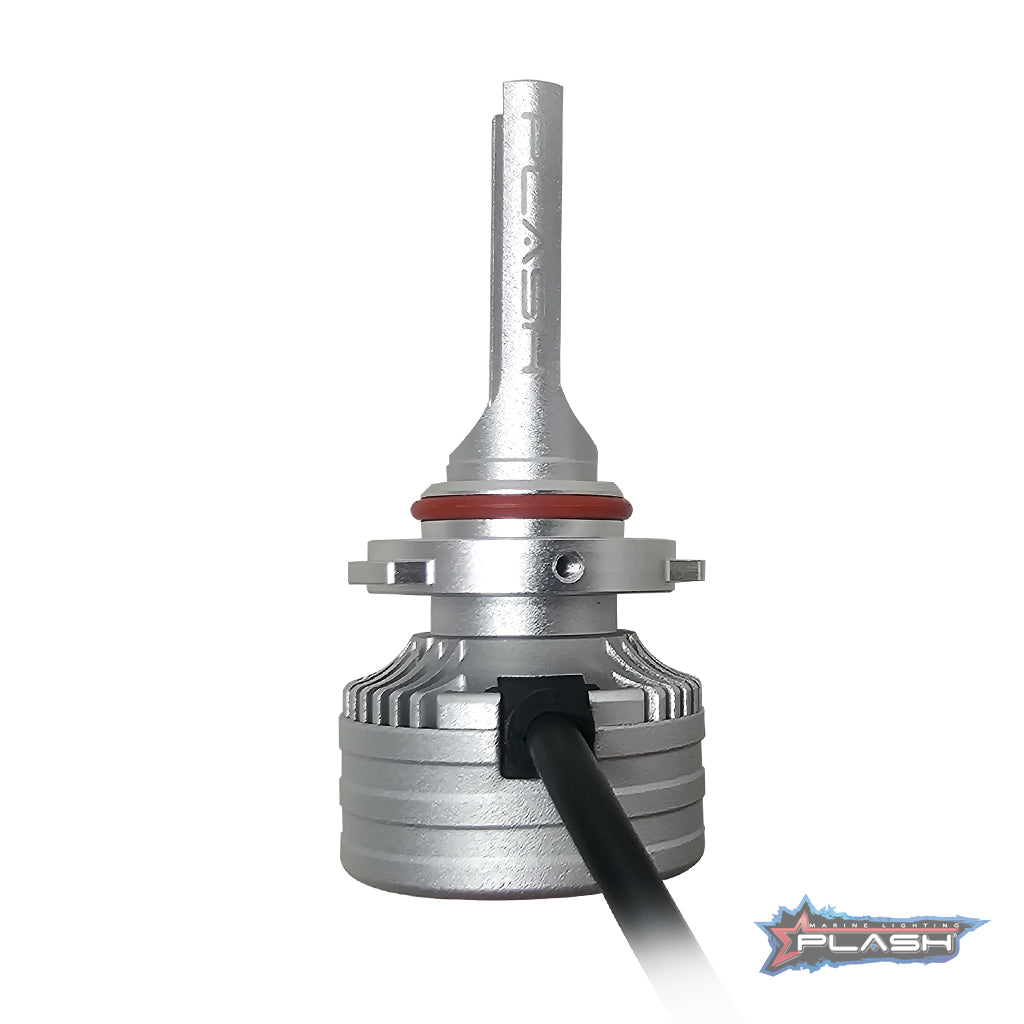

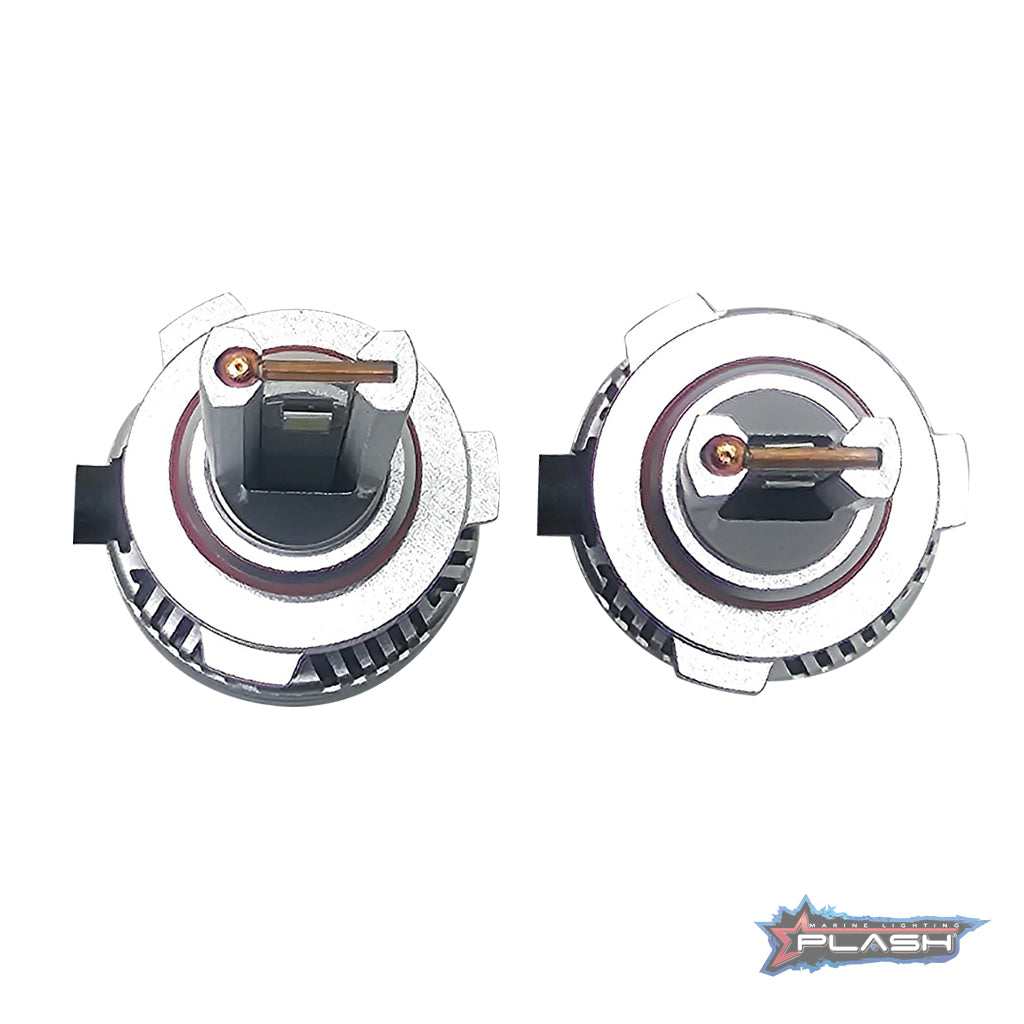

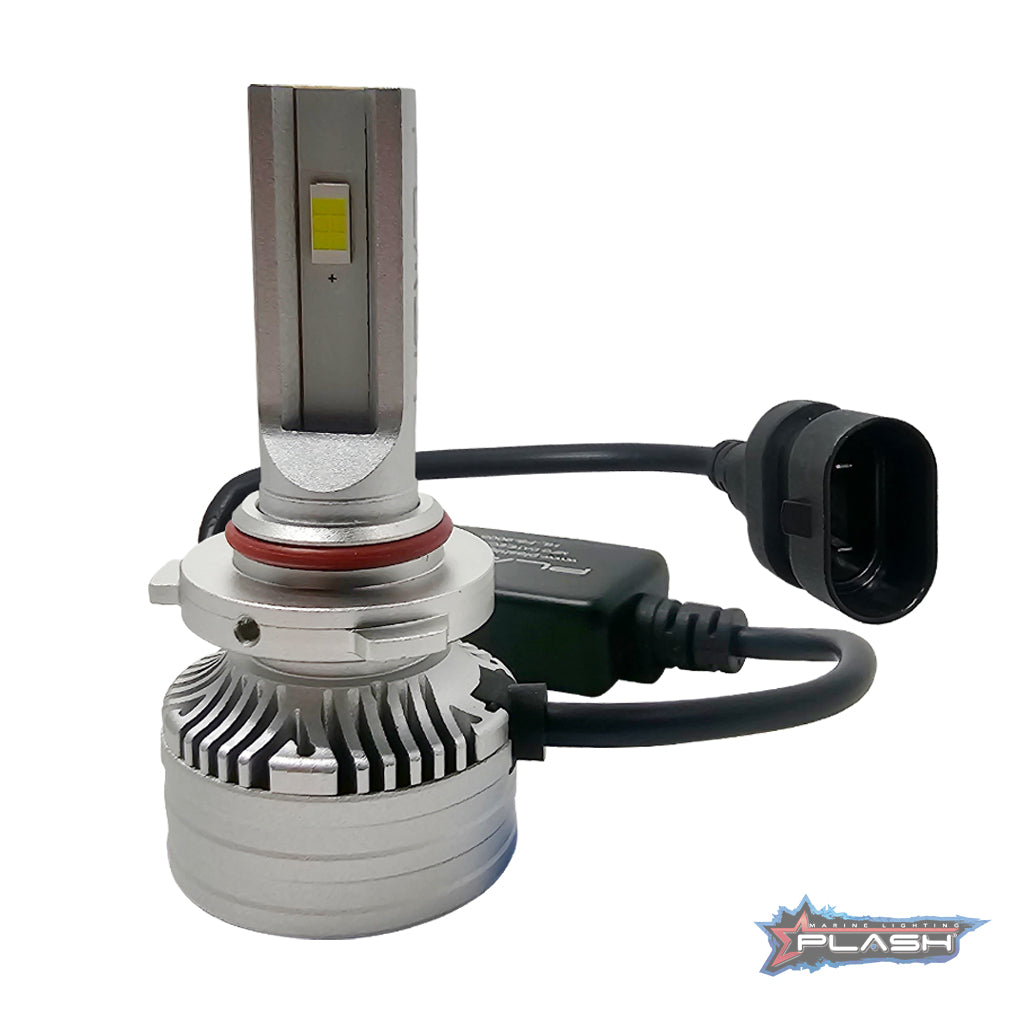

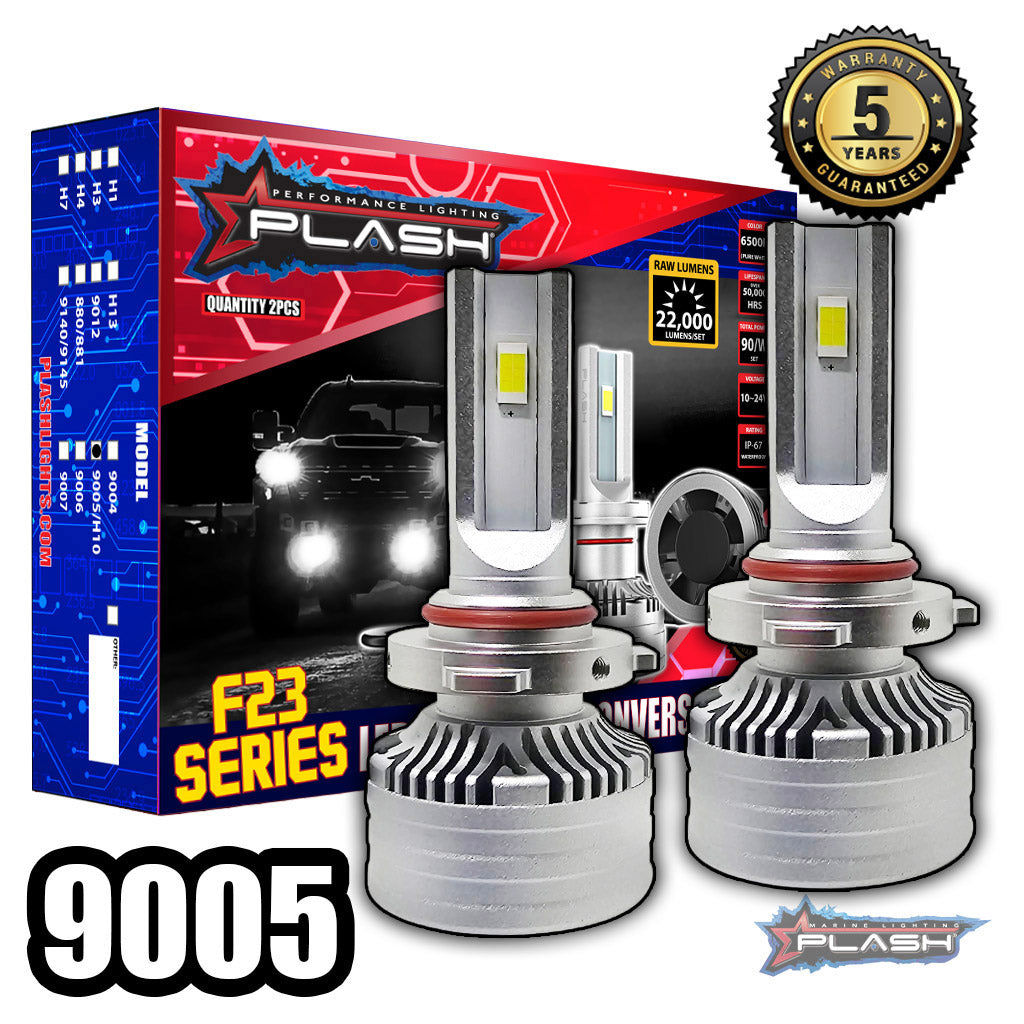

F23-Series High Output LED Headlight Conversion Kit | 9005

Sale price$169.85
In stock
F23 Series Icons/ Features

We are proud to offer our newest LED automotive headlight model.  The F23 Series High Output LED Headlight Conversion Kit is a one for one bulb design making fitment  a non-issue.  The F23 Series bulbs are engineered to be brighter and run cooler than our previous models.  Assembled with a copper vacuum tube these bulbs conduct and move heat to a large 32MM fan faster and more efficiently allowing our bulbs to be brighter and last longer than others on the market.

High Output LED Headlight Conversion Kit for Automobiles. 22,000 Lumens Per Pair/ Set. 90 Watts of Power Per Pair/ Set, Rated for 50,000 Hours of Operation. Our Crisp and Clear Lights are for Off Road Use Only.



FEATURES

  • Plug and Play - Easy Install
  • Copper Vacuum Rod and Turbo Fan for Superior Thermal Transfer and Dissipation
  • Raw Lumens: 22,000/Total (11,000 Lm/Each)
  • Best Beam Pattern: No Glare + Crisp Cut Off Line
  • Stable Design Provides Over 5 Years of Continuous Usage
  • Operating Voltage: 10~24V DC
  • Wattage: 90W/Pair or 45W/ea
  • Instant On/Off, No Warm-Up
  • 50,000 Hrs. Lifespan Including Fan
  • 3570 CSP LED Chip Reduces Thermal Resistance
  • Electroplated Base Material
  • High Definition Reflector for a Clear & Even Beam Pattern
  • IP67 Waterproof Rating
  • Designed for: High Temperature, Temperature Shock, Vibration, UV, & Humidity
  • Color Temperature: 6500K (Pure White)

    •

    INCLUDES

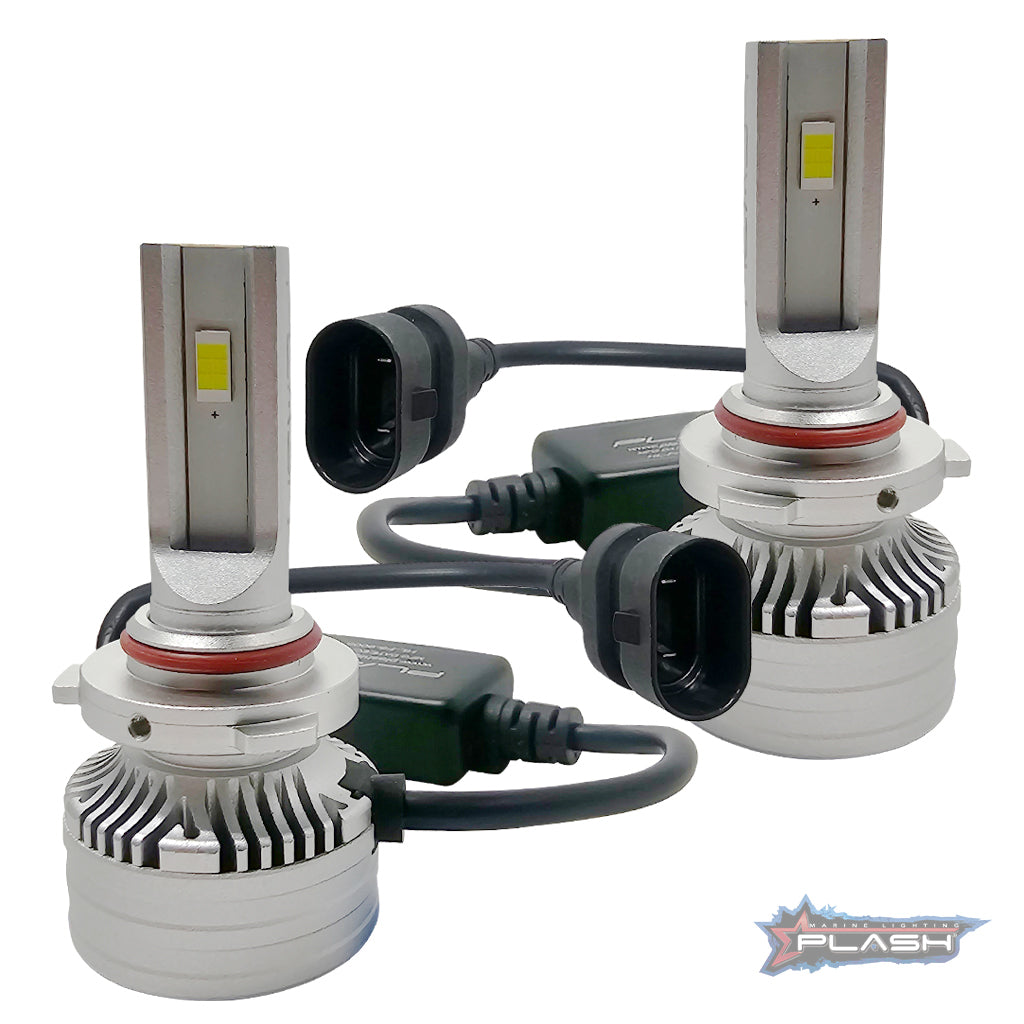

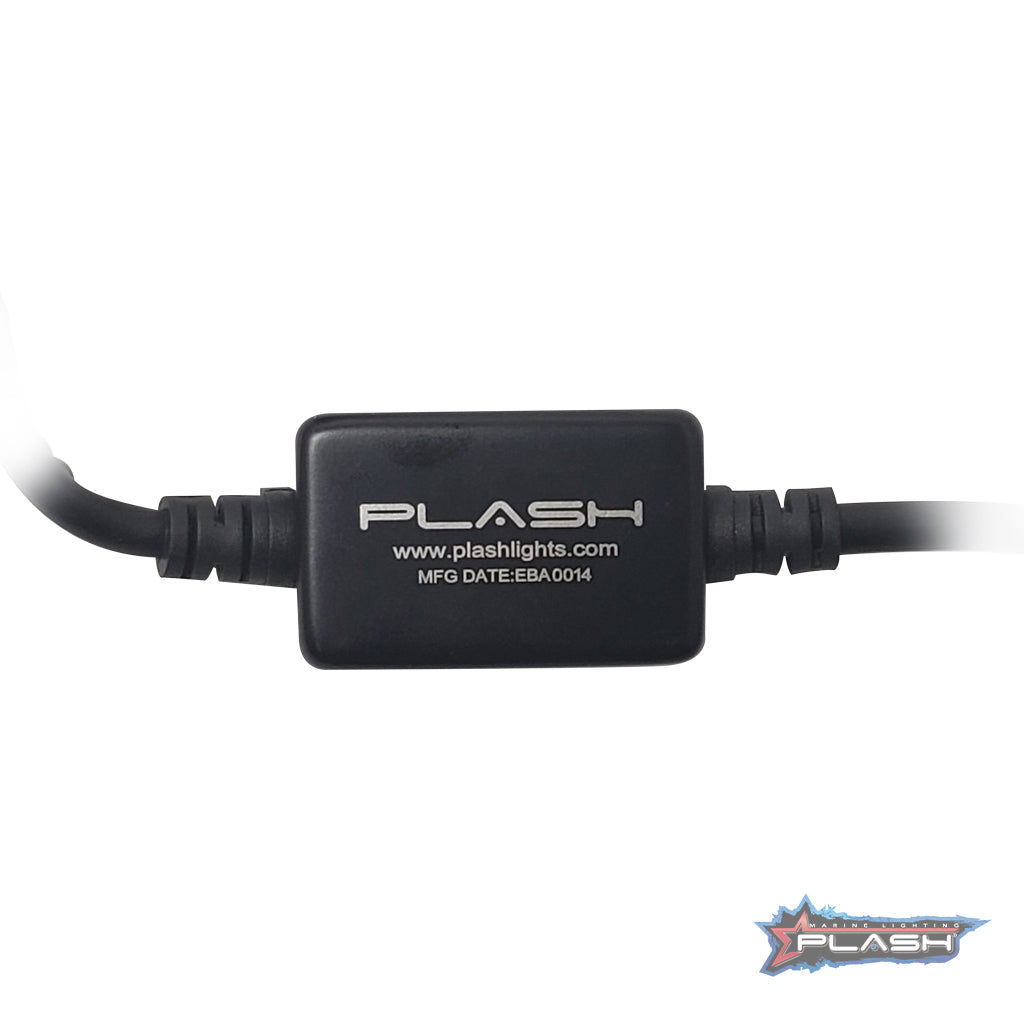

  • (2) F23 LED Headlights With Drivers & Plug
  • (4) Zip Ties
  • Instructions

    •


    Disclaimer: For Off-Road use only.  These lights  fail to conform with Federal Motor Vehicle Safety (FMVSS) Standard No. 108 “Lamps, Reflective Devices, and Associated Equipment.” The bulbs exceed limitations on luminous flux set forth in the standard and may cause increased or excessive glare for oncoming drivers.



    PRODUCT INSTRUCTION SHEET
