HLG-40H-12

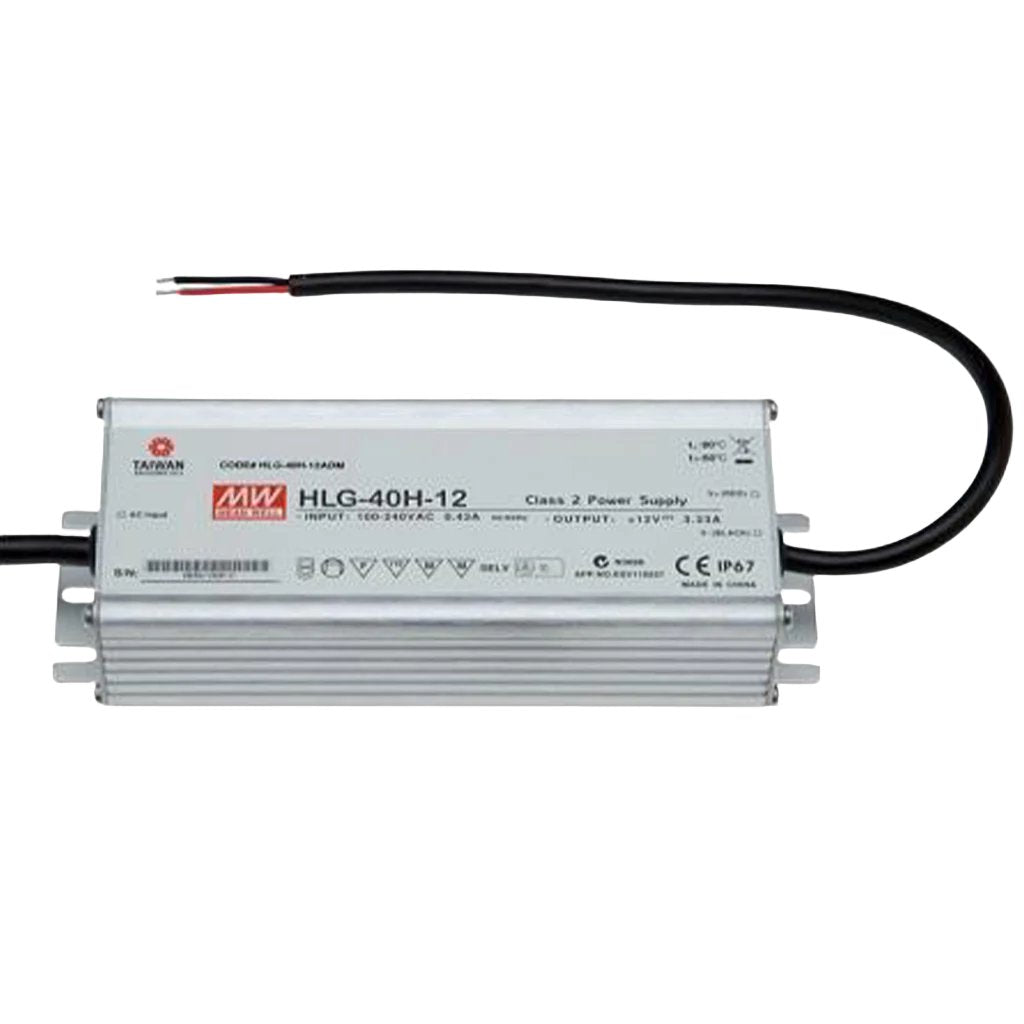

12V Mean Well Power Supply HLG-40H-12

Ensure optimal performance of your electronic device with the use of this HLG-40H-12B AC to DC power supply from Mean-Well USA, Inc.  It has a voltage of 12 V and maximum output power of 39.96 W.  This part's single output can handle a current up to 3.33 A.  This part has a temperature range of -40 °C to 70 °C.

Specifications

  • EU RoHS Compliant
  • Type Constant Current|Constant Voltage
  • Input/Output Type AC/DC
  • Number of Outputs 1
  • Output Voltage Range (VDC) 7.2 to 12
  • Maximum Output Current (mA) 3330
  • Output Power (W) 39.96
  • Input Voltage Range 90VAC to 305VAC|127VDC to 431VDC
  • Dimming 1-10V/PWM
  • Power Factor Correction 0.98(Min)
  • Efficiency (%) 86.5(Typ)
  • Termination Style Lead Wire
  • IP Rating IP67
  • Warranty 7Year
  • Operating Temp: -40°C ~ 80°C
  • Product Weight (g) 730
  • Mounting Screw
  • Package Height (mm) 36.8
  • Package Length (mm) 171
  • Package Width (mm) 61.5
