HLG-320H-12

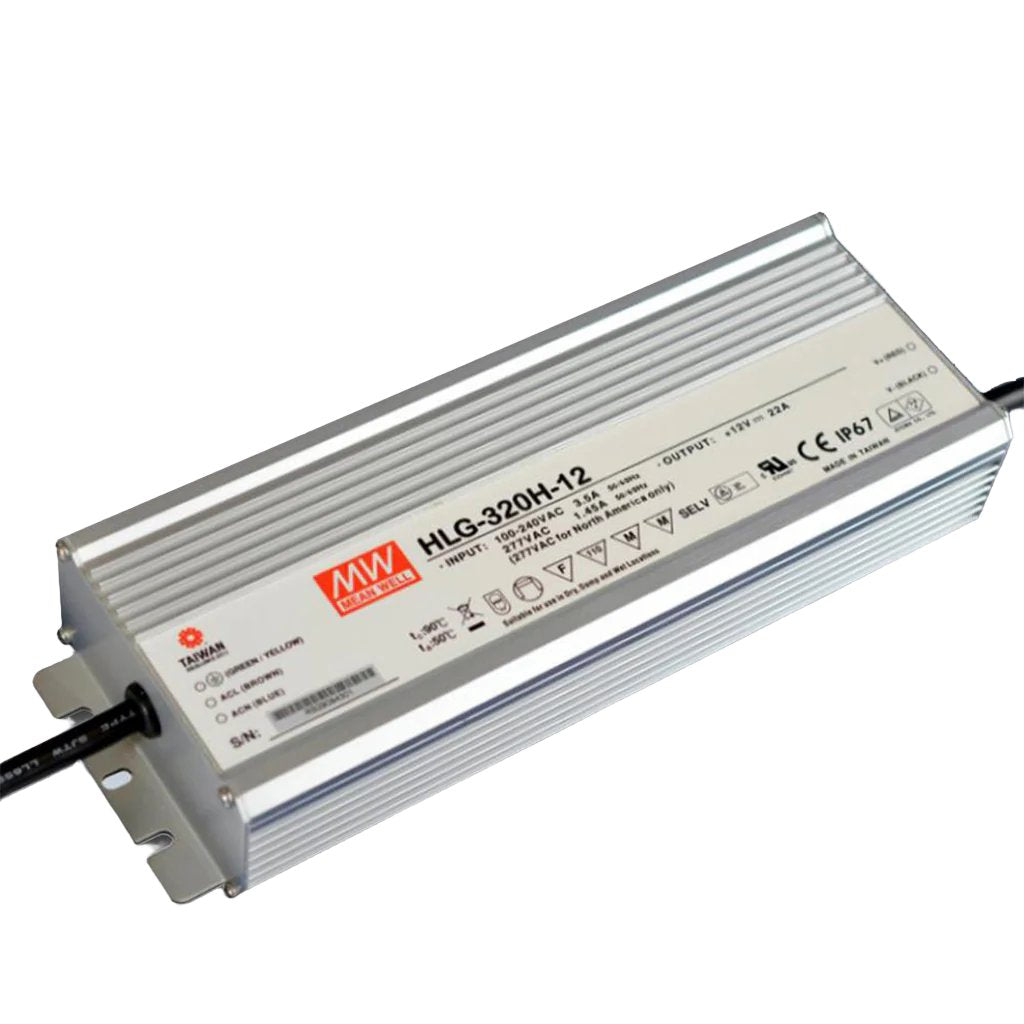

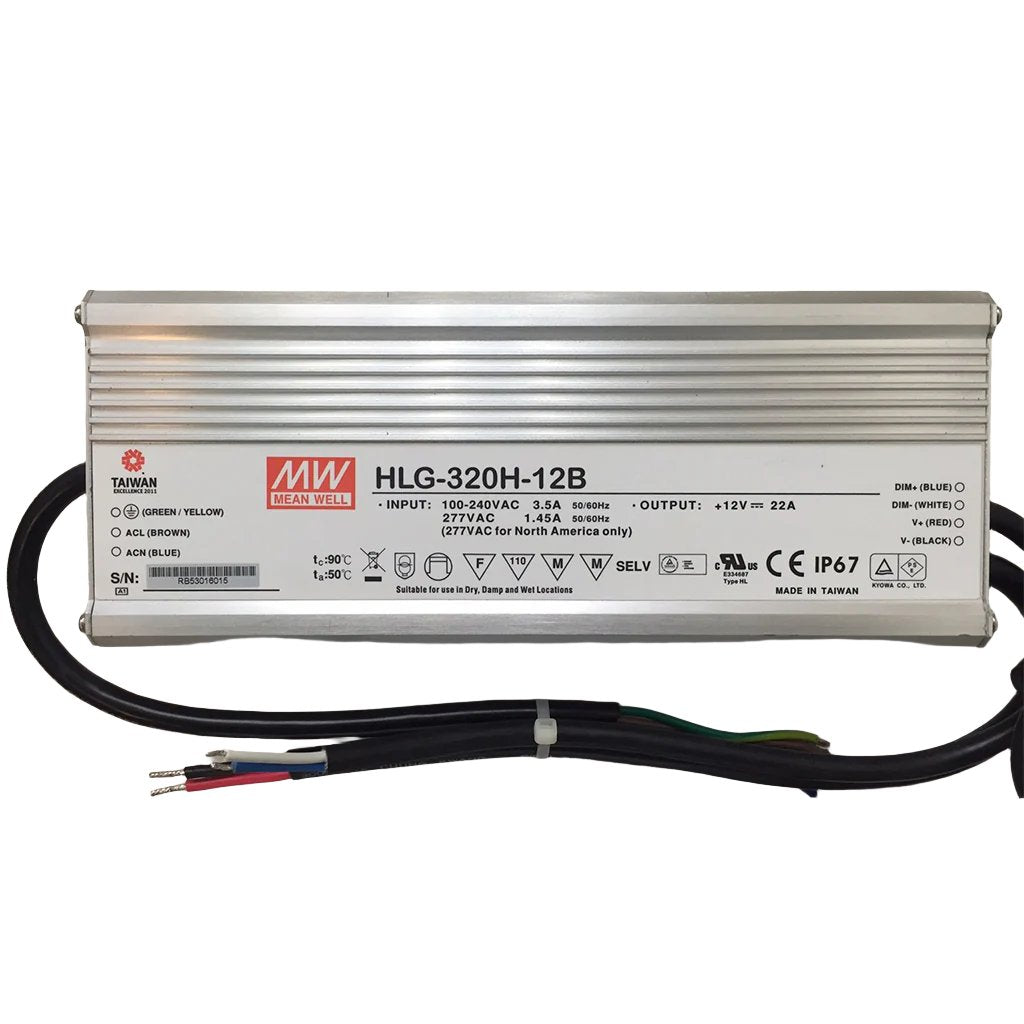

12V Mean Well Power Supply HLG-320H-12

Your electronic devices will need this HLG-320H-12 AC to DC power supply from Mean-Well USA, Inc. to convert alternating currents into useful direct currents to operate.  It has a voltage of 12 V and maximum output power of 264 W.  This part's single output can handle a current up to 22 A.  This part has a minimum operating temperature of -40 °C and a maximum of 60 °C.

Specifications

  • EU RoHS Compliant
  • Type Constant Current
  • Input/Output Type AC/DC
  • Number of Outputs 1
  • Output Voltage Range (VDC) 6 to 12
  • Maximum Output Current (mA) 22000
  • Output Power (W) 264
  • Input Voltage Range 90VAC to 305VAC|127VDC to 431VDC
  • Power Factor Correction 0.98
  • Efficiency (%) 91.5(Typ)
  • Termination Style Lead Wire
  • IP67 Rated
  • Warranty 7Year
  • Operating Temp: -40°C ~ 60°C
  • Product Weight (g) 1880
  • Mounting Screw
  • Package Height (mm) 43.8
  • Package Length (mm) 252
  • Package Width (mm) 90
