HLG-120H-24

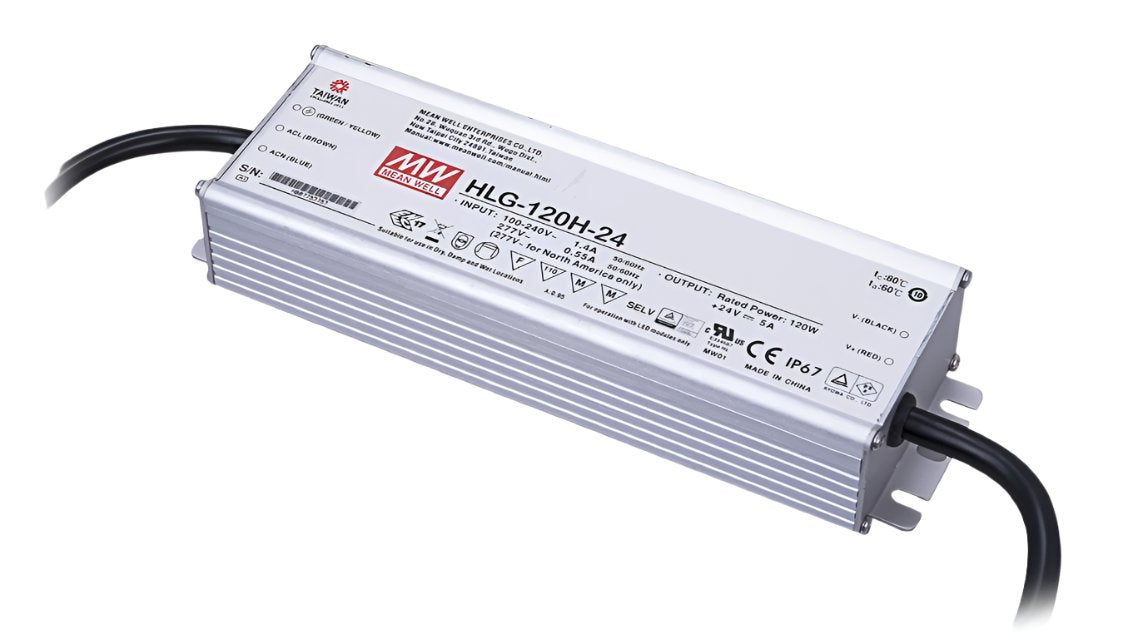

24V Mean Well Power Supply HLG-120H-24

Your electronic devices will need this HLG-120H-24 AC to DC power supply from Mean-Well USA, Inc. to convert alternating currents into useful direct currents to operate.  It has a voltage of 24 V and maximum output power of 120 W.  This part's single output can handle a current up to 5 A.  This part has a temperature range of -30 °C to 70 °C.

  • EU RoHS Compliant
  • Type Constant Current|Constant Voltage
  • Input/Output Type AC/DC
  • Number of Outputs 1
  • Output Voltage Range (VDC) 12 to 24
  • Maximum Output Current (mA) 5000
  • Output Power (W) 120
  • Input Voltage Range 90VAC to 305VAC|127VDC to 431VDC
  • Dimming 1-10V/PWM
  • Power Factor Correction 0.98(Min)
  • Efficiency (%) 93(Typ)
  • Termination Style Lead Wire
  • IP67 Rated
  • Warranty 7 Year
  • Operating Temp: -40°C ~ 80°C
  • Product Weight (g) 1120
  • Mounting Screw
  • Package Height (mm) 38.8
  • Package Length (mm) 220
  • Package Width (mm) 68

For more information please visit the link below:

http://meanwellusa.com/productPdf.aspx?i=309#1
