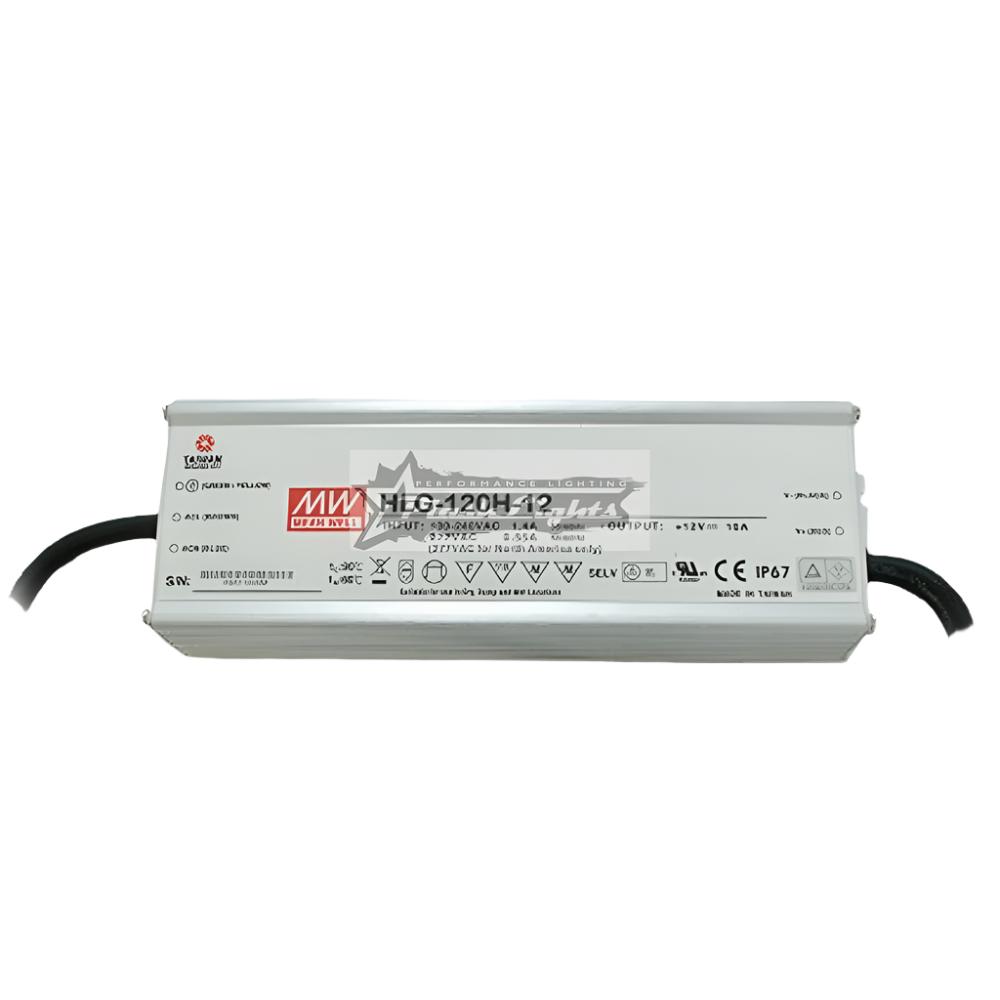

12V Mean Well Power Supply HLG-120H-12

HLG-120H-12

Size Guide

Collections: Power Supplies

Type: Electrical

  • Ensure optimal performance of your electronic device with the use of this HLG-120H-12 AC to DC power supply from Mean-Well USA, Inc.  It has a voltage of 12 V and maximum output power of 120 W.  This part's single output can handle a current up to 10 A.  This part has a temperature range of -30 °C to 70 °C.

    • EU RoHS Compliant
    • Type Constant Current | Constant Voltage
    • Input/Output Type AC/DC
    • Number of Outputs 1
    • Output Voltage Range (VDC) 6 to 12
    • Maximum Output Current (mA) 10000
    • Output Power (W) 120
    • Input Voltage Range 90VAC to 305VAC | 127VDC to 431VDC
    • Dimming 1-10V/PWM
    • Power Factor Correction 0.98(Min)
    • Efficiency (%) 92 (Typ)
    • Termination Style Lead Wire
    • IP65 or IP67 Rated
    • Warranty 7 Years
    • Operating Temp: -30°C ~ 70°C
    • Product Weight (g) 1120
    • Mounting Screw
    • Package Height (mm) 38.8
    • Package Length (mm) 220
    • Package Width (mm) 68

      For more information please see the link below:

      http://meanwellusa.com/productPdf.aspx?i=309#1
