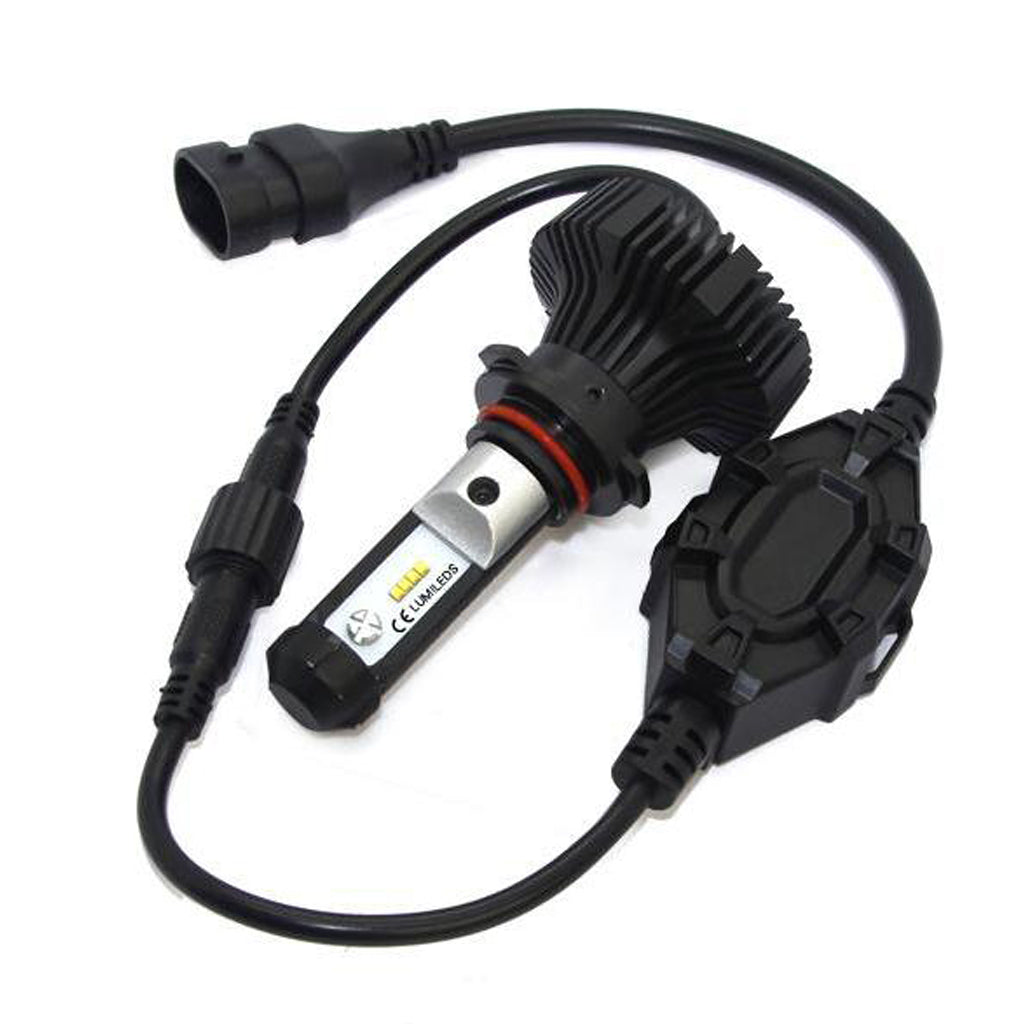

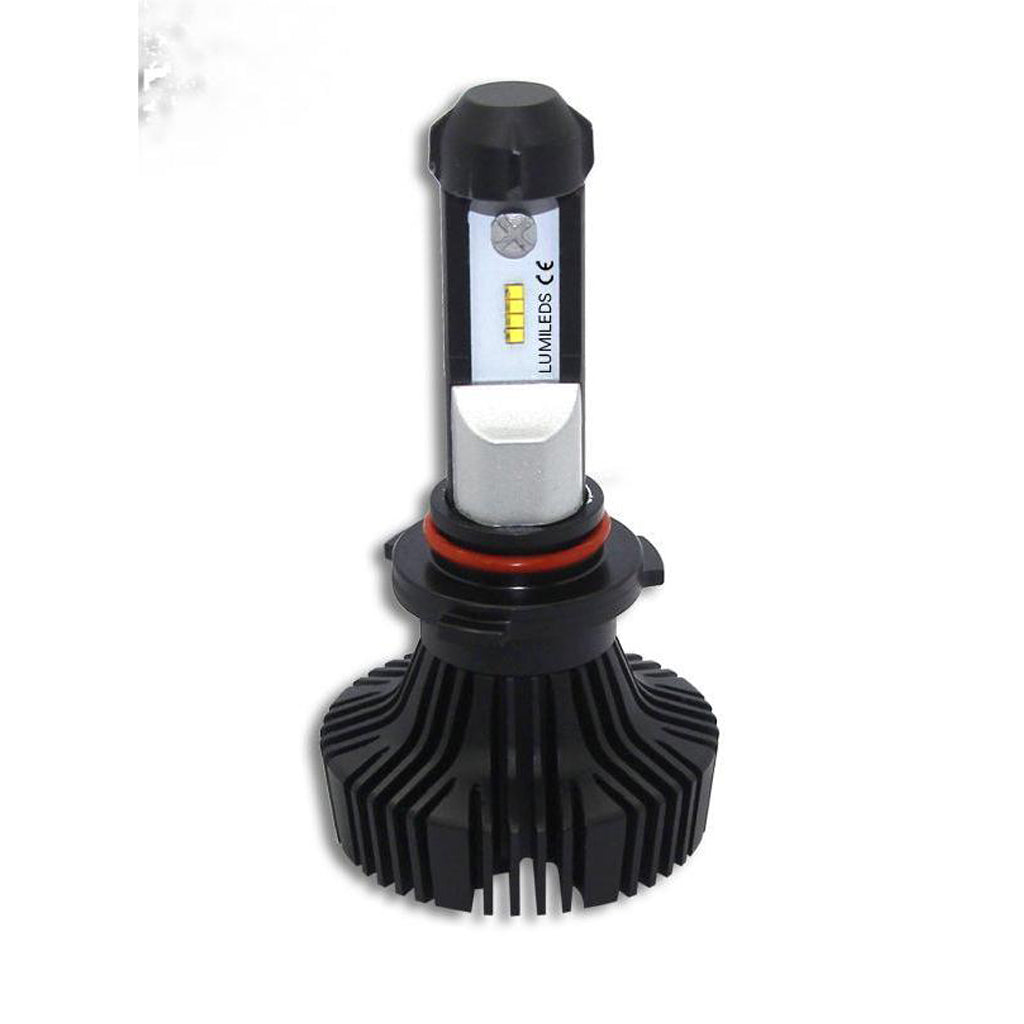

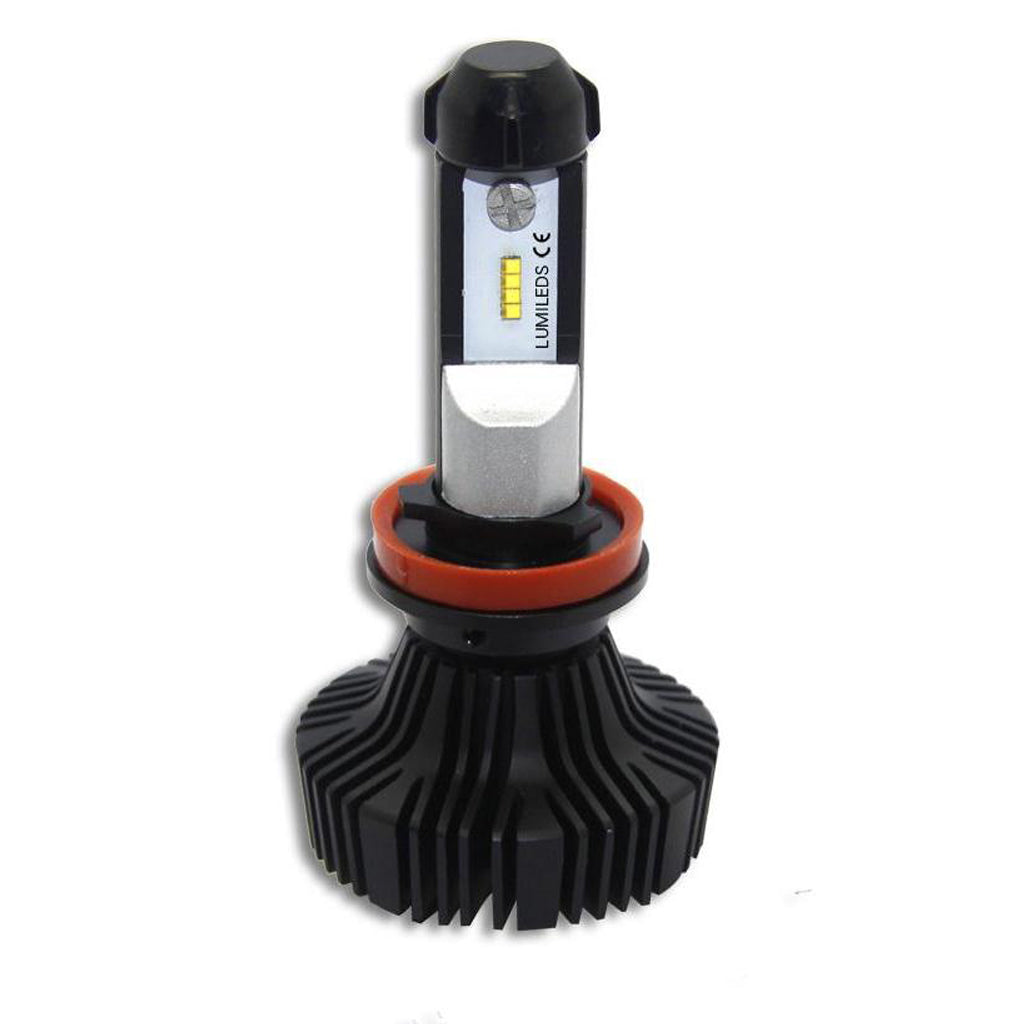

9004 - 30W Fanless LED Headlight Conversion Kit

3 items left

We introduce the future of LED headlights... Fanless!  Built for the rugged off-road environment that we all enjoy so much, these lights are made for the all terrain vehicles of tomorrow.  By using an oversized aviation aluminum heatsink, we were able to operate this light in ambient temperatures up to 180°F while eliminating the need for a fan.  With the extremely high quality Philips Chip and a simple fanless design, you are assured to be provided the best quality and most dependable replacement headlight bulb available.

  • Power: 30W
  • Light Source: 8 PCS Philips LUMILEDS Luxeon ZES Chips (Single Beam); 16 PCS Philips LUMILEDS Luxeon ZES Chips (Dual Beam)
  • Lumens: Low/Single Beam: 4,500LM per bulb or 9,000LM total ; Dual/Low & High Beam: 6,000LM per bulb or 12,000LM total
  • Voltage: 9 ~ 32VDC
  • Light Color: 6000K (pure white)
  • Housing Material: Aviation Aluminum
  • Operating Temperature: -80°F ~ +176°F
  • Fanless Thermostatic System
  • Canbus Ready
  • 360° Adjustable Beam Pattern
  • Great for Open Style Reflectors (not recommended for projectors)
  • Set Screw on Base for Easy Adjustability
  • Easy Plug in Play Installation with Waterproof Connectors
  • Lifespan: 30,000 Hours
  • DOT Compliant - 50 State Legal
  • CE & RoHS Certified
  • PlashLights Lifetime Warranty

Kit Includes:

  • (2) LED Headlights with Canbus Drivers
  • Installation Instructions
  • Allen Wrench for Set Screw Adjustments
  • (4) Zip Ties

*Perfect for your ATV, UTV, Rock Crawler, Dune Buggy, Sand Rail, Snow Mobile, 4 X 4, JEEP, Military Vehicle, or whatever other off-road vehicle you may have.*

Disclaimer: For Off-Road use only.  These lights  fail to conform with Federal Motor Vehicle Safety (FMVSS) Standard No. 108 “Lamps, Reflective Devices, and Associated Equipment.” The bulbs exceed limitations on luminous flux set forth in the standard and may cause increased or excessive glare for oncoming drivers.

Model 9004 also fits: H3
