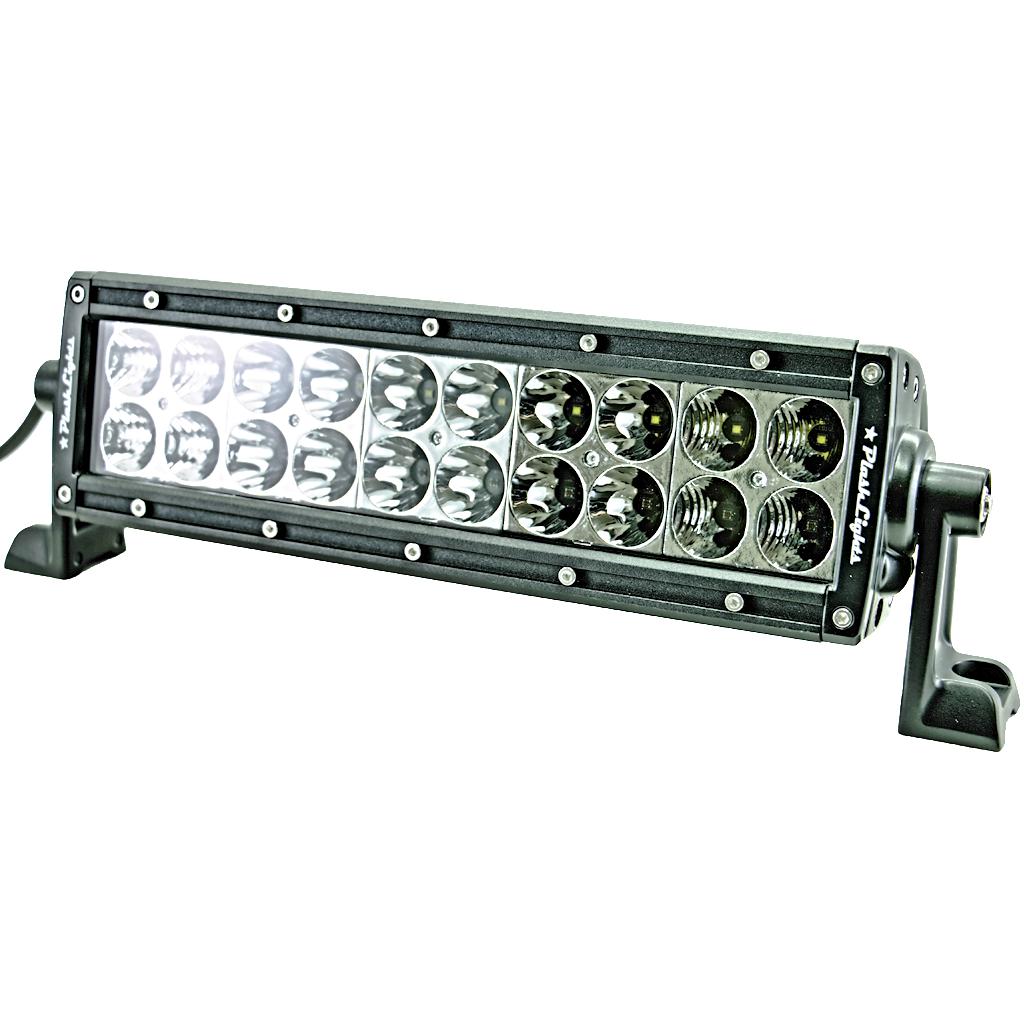

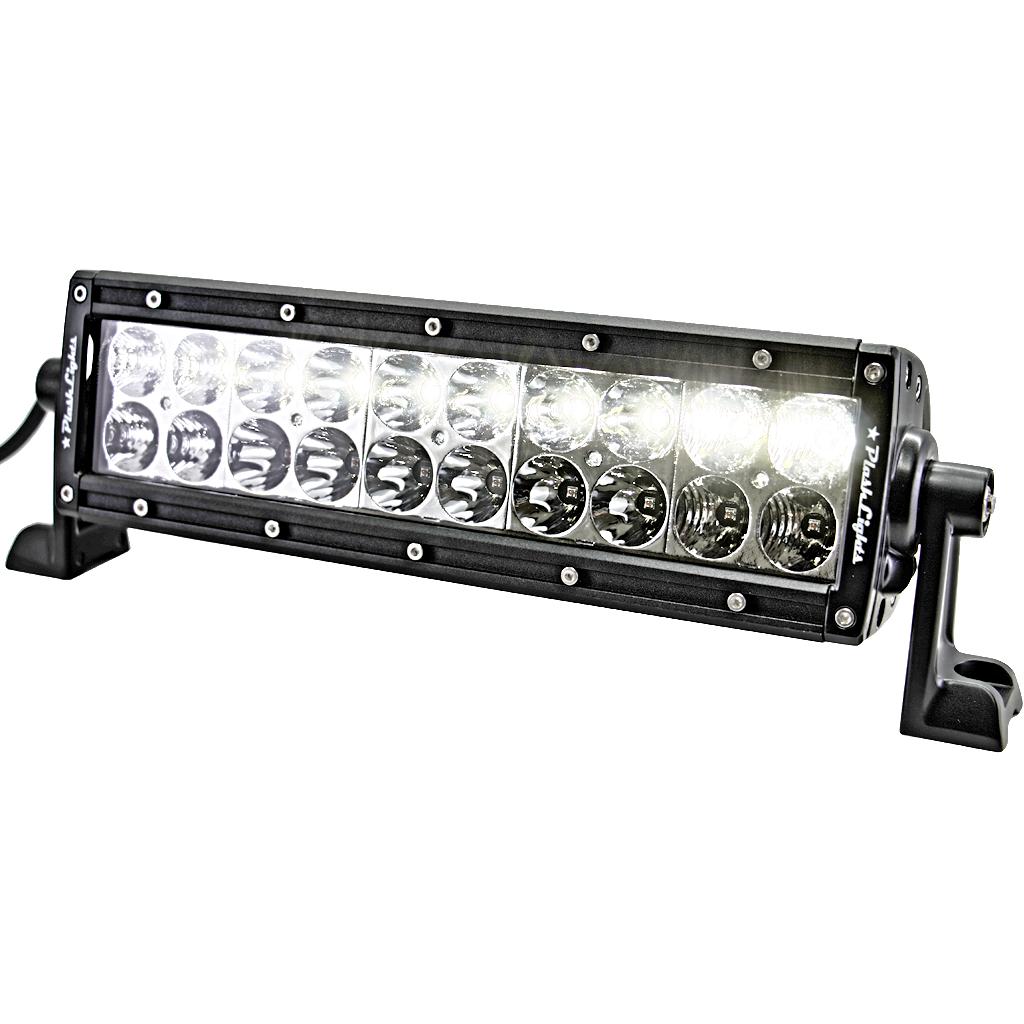

20" MX-Series LED Light Bar - Red/White

MX-20-R/W

Size Guide

  • The MX-Series is the perfect combination of red & white light. Great for the hunting, fog, sand, or any other hazards that may cause the white light to have too much reflection. A 20″ dual row, off-road light bar with the option to have on the white light, the red light, or both. Consists of one row of 3W Olson Osram® White lights and one row of 3W CREE® Red lights.

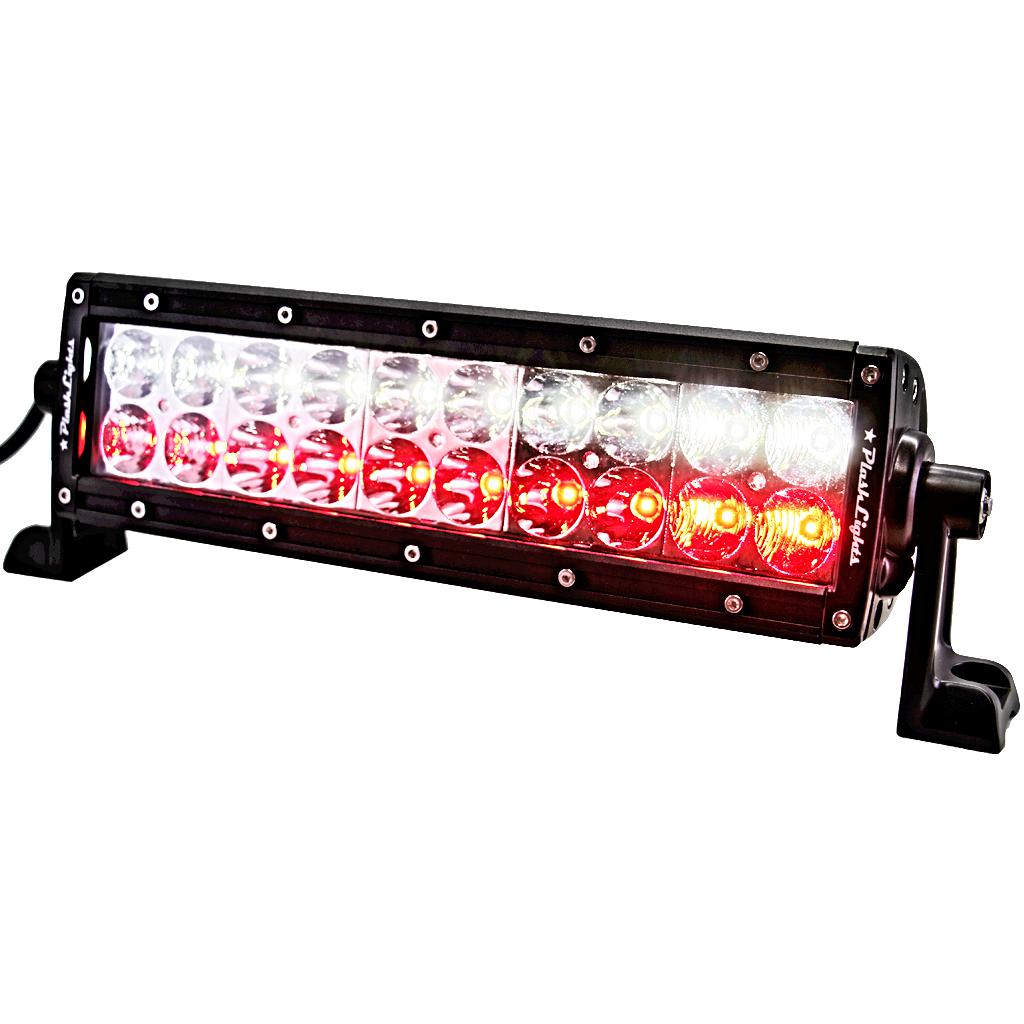

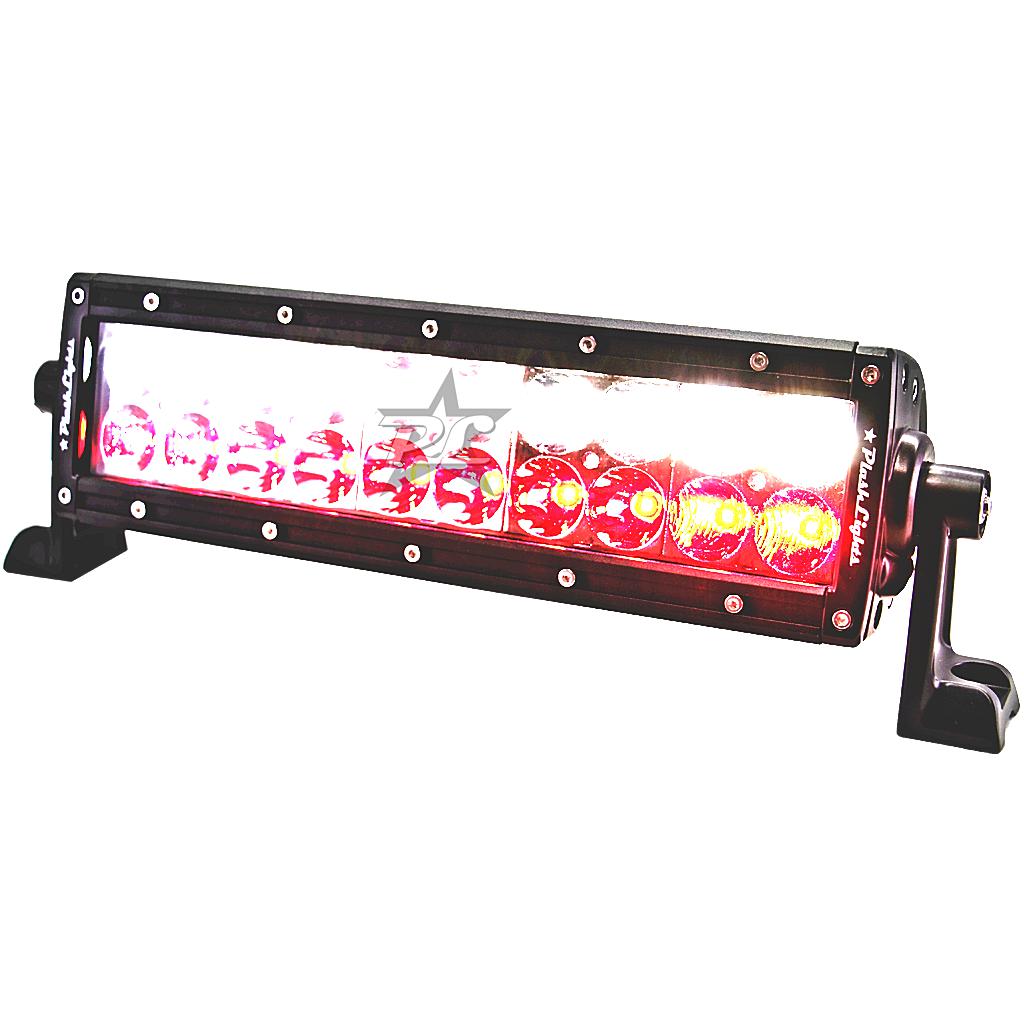

    • Unique ability to have Red and White light integrated into one light bar
    • 40PCS @ 120W
    • 3W CREE® Red + 3W OSRAM® White
    • 6,450~9,600LM @ 8.2 A @ 13.5V
    • 9-36V DC

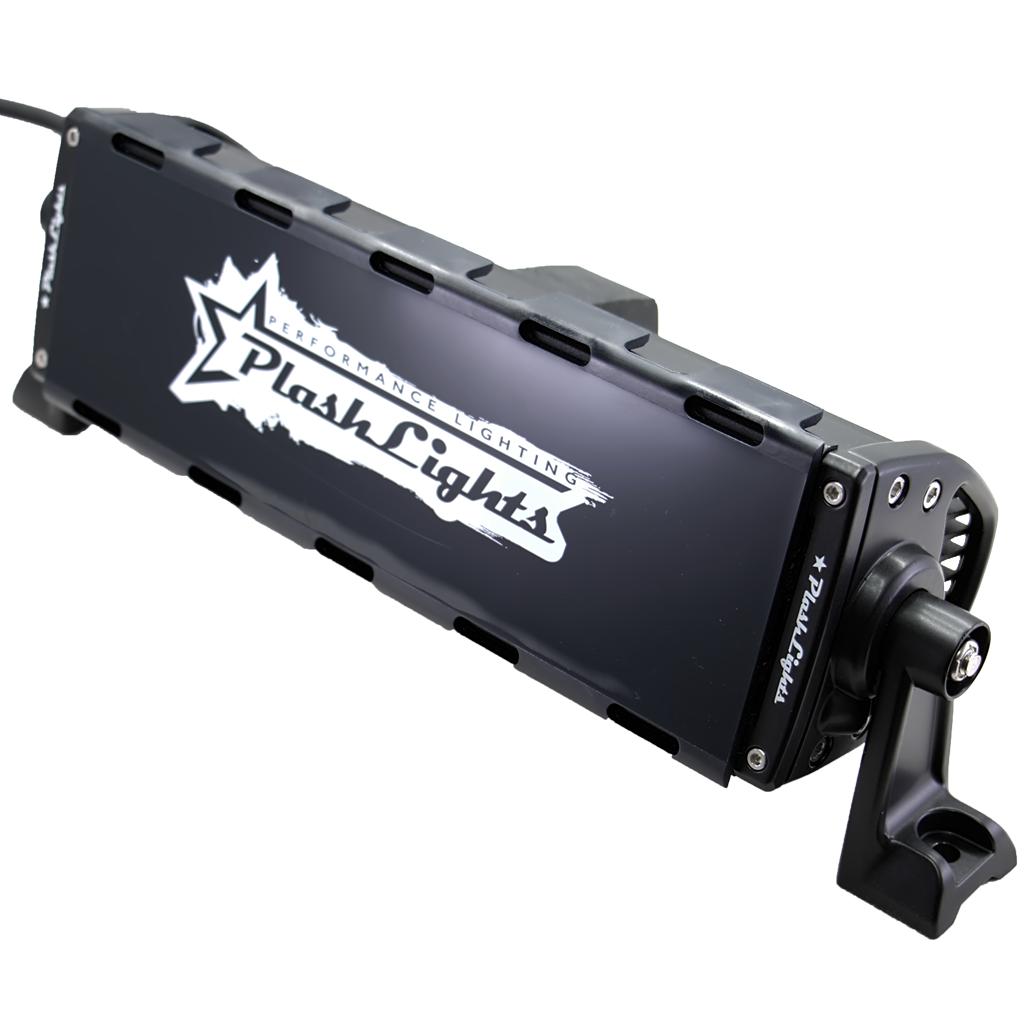

    • Extruded aluminum body with DuPont® coating
    • Durable scratch resistant high impact polycarbonate lens
    • 96% optical/reflector efficiency
    • IP69K rated to protect against moisture / contaminant ingress
    • Genuine Gore® waterproof membrane with mechanical seal
    • Deutsch® waterproof connectors
    • Over / Under and reverse polarity protection
    • Protected against electromagnetic (EMC) and radio frequency interference (RFI)
    • LED Lifespan: 50,000 hours or 5 years of continuous use
    • Operating Temp: -40° F ~ +145°F
    • Dual-oversized heat sink
    • Low power consumption
    • 316 Stainless Steel hardware and fasteners with nylon locking nuts
    • Cast Aluminum mounting brackets 8.6g vibration compliant
    • CE and RoHS certified

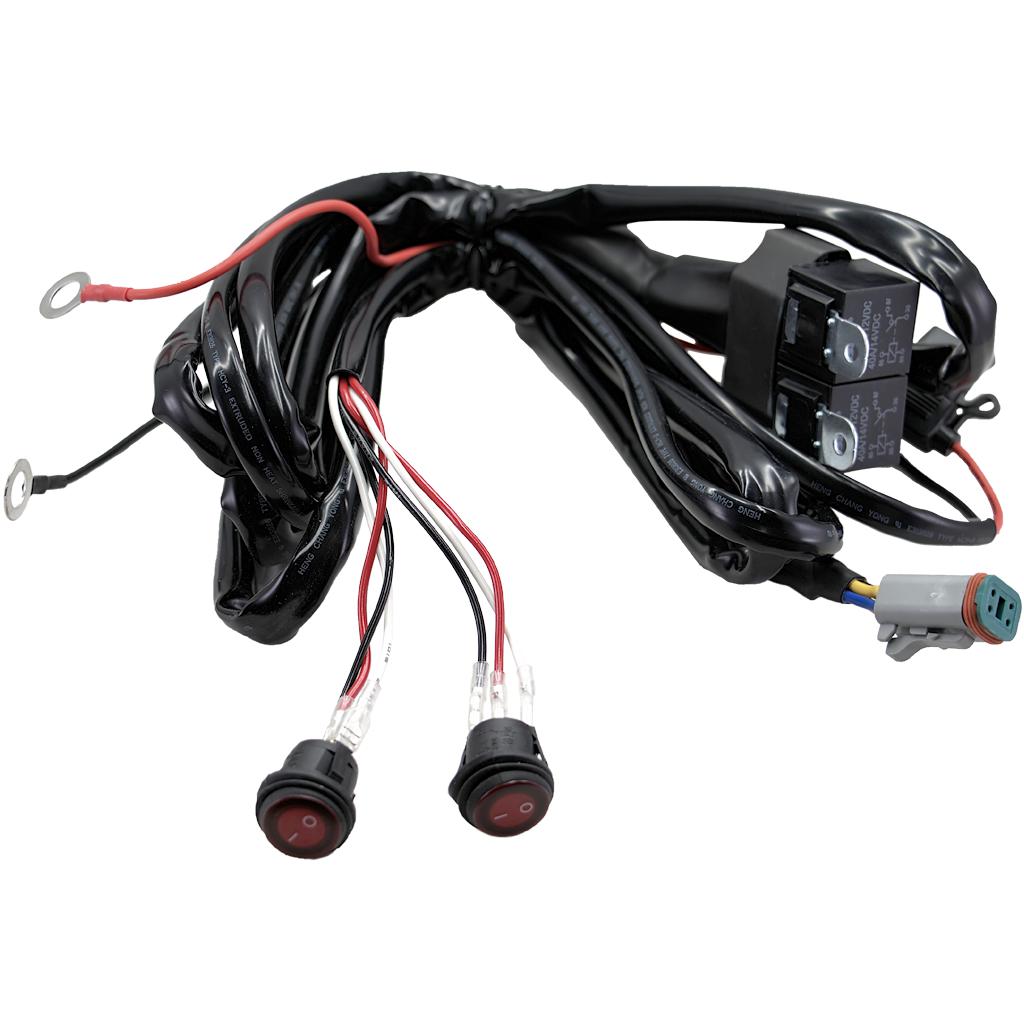

    • Includes Wiring Harness with dual switches(waterproof in-line fuse, relay, waterproof rocker switch that illuminates red, waterproof connector, and battery terminals)
    • Includes one (1) Noise reducer per every 10" of bar length
    • Lens Cover Sold Separately
  • no specs
  • no dimensions
  • no video loaded
