PL22S-L-12VB

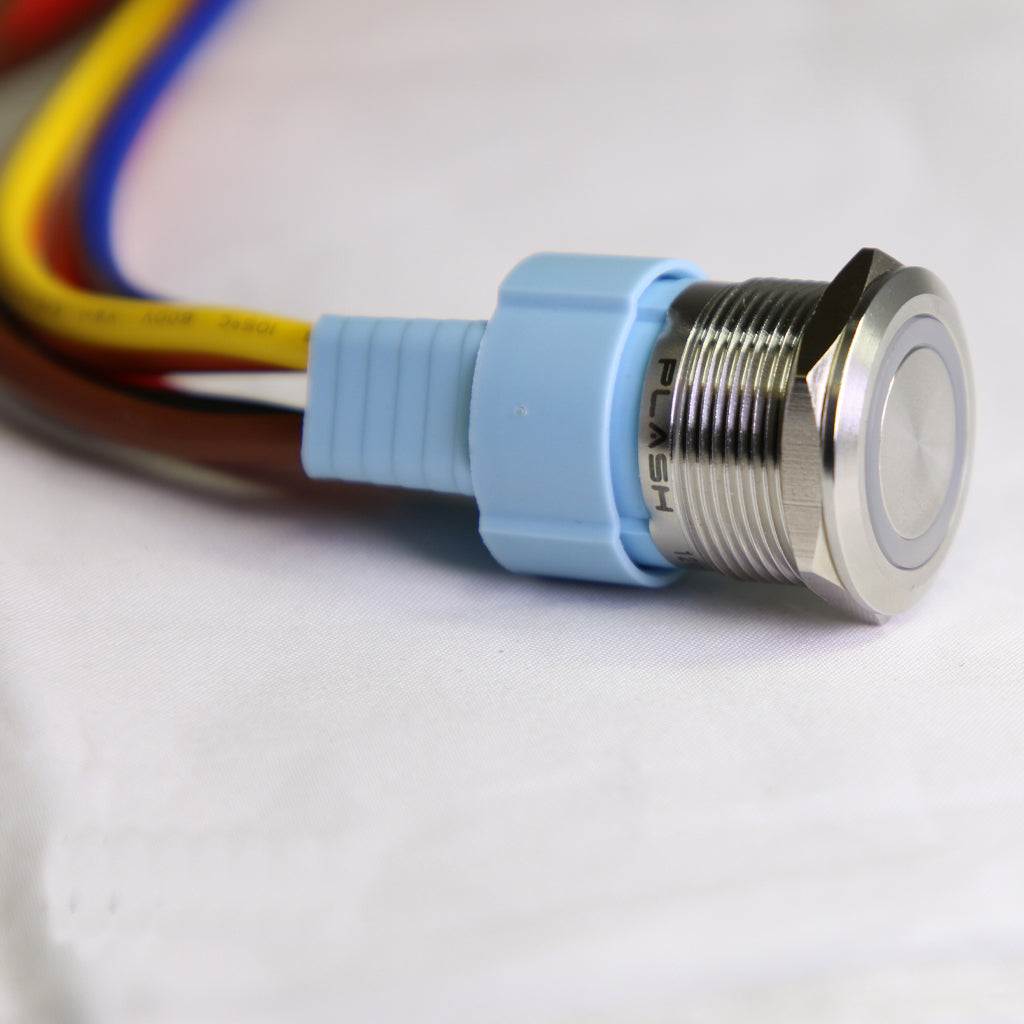

Push Button Illuminated Switch - Blue

Color
Blue
Style





FEATURES

  • Stainless Steel Housing - No Rust
  • Rated for 15A
  • 22mm (7/8") Diameter Button - Easier to Push Compared to 19mm
  • 25mm (1") Outside Diameter

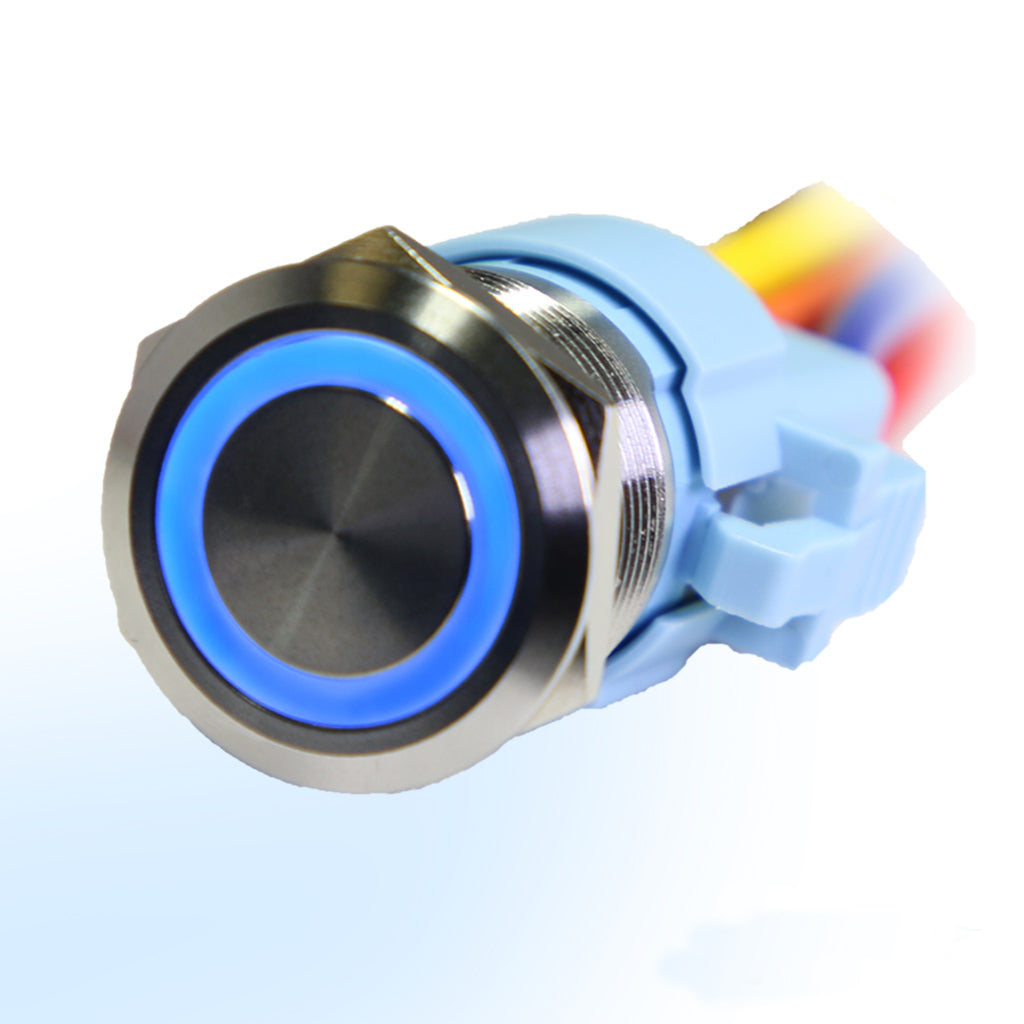

  • LED Backlit Ring in your Choice of Colors
  • IP67 Rated - Waterproof
  • Silky Smooth Movement
  • Rated for 500,000 Cycles
  • Removable Clip for Wiring Harness

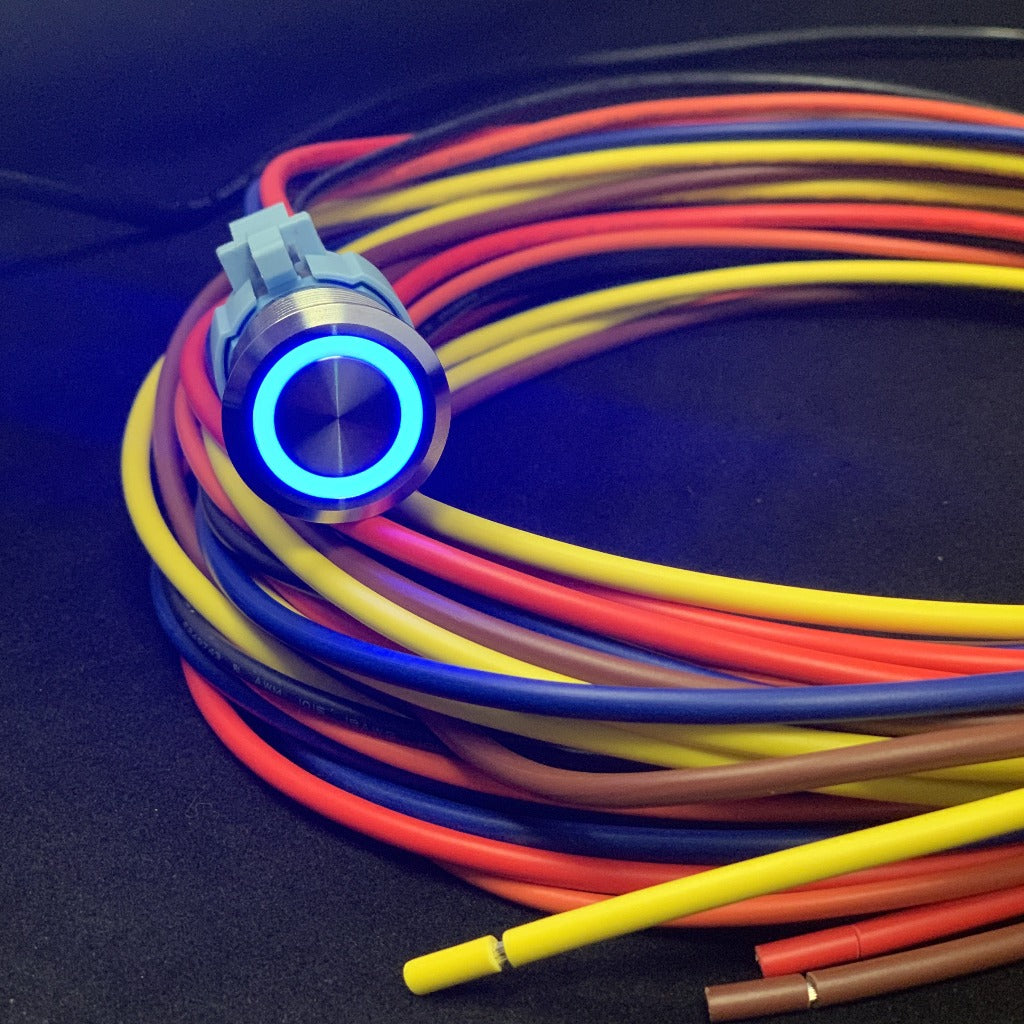

  • 9ft of 14AWG Copper Tinned Wiring for a Simple Installation
  • Fits a 7/8" Hole
  • Plash Lifetime Warranty

WIRING

  • BLACK wire = Ground  (for LED in Switch)
  • ORANGE wire = Positive (for LED in Switch)
  • BLUE wire = Normally Closed input
  • YELLOW wire = Normally Closed output
  • RED wire = Normally Open input
  • BROWN wire = Normally Open output



 There are many options when it comes to wiring configuration such as do you want the LED ring to be on all the time, only when the navigation lights are on, or only when the switch is pressed?  Depending on how you wire the switch you can decide which function suits you best.
